PTZ HDCVI 2 MP zoom 4x
257,42 € IVA inclusa
Speed dome HDCVI Starlight da interno/esterno IP66 antivandalo IK10, sensore CMOS Starvis progressivo 1/2.8", risoluzione 2 MP a 25fps, rotazione PAN 0°~355°/s / TILT 0°~90°, zoom ottico 4x (2.7~11 mm ƒ1.6~3.0) / 16x digitale, luminosità 0.005 lux ƒ1.6, porta BNC, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 8 tour, 2/3D NR, alimentazione 12 Vdc <9 W
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/3 s–1/30,000 s |
| Scanning System | Progressive 0.005lux@F1.6 (Color, 30 IRE); |
| Min. Illumination | 0.0005lux@F1.6 (B/W, 30 IRE) |
| Lens | |
| Focal Length | 2.7 mm–11 mm |
| Max. Aperture | F1.6–F3.0 H: 99.1°–31.9° |
| Field of View | V: 53.4°–18.0° D: 117.7°–36.6° |
| Optical Zoom | 4× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 1 m (3.28 ft) Detect Observe Recognize Identify 151.7 m 59.9 m 30.3 m 15.2 m (497.70 ft) (196.52 ft) (99.41 ft) (49.87 ft) *DORI (Detect, Observe, Recognize, Identify) is |
| DORI Distance | a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Ptz | |
| Pan/Tilt Range | between 0° and 10°, the device case will block part of the image) Pan: 0.1°–100°/s |
| Manual Control Speed | Tilt: 0.1°–60°/s Pan: 100°/s; |
| Preset Speed | Tilt: 60°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour DH-SD |
| PTZ Protocol | Pelco-P/D (Auto recognition) |
| Video | |
| Resolution | 576/704 × 480) |
| Video Frame Rate | 1080p (25/30 fps); 720p (25/30/50/60 fps) |
| Day/Night | Yes |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes Auto/Indoor/Outdoor/Tracking/Manual/Sodium |
| White Balance | lamp/Natural/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D NR; 3D NR |
| Defog | |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| S/N Ratio | ≥50 dB |
| Function | |
| CVI Product Output Mode | TVI;CVI;CVBS;AHD (CVBS is only used for debugging) |
| Port | |
| Analog Output | 1 channel (CVBS/CVI output, BNC) |
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) |
| Power | |
| Power Supply | 12VDC,1.5 A ± 10% Basic: 7 W |
| Power Consumption | Max.: 9 W (PTZ) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH) IP66; IK10; TVS 6000V lightning proof; surge |
| Protection | protection; voltage transient protection |
| Structure | |
| Product Dimensions | 88.9 mm × Φ122.0 mm (3.50" × Φ4.80") |
| Net Weight | 0.6 kg (1.32 lb) |
| Gross Weight | 0.65 kg (1.43 lb) |
| Ordering Information | |
| Type | Model Description DH-SD22204DB-GC 2MP 4x Starlight PTZ HDCVI Camera, PAL DH-SD22204DBN-GC 2MP 4x Starlight PTZ HDCVI Camera, NTSC |
| Accessories | |
| (Optional) | PFA150 Pole Mount Bracket PFB203W Wall Mount Bracket PFA152-E Pole Mount Bracket PFA120 Junction Box PFA151 Corner Mount Bracket |
| Optional: | |
| Wall Mount Bracket | Junction Box Pole Mount Bracket PFA151 Corner Mount Bracket The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
Informazioni addizionali
Prodotti Correlati
Bullet HDCVI 2 MP 2.7~13.5 mm IR mic
164,09 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW2241TU-Z-A-S2
Bullet HDCVI 2 MP 3.6 mm IR
37,82 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW1200C-S6
Bullet HDCVI 2 MP 3.6 mm IR mic
117,12 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW2241TU-A-S2
Bullet HDCVI 5 MP 3.6 mm IR
56,12 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW1500C-S2

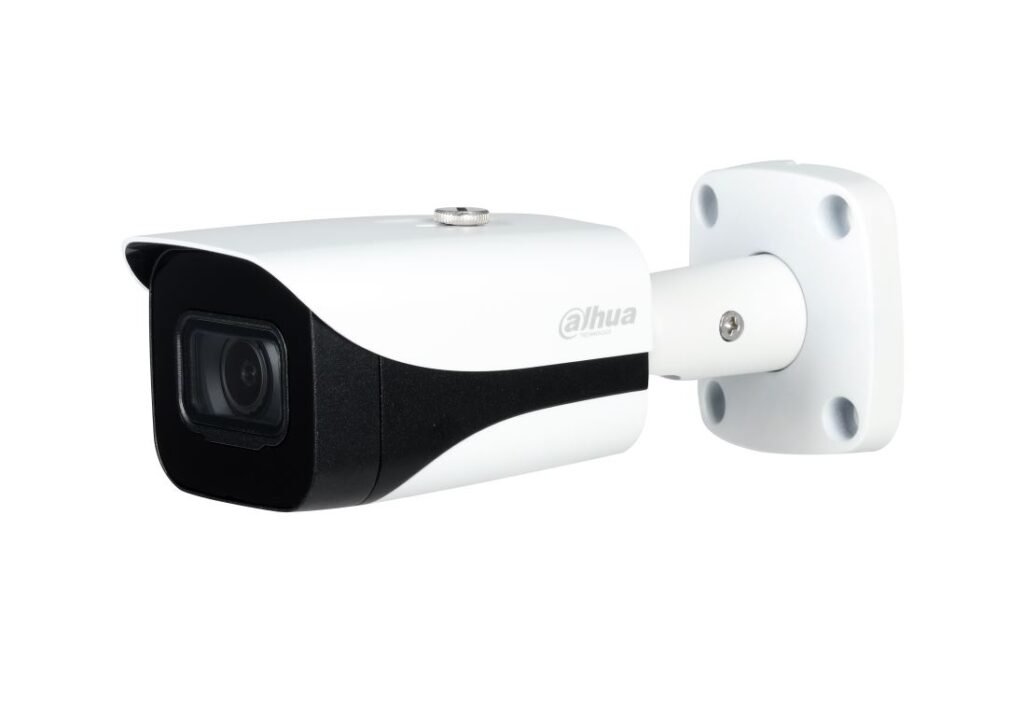

Bullet HDCVI 5 MP 3.6 mm IR mic
