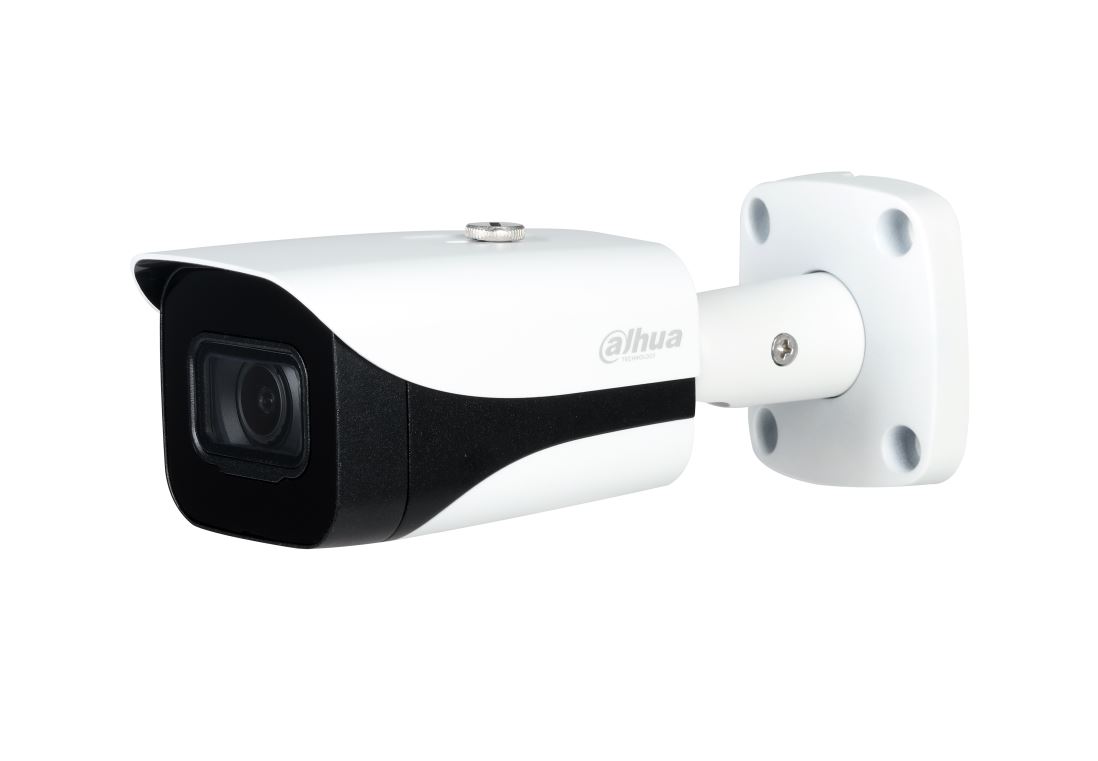

Bullet HDCVI 5 MP 3.6 mm IR mic

Name: Bullet HDCVI 5 MP 3.6 mm IR mic
Brand: Dahua
SKU: HAC-HFW2501E-A-S2
Price: 108.58 EUR
Availability: BackOrder

Dahua

COD: HAC-HFW2501E-A-S2 Categorie: Telecamere analogiche, Videosorveglianza Tag: 5MP

108,58 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 217,16 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet HDCVI Starlight da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica fissa 3.6 mm, luminosità 0.001 lux ƒ1.6 (0 con IR On), portata IR fino a 40 m, 2/3D NR, WDR 120 dB, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), 1 ingresso audio con microfono integrato, OSD, alimentazione 12 Vdc <5.9 W

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Camera
Image Sensor	1/2.7 inch CMOS
Max. Resolution	2880 (H) × 1620 (V)
Pixel	5 MP
Scanning System	Progressive PAL: 1/3 s–1/100,000 s
Electronic Shutter Speed	NTSC: 1/4 s–1/100,000 s
S/N Ratio	> 65 dB
Min. Illumination	0.001 Lux/F1.6, 30IRE, 0Lux IR on
Illumination Distance	40 m (131.2 ft)
Illuminator On/Off Control	Auto / Manual
Illuminator Number	2 Pan: 0°–360°
Pan/Tilt/Rotation Range	Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	F1.6 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) 3.6 mm: 109° × 92° × 48°
Field of View	(diagonal × horizontal × vertical) 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical)
Iris Type	Fixed iris 2.8 mm: 0.9 m (3.0 ft)
Close Focus Distance	3.6 mm: 1.6 m (5.2 ft) 6 mm: 3.1 m (10.2 ft)
Dori
Distance	(393.7 ft) (157.5 ft) (78.7 ft) (39.4 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool.
Video
Frame Rate	TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 ×
Resolution	1080); 960H (960 × 576/960 × 480)
Day/Night	Auto switch by ICR
BLC	BLC/HLC/WDR/HLC-Pro
WDR	120 dB
White Balance	Auto / Manual
Gain Control	Auto / Manual
Noise Reduction	2D NR/3D NR
Smart IR	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 areas, rectangle)
Port
Audio Interface	One channel built-in mic Video output choices of CVI/TVI/AHD/CVBS by one
Video Output	BNC port (DIP Switch)
Power
Power Supply	DC 12V ±30%
Power Consumption	Max 5.9W (12V DC, IR on)
Environment
Operating Temperature	condensation) –40°C to +60°C (–40°F to +140°F); < 95% (non-
Storage Temperature	condensation )
Protection Grade	IP67
Structure
Casing	Plastic: Sunshield cover+lower decorative cover
Camera Dimensions	179.9 mm × 70 mm × 70 mm (7.08" × 2.75" × 2.75")
Net Weight	0.42 kg (0.93 lb)
Gross Weight	0.56 kg (1.23 lb)
Ordering Information
Type	Part Number DH-HAC-HFW2501EP-A 2.8mm DH-HAC-HFW2501EN-A 2.8mm DH-HAC-HFW2501EP-A 3.6mm 5MP Starlight HDCVI IR Bullet Camera
5MP Camera	DH-HAC-HFW2501EN-A 3.6mm DH-HAC-HFW2501EP-A 6mm DH-HAC-HFW2501EN-A 6mm IP66 Junction Box PFA121 Pole Mount Bracket PFA152-E Corner Mount PFA151
Optional:
IP66 Junction Box	Pole Mount Bracket Corner Mount PFM800-4K PFM321D PFM904
Passive HDCVI Balun	12V 1A Power Adapter Integrated Mount Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
