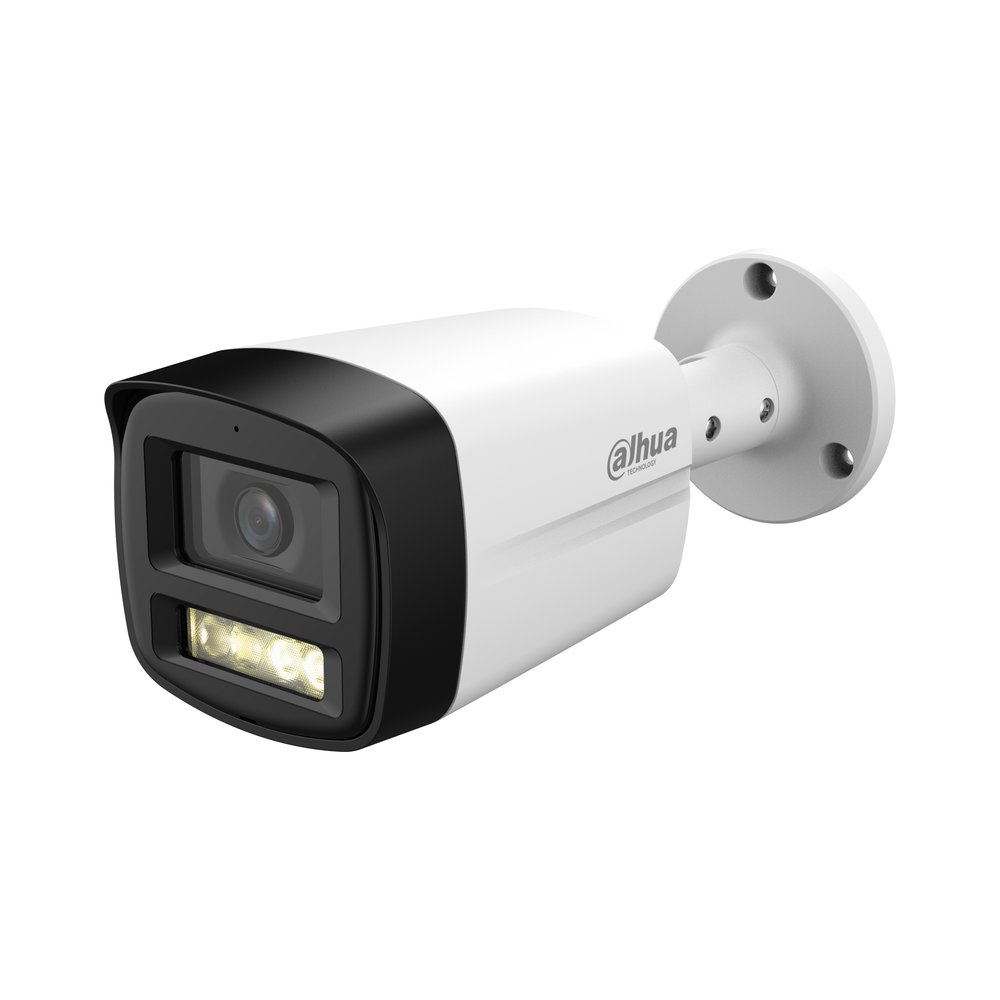

Bullet HDCVI Smart Dual Light 5 MP 3.6 mm IR/LED mic

Name: Bullet HDCVI Smart Dual Light 5 MP 3.6 mm IR/LED mic
Brand: Dahua
SKU: HAC-HFW1500TLM-IL-A-S3
Price: 71.98 EUR
Availability: BackOrder

Dahua

COD: HAC-HFW1500TLM-IL-A-S3 Categorie: Telecamere analogiche, Videosorveglianza Tag: 5MP

71,98 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 143,96 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet HDCVI Smart Dual Light (necessario XVR5000-I3/XVR5000-4KL-I3 con apposito FW) da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica fissa M12 3.6 mm ƒ1.6, luminosità 0.05 lux, portata IR/warm light fino a 40 m, 3D NR, HDCVI/CVBS/AHD/TVI commutabili su porta BNC (DIP switch), microfono integrato, Super Adapt, alimentazione 12 Vdc <6.5 W

Camera
Image Sensor	5 MP CMOS
Max. Resolution	2880 (H) × 1620 (V)
Scanning System	Progressive PAL: 1/25 s–1/100,000 s
Electronic Shutter Speed	NTSC: 1/30 s–1/100,000 s 0.01 lux@F1.6 (Color, 30 IRE)
Min. Illumination	0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>65 dB IR: 40 m (131.23 ft)
Illumination Distance	Warm Light: 40 m (131.23 ft)
Illuminator On/Off Control	Auto
Illuminator Number	4 (Multi-core light) Pan: 0°–360°
Angle Adjustment	Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Auto Focus	No
Lens Mount	M12
Focal Length	3.6 mm; 2.8 mm
Max. Aperture	F1.6 2.8 mm: H: 113.3°; V: 62.1°; D: 134.3°
Field of View	3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°
Iris Control	Fixed 2.8 mm: 0.8 m (2.62 ft)
Close Focus Distance	3.6 mm: 1.3 m (4.27 ft)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Video
Video Frame Rate	AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps
Resolution	1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; WDR
WDR	DWDR
White Balance	Auto;Area white balance
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	Yes
Illumination Mode	Smart IR&WL; WL Mode; IR Mode
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Audio
Built-in Mic	Yes
Camera Audio	CVI; TVI
Port
Video Output	port (DIP Switch)
Power
Power Supply	12 VDC (±30%)
Power Consumption	Max 6.5 W (12 VDC, WLED on)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	<95% (RH), non-condensing
Protection	IP67
Anti-corrosion Level	Basic Protection
Structure
Casing Material	Metal front cover + plastic rear barrel + metal bracket 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3.00")
Product Dimensions	(L × W × H)
Net Weight	0.34 kg (0.75 lb)
Gross Weight	0.45 kg (0.99 lb)
Installation	Wall mount; ceiling mount; vertical pole mount
Ordering Information
Type	Model Description 5MP Smart Dual Light DH-HAC-HFW1500TLMN- HDCVI Fixed-focal Bullet IL-A Camera,NTSC
HDCVI CAMERA	5MP Smart Dual Light DH-HAC-HFW1500TLMP-IL- HDCVI Fixed-focal Bullet A Camera,PAL G3416GW G3/4" Water Joint DH-PFA151 Corner Mount Bracket DH-PFA130-E Water-proof Junction Box DH-PFA152-E Pole Mount Bracket DH-PFA134 Junction Box
Accessories (Optional)	1 Channel Passive HDCVI DH-PFM800-4K Balun DH-PFM321-EN DC12V1A power adapter DH-PFM320D-EN DC12V2A power adapter PFM904 Integrated Mount Tester
Optional:
DH-PFA130-E	DH-PFA134 DH-PFA151
Water-proof Junction Box	Junction Box Corner Mount Bracket
DH-PFA152-E	DH-PFM320D-EN DH-PFM321-EN
Pole Mount Bracket	DC12V2A power adapter DC12V1A power adapter
DH-PFM800-4K	G3416GW PFM904
1 Channel Passive HDCVI	G3/4" Water Joint Integrated Mount Tester Balun 2025 Dahua. All rights reserved. Design and speciﬁcatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail.
