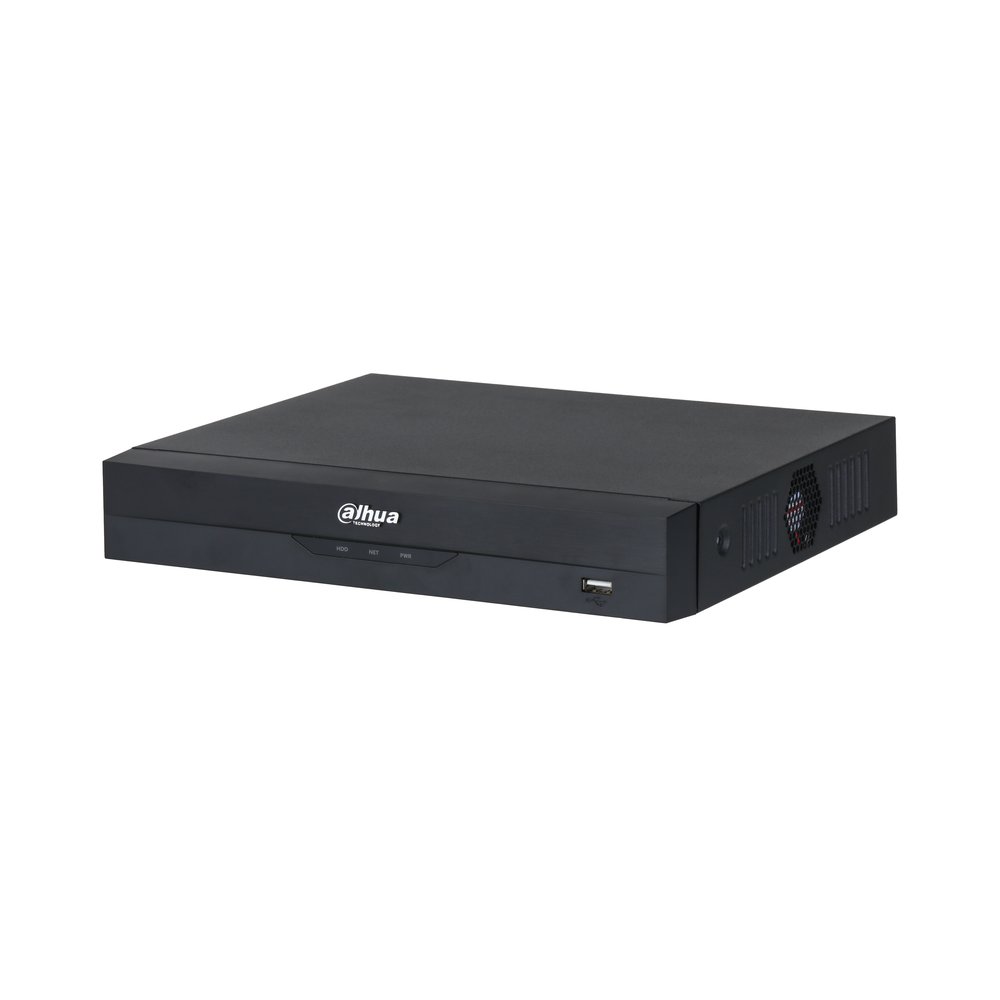

NVR 4 canali IP AI WizSense fino a 12 MP (recording), 1 canale a 8 MP/4 canali a 1080p (decoding, AI attiva), max. banda 80 Mbps, H.265+, 2 uscite video (1 VGA + 1 HDMI), 1 ingresso e 1 uscita audio, predisposto per montaggio di 1 disco SATA (fino a 10 TB), 2 porte USB 2.0, 1 porta LAN 100 Mbps + 4 porte PoE (<38 W), 1 canale protezione perimetrale, 1 canale face detection/recognition, 4 canali SMD Plus, Compact 1U, alimentazione 53 Vdc <10 W senza HDD
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| Ai | |
| AI by Camera | SMD Plus Face detection; face recognition; perimeter protection; |
| AI by Device | SMD Plus |
| Perimeter Protection | |
| AI by Device(Number of | 1 |
| AI by Camera (Number of | 4 |
| Face Detection | |
| Face Attributes | (8); mouth mask; beard |
| Performance of AI by | 1 (up to 12 face images/second) |
| Performance of AI by | 4 |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 5,000 images |
| Performance of AI by | 1 (up to 4 face images/second) |
| Performance of AI by | 4 |
| Smd Plus | |
| SMD Plus by Device | 4 4-channel SMD Plus (AI by camera): Detects tripwire and |
| SMD Plus by Camera | intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away |
| Video | |
| Access Channel | 4 channels 80 Mbps for access, 80 Mbps for storage and 60 Mbps |
| Network Bandwidth | for forwarding. |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel |
| Decoding Capability | 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1, 4 views |
| Third Party Camera Access | Onvif |
| Network | |
| Network Protocol | (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (profile T; profile S; profile G); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 4 channels Manual record; alarm recordings; motion detection |
| Record Mode | recordings; scheduled recordings |
| Storage | |
| Backup | USB device 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame |
| Playback Function | 2. Full screen; backup (vide clip/file); partially zom in; audio on/off |
| Alarm | |
| General Alarm | IPC alarm Camera offline; storage error; disk full; IP conflict; MAC |
| Anomaly Alarm | conflict; login lock; cyber security exception Face detection; face recognition; perimeter protection |
| Intelligent Alarm | (intrusion and tripwire); IVS; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| External Port | |
| HDD | varies with environment temperature |
| USB | 1 × front USB2.0; 1 × back USB2.0 |
| HDMI | 1 (max. resolution: 4K) |
| VGA | 1 |
| Network | |
| PoE | 4 × PoE ports , 10/100 Mbps |
| RCA Input | 1 |
| RCA Output | 1 |
| General Parameter | |
| Power Supply | 53 V DC, 1.13 A Total output of NVR is ≤ 10W (without HDD)Total output |
| Power Consumption | power of PoE is 38W, the maximum output power of a single port is 25.5W |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross weight | 1.86 kg (4.10 lb) 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") |
| Product Dimensions | (W × L × H) 117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") |
| Package Dimensions | (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10%–93% |
| Storage Humidity | 30%–85% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| Installation | Desktop FCC:47 CFR FCC Part15,SubpartB,Class A CE-EMC:EN 55032:2015,Class A;EN IEC 61000- 3-2:2019;EN 61000-3-3:2013+A1:2019;EN |
| Ordering Information | |
| Type | Model Description |
| 4 Channel | DHI-NVR2104HS- 4 Channel Compact 1U 4PoE P-I2 WizSense Network Video Recorder |
| WizSense NVR | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Panels | |
| Power Input | 2 PoE Ports |
| Network Port | 4 VGA Port |
| AUDIO OUT, RCA Connector | 6 AUDIO IN, RCA Connector |
| HDMI Port | 8 USB Port |
