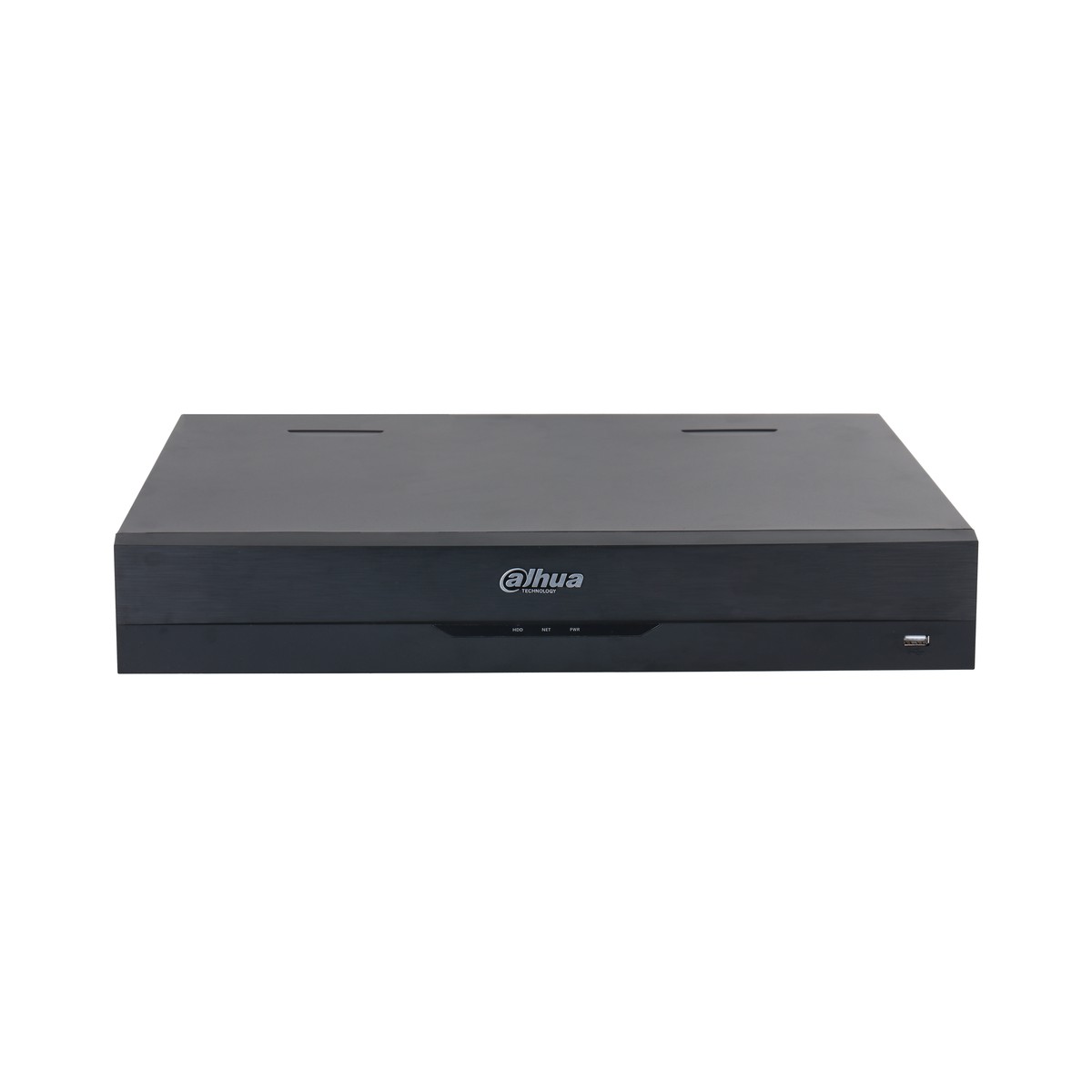

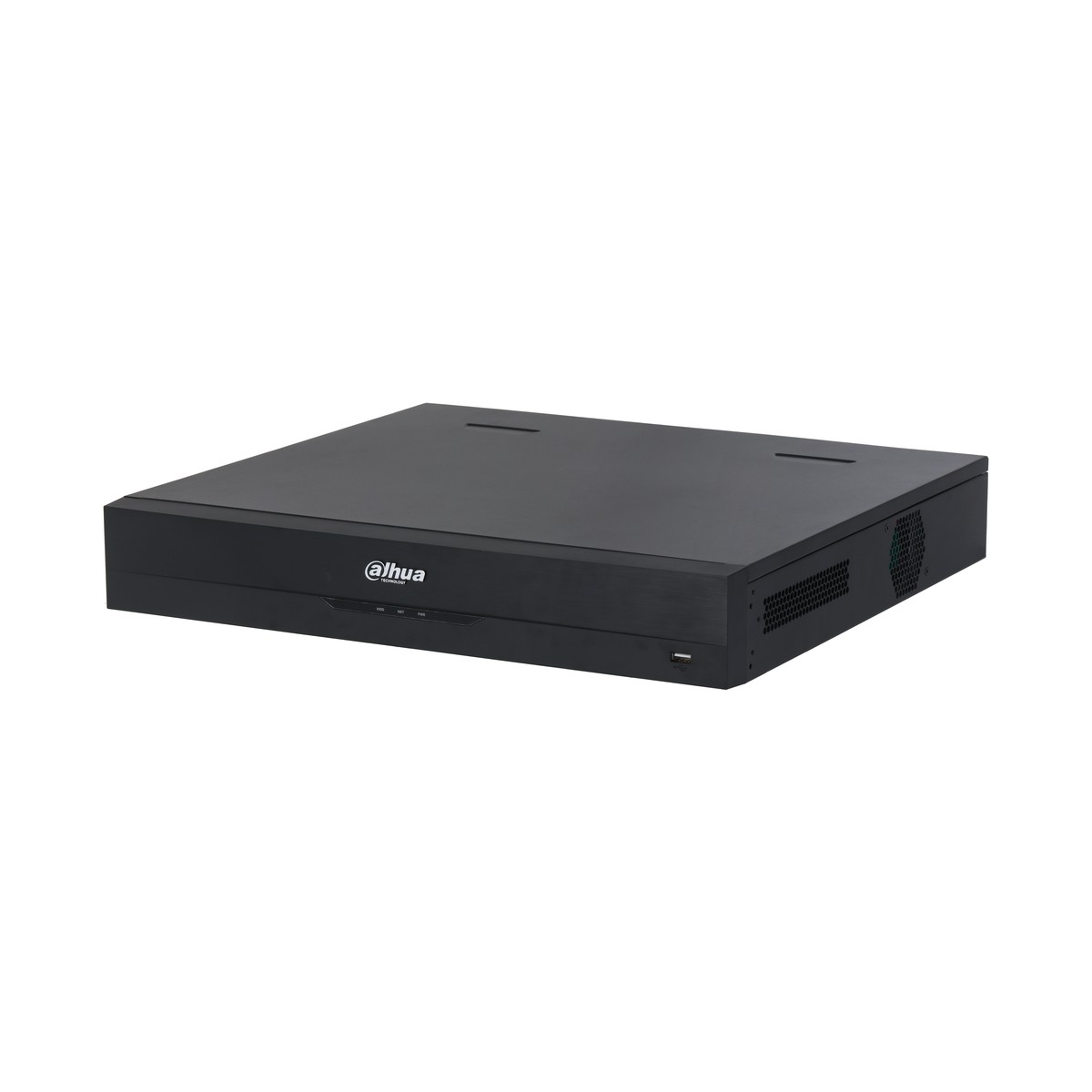

NVR IP AI WizSense 16 canali fino a 32 MP, max. banda 384 Mbps in ingresso, registrazione e uscita, decodifica 32 canali 1080p o 16 canali 4 MP a 30 fps, Smart H.265+/H.265/Smart H.264+/H.264/MJPEG, predisposto per montaggio di 4 dischi, 16 porte PoE, espansione della memoria via iSCSI, AI by Recorder: 2 canali face detection/recognition (20 database, 20.000 immagini), 4 canali protezione perimetrale, 8 canali SMD Plus, AcuPick fino a 16 canali, AI by Camera: riconoscimento facciale, protezione perimetrale, SMD, metadati, ANPR, heat map, conteggio persone, rilevamento DPI, EPTZ, 1.5U
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| Ai | |
| AI by Recorder | SMD Plus Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd |
| AI by Camera | distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection |
| by Camera (Number of | Max. 16-channel, 1 combined event per channel/s |
| Perimeter Protection | |
| by Recorder (Number of | 4 channels, 10 IVS rules for each channel |
| AI by Camera (Number of | All channels (16 targets/s) |
| Face Detection | |
| Face Attributes | beard |
| Performance of AI by | 2 channels (up to 12 face images/s each channel) |
| Performance of AI by | 16 channels |
| Face Recognition | |
| Face Database Capacity | credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition | 1. 16-channel FD (by camera) + FR (by recorder), image |
| Performance of AI by | stream: 16 face images/s |
| Recorder (Number of | 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Performance of AI by | 16 channels |
| Smd Plus | |
| SMD Plus by Recorder | vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (32 targets/s) |
| Video Metadata | |
| AI by Camera (Number of | 8 channels |
| Channels) | Top color, top type, bottom color, bottom type, hat, bag, |
| Human Attributes | age, gender and umbrella License plate, plate color, vehicle body, vehicle model, |
| Motor Vehicle Attributes | vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| Non-motor Vehicle | Vehicle model, vehicle color, number of persons, |
| Attributes | helmet. |
| ANPR by Camera (Number | All channels (8 targets/s) |
| License Plate Database | 1. Create up to 20,000 plate numbers. |
| Capacity | 2. Blocklist and allowlist |
| Audio And Video | |
| Access Channel | 16 channels AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing |
| Network Bandwidth | AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 |
| Resolution | MP;1080p;720p;960p;D1;CIF;QCIF AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps |
| Decoding Capability | AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps 2 VGA, 2 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Output | Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 Main screen: 1/4/8/9/16 |
| Multi-screen Display | Sub screen: 1/4/8/9/16 ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; |
| Third-party Camera Access | Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network Instant playback, general playback, event playback, |
| Playback Mode | target video, video clip, tag playback, smart playback (face and motion detection) |
| Storage | |
| Disk Group | YES |
| Alarm | |
| General Alarm | external alarm; network alarm; scene changing; PIR alarm; thermal alarm Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP |
| Anomaly Alarm | conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non- motor vehicles); SMD Plus; stereo analysis; crowd |
| Intelligent Alarm | distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection Record; snapshot (panoramic); local alarm output; IPC |
| Alarm Linkage | external alarm output; audio; buzzer; log, preset; email |

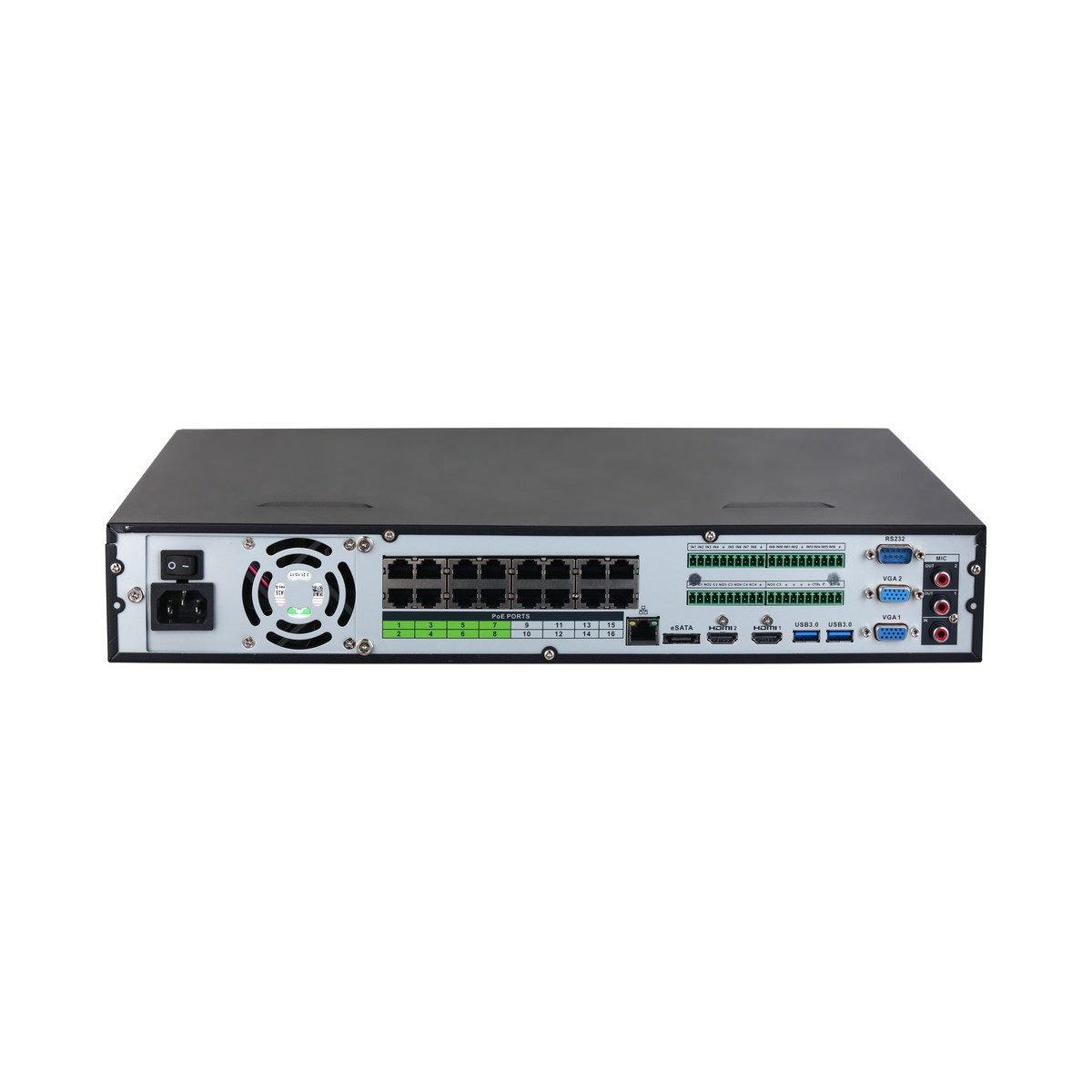

| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels ） |
| Alarm Output | 6 channels (1-channel 12 V 1 A output 4 SATA ports, each disk can contain up to 20 |
| Disk Interface | TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 (half-duplex serial communication) |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports |
| PoE Port | support ePoE |
| General | |
| Power Supply | 100–240 VAC, 50-60 Hz |
| Power Consumption | output power of PoE is 150 W, the maximum output power of a single port is 25.5 W |
| Net Weight | 4.82 kg (10.63 lb) |
| Gross Weight | 7.09 kg (15.63 lb) 440.0 mm × 415.1 mm × 70.0 mm (17.32" × 16.34" × |
| Product Dimensions | 2.76") (W × D × H) 530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × |
| Packaging Dimensions | 8.27")(W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; |
| Ordering Information | |
| Type | Model Description Dahua 16CH 4HDD |
| NETWORK VIDEO | DHI-NVR5416-16P-EI 1.5U NETWORK VIDEO |
| RECORDER | RECORDER DHI-ARB1606 Alarm Box 4 Bay eSATA Extension ESS1504C |
| Accessories (Optional) | Cabinet DHI-RailBracket60/L- Dahua Server Cabinet Rail Shaped Bracket |
| Accessories | |
| Optional: | DHI-RailBracket60/L- ESS1504C |
| DHI-ARB1606 | Shaped 4 Bay eSATA Extension |
| Alarm Box | Dahua Server Cabinet Rail Cabinet Bracket |
