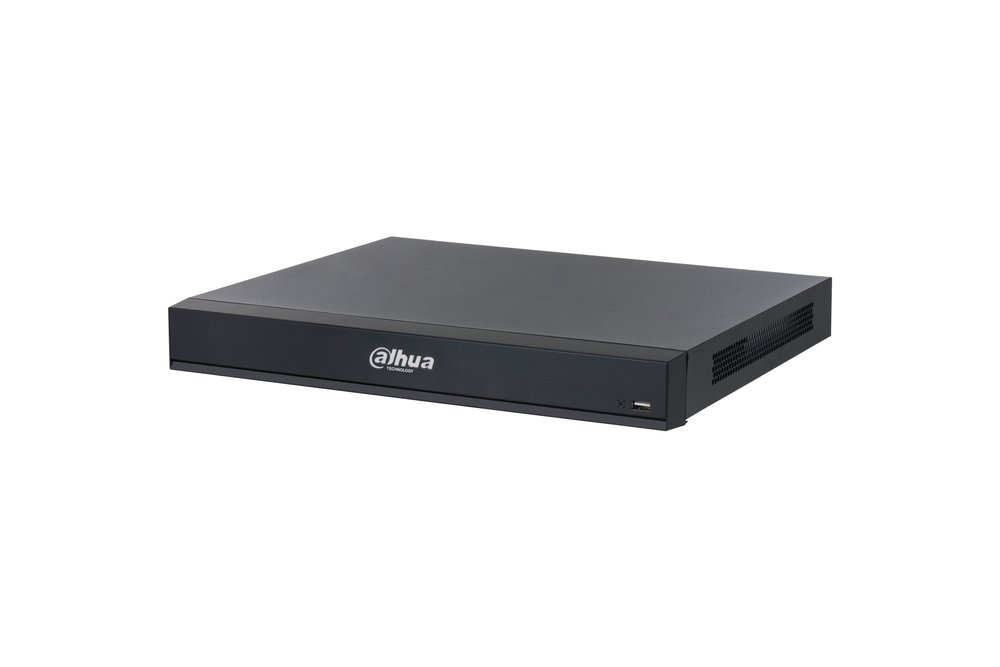

NVR AI WizMind Xinghan 16 canali IP fino a 32 MP (encoding), 8 canali 8 MP (decoding), massima banda 512 Mbps, 2 uscite video (1 VGA + 1 HDMI), 4 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita (RCA) audio, predisposto per montaggio di 2 Hard Disk SATA (fino a 20 TB cad.), 2 porte USB (2.0 e 3.0), 1 porta RS232, 1 porta RS485, 1 porta LAN 10/100/1000 Mbps + 16 porte PoE 10/100 Mbps (<200 W), 16 canali protezione perimetrale, 16 canali face detection/recognition, 16 canali SMD Plus, 16 canali metadati video, 16 canali AcuPick (con telecamera AcuPick), 1U, alimentazione 100~240 Vac <15 W (senza HDD)
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| Ai | |
| AI by Recorder | perimeter protection; SMD; AcuPick; WizSeek; Texted- Defined Alarming Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); |
| AI by Camera | perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick |
| AcuPick Performance of | ： Xinghan Large-Scale AI Models enabled 8 channels |
| AI by Recorder (1080P) | ： Xinghan Large-Scale AI Models disabled 16 channels |
| AI by Camera (1080P) | All channels (36 targets/s) |
| Wizseek | |
| Performance | 2. Compatible with normal cameras, after enabling AcuPick by NVR, it can offer up to 8-channel WizSeek. 3. Modeling capability: up to 432,000 targets per day |
| Search Language | English; TradChinese; Korean |
| Perimeter Protection | |
| by Recorder (Number of | 16 channels, 10 IVS rules for each channel |
| AI by Camera (Number of | All channels (32 targets/s) |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection | ： Xinghan Large-Scale AI Models enabled 8 channels |
| Performance of AI by | (up to 12 face images/s each channel) ： |
| Recorder (Number of | Xinghan Large-Scale AI Models disabled 16 channels (up to 12 face images/s each channel) |
| Performance of AI by | All channels (32 targets/s) |
| Face Recognition | |
| Face Database Capacity | total capacity of 44 G. 16-channel FD (by camera) + FR (by recorder),image |
| Face Recognition | stream: 32 face images/s |
| Performance of AI by | ： Xinghan Large-Scale AI Models enabled 8-channel FD |
| Recorder (Number of | (by recorder) + FR (by recorder), video stream: 16 face |
| Channels) | images/s |
| Face Recognition | ： Xinghan Large-Scale AI Models disabled 16-channel |
| Performance of AI by | FD (by recorder) + FR (by recorder), video stream: 16 |
| Recorder (Number of | face images/s |
| Performance of AI by | All channels (32 targets/s) |
| Smd | |
| SMD Plus by Recorder | Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (64 targets/s) |
| Video Metadata | |
| Metadata Performance of | attributes extraction. |
| AI by Recorder (Number of | ： Xinghan Large-Scale AI Models disabled 16 channels, |
| Channels) | 23 attributes extraction. |
| AI by Camera (Number of | All channels (32 targets/s) |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non-motor Vehicle | 4 attributes |
| ANPR by Camera (Number | All channels (32 targets/s) |
| License Plate Database | 1. Create up to 20,000 plate numbers. |
| Capacity | 2. Blocklist and allowlist |
| Audio And Video | |
| Access Channel | 16 channels AI disabled: 512 Mbps incoming, 512 Mbps recording and 384 Mbps outgoing |
| Network Bandwidth | AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 |
| Resolution | MP;1080p;720p;960p;D1;CIF;QCIF AI disabled: 2-channel 32 MP@30 fps; 3-channel 24 MP@30 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps |
| Decoding Capability | AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 16-channel 1080p@30 fps 1 VGA, 1 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Output | HDMI: 7680×4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI and VGA Main screen: 1/4/8/9/16 |
| Multi-screen Display | Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; Firefox; IE |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | external alarm; network alarm; scene changing; PIR alarm; thermal alarm Error (no disk, disk error, low space, low quota space; abnormal disk health; network disconnection; IP |
| Anomaly Alarm | conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection Face detection; face recognition; video metadata |
| Intelligent Alarm | (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison Record; snapshot (panoramic); local alarm output; IPC |
| Alarm Linkage | external alarm output; audio; buzzer; log, preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels 2 SATA ports. Each disk can contain up to 20 |
| Disk Interface | TB. This limit varies depending on the environment temperature. |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1(10/100/1000 Mbps Ethernet port, RJ-45) 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports |
| PoE Port | support ePoE |
| General | |
| Power Supply | 100–240 VAC, 50/60Hz <15 W (without HDD) |
| Power Consumption | Total output power of PoE is 200 W, the maximum output power of a single port is 25.5 W |
| Net Weight | 2.72 kg (6.00 lb) |
| Gross Weight | 4.06 kg (8.95 lb) 375.0 mm × 327.4 mm × 53.0 mm (14.76" × 12.89" × |
| Product Dimensions | 2.09") (W × D × H) 449.0 mm × 421.0 mm × 170.0 mm (17.68" × 16.57" × |
| Packaging Dimensions | 6.69")(W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; |
| Ordering Information | |
| Type | Model Description 16CH 1U 16PoE 2HDDs |
| NETWORK VIDEO | DHI-NVR5216-16HP-XI/Pro WizMind Network Video |
| RECORDER | Recorder |
| Accessories (Optional) | DHI-ARB1606 Alarm Box |
