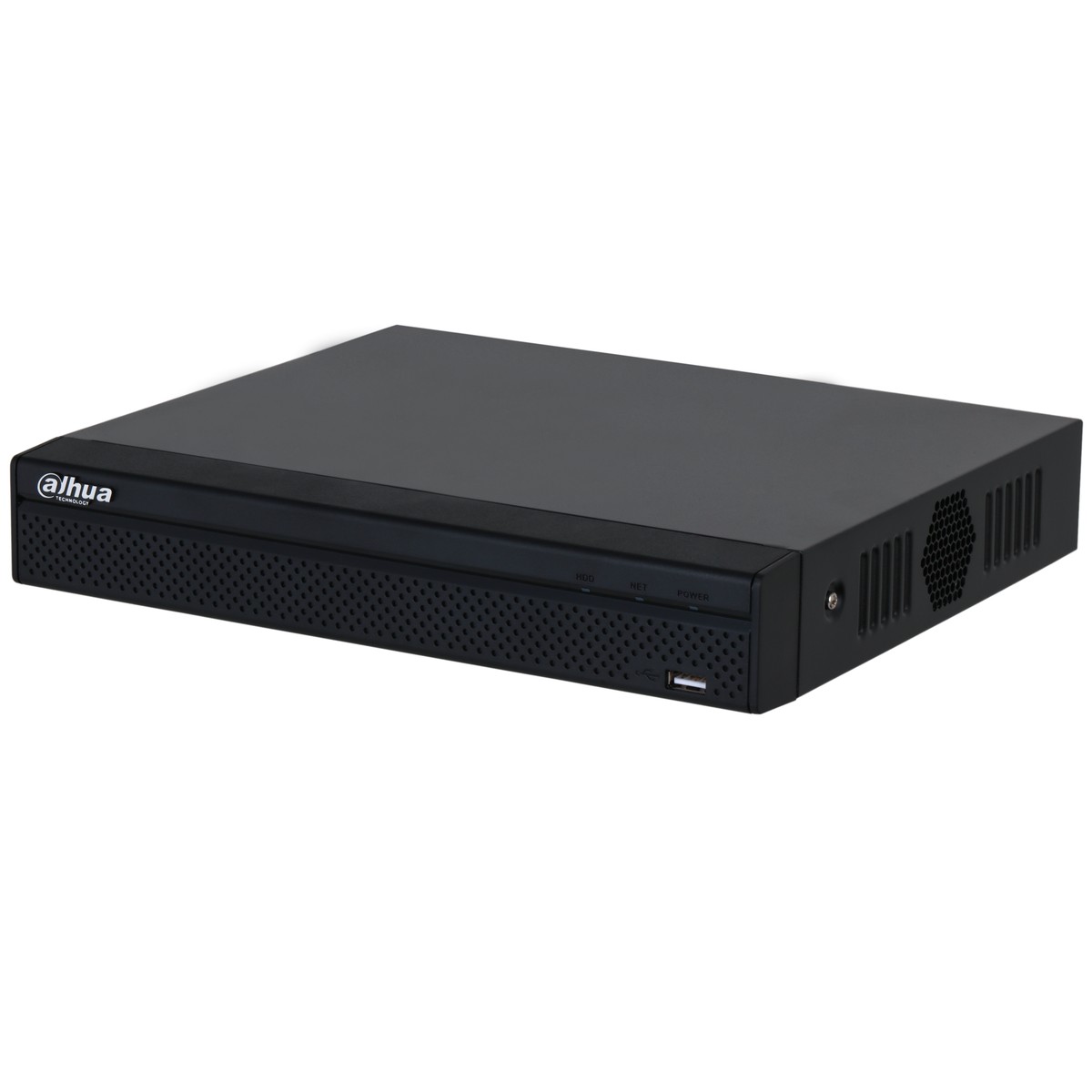

NVR 4 canali IP fino a 12 MP, banda max. 80 Mbps in ingresso e registrazione e 60 Mbps in uscita, decodifica max. 6 canali 1080p@30fps, Smart H.265+/H.265/Smart H.264+/H.264/MJPEG, 2 uscite video (1 HDMI fino a 3840×2160 + 1 VGA), predisposto per montaggio di 1 HDD, 4 porte PoE, AI by Recorder: SMD Plus su 4 canali, AI by Camera: protezione perimetrale e SMD, attivazione/disattivazione con un clic, ONVIF (Profile S/G/T), P2P, accesso da app iOS/Android, Compact 1U
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| Ai | |
| AI by Recorder | SMD |
| AI by Camera | Perimeter protection; SMD |
| Perimeter Protection | |
| AI by Camera (Number of | All channels (4 targets/s) |
| Smd Plus | |
| SMD Plus by Recorder | vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (8 targets/s) |
| Audio And Video | |
| Access Channel | 4 channels 80 Mbps incoming, 80 Mbps recording and 60 Mbps |
| Network Bandwidth | outgoing 12 MP;8 MP;6 MP;5 MP;4 MP;3 |
| Resolution | MP;1080p;720p;960p;D1;CIF;QCIF AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel |
| Decoding Capability | 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × |
| Video Output | 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | 1/4 |
| Third-party Camera Access | ONVIF |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726; |
| Network | |
| Network Protocol | SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Multi-channel Playback | Up to 4 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; camera external alarm; PIR alarm Error (no disk, disk error, low space, low quota space; |
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Perimeter protection; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | NA (2 channels are optional) |
| Alarm Output | NA (1-channel 12 V 1 A output is optional) 1 SATA port. Each disk can contain up to 20 TB. this limit |
| Disk Interface | varies depending on the environment temperature. |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| PoE Port | 4 ports, 10/100 Mbps, IEEE 802.3 af/at |
| General | |
| Power Supply | 53 VDC, 1.22 A Total output of NVR is <10 W (without HDD) Total |
| Power Consumption | output power of PoE is 36 W, the maximum output power of a single port is 25.5 W |
| Net Weight | 0.85 kg (1.87 lb) |
| Gross Weight | 1.85 kg (4.08 lb) 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × |
| Product Dimensions | 1.87") (W × D × H) 374.0 mm × 119.0 mm × 311.0 mm(14.72" × 4.69" × |
| Packaging Dimensions | 12.24")(W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN |
| Ordering Information | |
| Type | Model Description 4CH Compact 1U 4PoE |
| NETWORK VIDEO | DHI-NVR2104HS-P-4KS3 1HDD Lite Network Video |
| RECORDER | Recorder |
