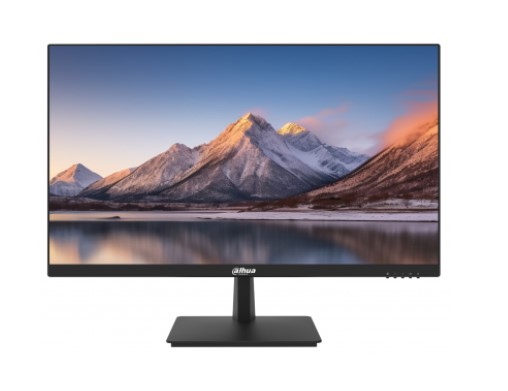

Monitor ELED da 19.5" formato 16:9 in housing plastico, risoluzione 1600×900, contrasto 600:1, luminosità 250 nit, angolo di visione 90°/65°, ingressi: 1 VGA, 1 HDMI, VESA 100×100 mm, alimentazione 12 Vdc <16 W, operatività 24/7
Datasheet
Manuali
| Display | |
| Model | DHI-LM19-L200N |
| LCD Technology | TN |
| Backlight | ELED |
| Screen Size | 19.5 inch |
| Aspect Ratio | 16:9 |
| Viewing Size | 432.0 (H) × 239.76 (V) mm |
| Viewing Angle | 90° (H) / 65° (V) |
| Display Mode | Horizontal |
| Pixel Pitch | 0.270 mm × 0.2664 mm |
| Pixels Per Inch | 94.14 |
| Resolution | 1600 (H) × 900 (V) |
| Refresh Rate | 75 Hz |
| Display Color | 8 bit |
| Color Gamut | 72% NTSC (typ.) |
| Brightness | 250 cd/m² (typ.) |
| Contrast Ratio | 600:1 |
| Response Time | 5 ms |
| Standby Power | <0.5 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 10% – 85% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity | 5%–90% (RH) |
| General | |
| Inclined Angle | –5° ± 2°/22° ± 2° 464.8 mm × 283.5 mm × 48.3 mm (18.30" × 11.16" × |
| Product Dimensions | 1.90") (W × H × D) without base 530 mm × 355 mm × 124 mm (20.87" × 13.98" × 4.88") |
| Package Size | (W × H × D) U/L/R/D: 17.4 mm/15.8 mm/15.8 mm/25.1 mm (0.68"/ |
| Frame Width | 0.62"/0.62"/0.99") |
| Net Weight | 2.1 kg (4.63 lb) |
| Gross Weight | 3.1 kg (6.83 lb) |
| Casing Color | Black |
| Control Mode | Five-button |
| Wall Mount VESA | 100 mm × 100 mm (3.94" × 3.94") Power adapter, base, HDMI cable, user's manual (QR |
| Accessory | code), QSG, legal and regulatory information, etc. |
| Optional Accessory | Wall mount |
| Ordering Information | |
| Type | Model Description Dahua 19.5 inch LED |
| LED Monitor | DHI-LM19-L200N Monitor |
