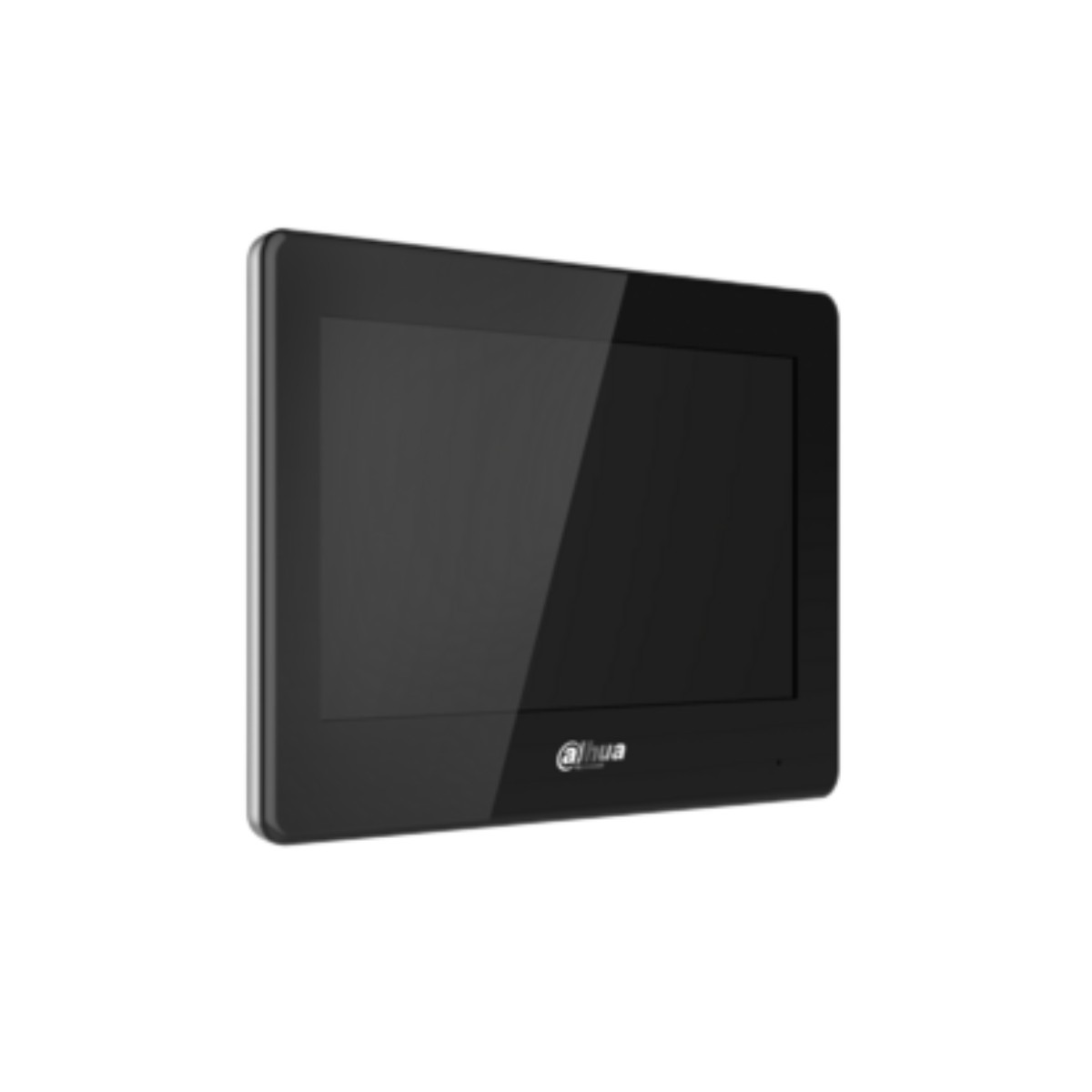

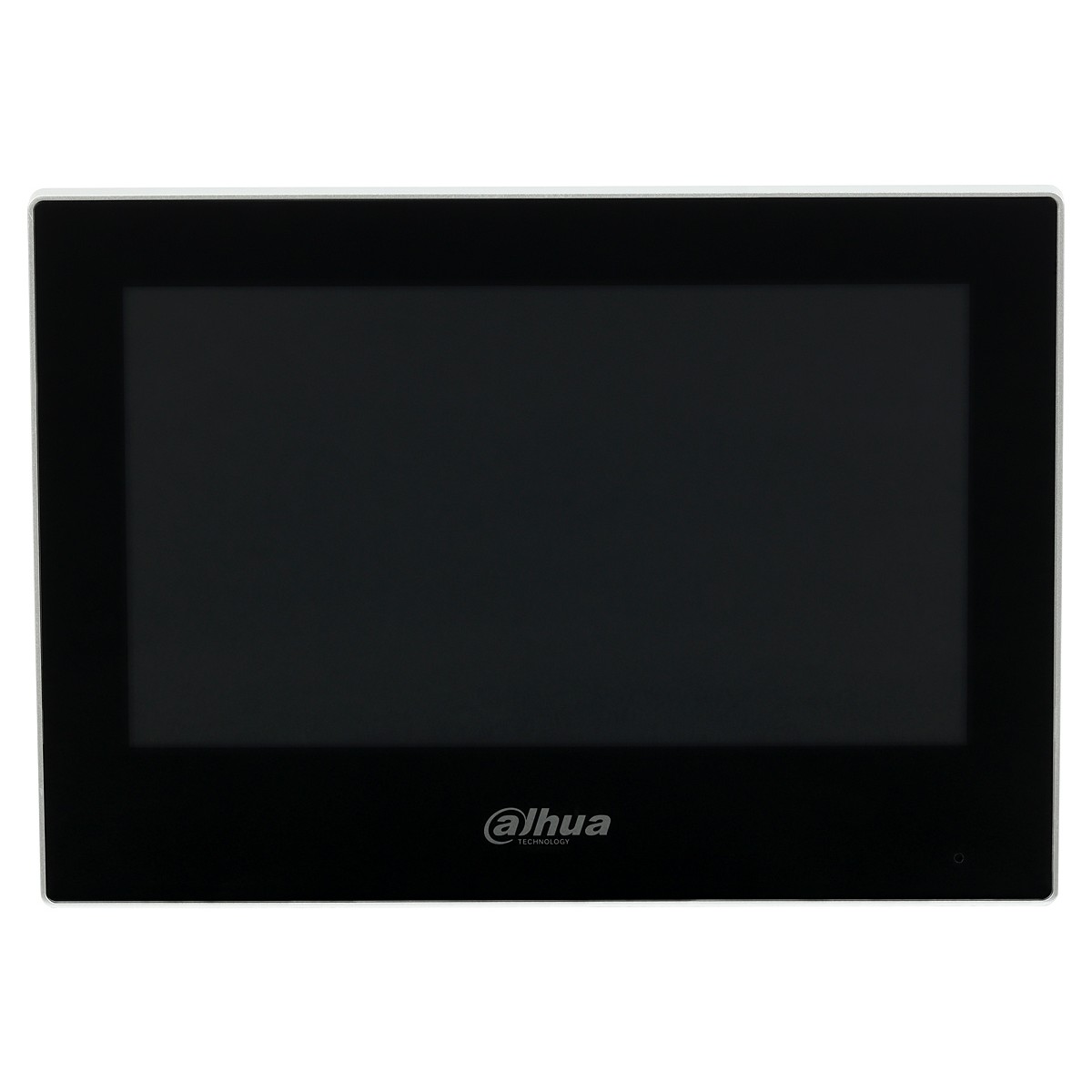

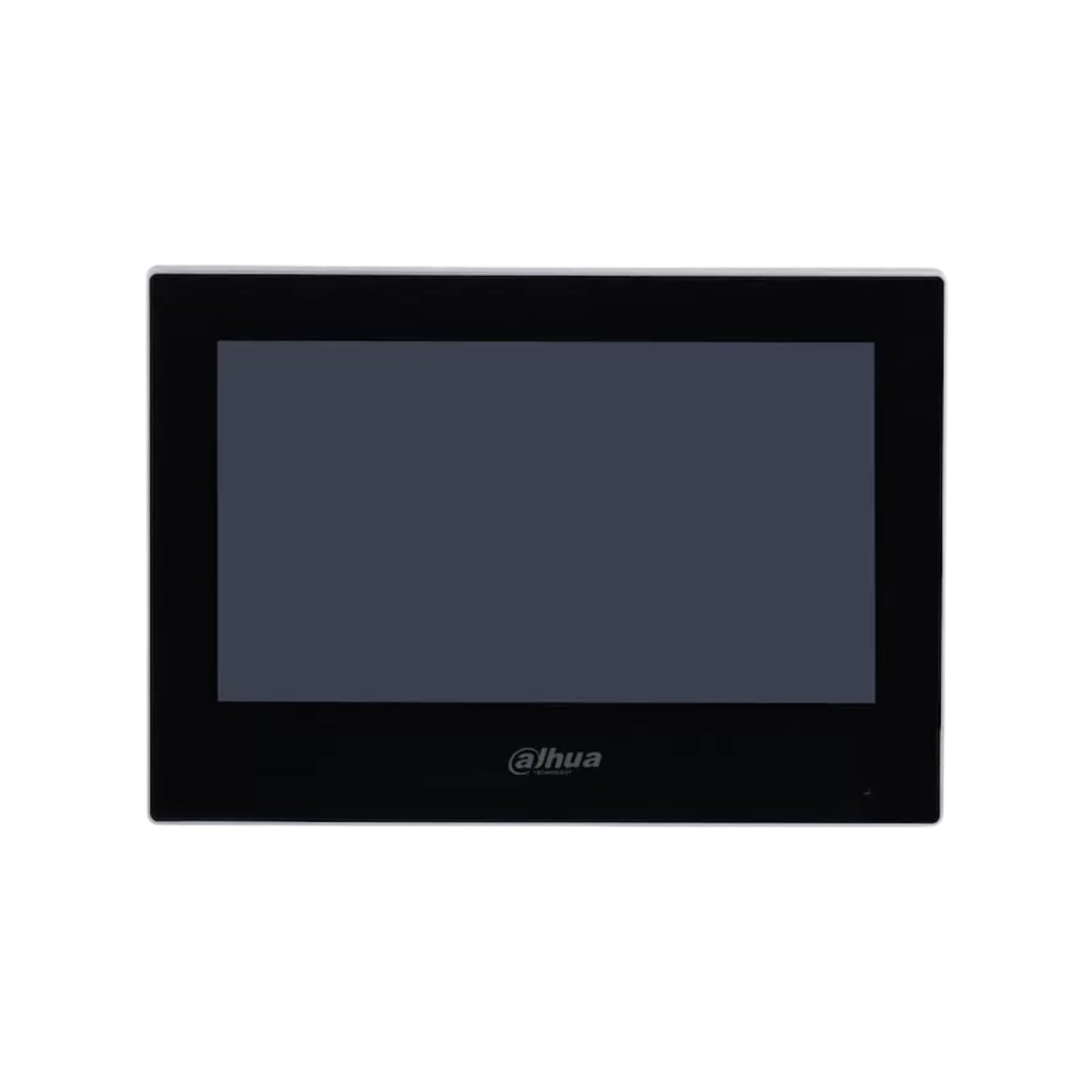

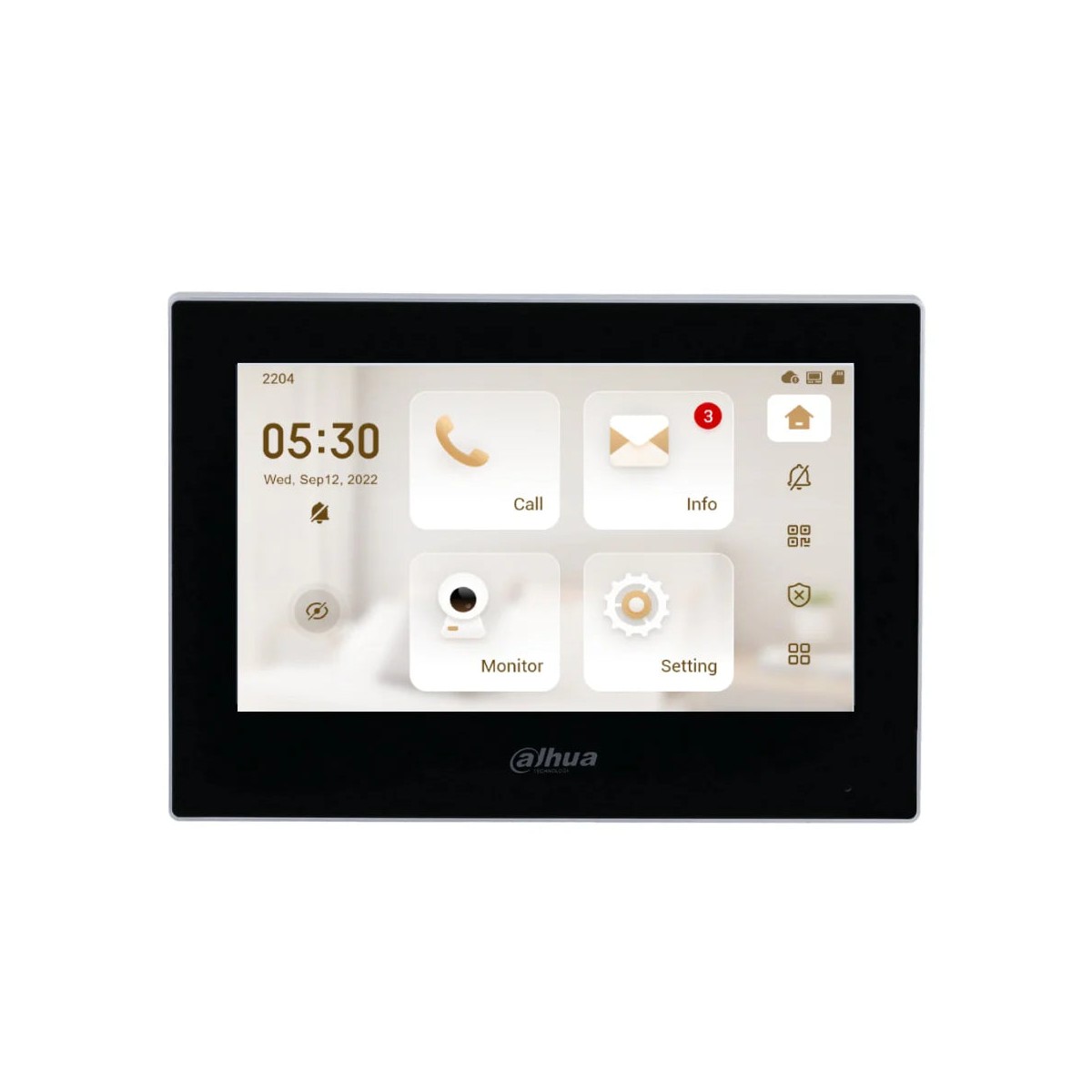

Monitor interno IP per videocitofonia della serie VTH2 con schermo touch da 7″ e alimentazione PoE, in colore nero.
- Display TFT touch capacitivo da 7″, risoluzione 1024 × 600
- Comunicazione completamente digitale su rete 10/100 Mbps, protocollo SIP; decodifica video H.265 e H.264
- Visione da posti esterni e da telecamere IP
- Altoparlante integrato, audio bidirezionale con soppressione dell’eco
- 6 ingressi e 1 uscita allarme; campanello collegabile a qualsiasi ingresso allarme
- Modalità non disturbare, ricezione di messaggi dal centro di gestione, videomessaggi con scheda SD nel posto esterno
- Alimentazione PoE standard (36–57 V) o 12 VDC 1 A; consumo in funzionamento ≤ 6 W
- Installazione a parete, dimensioni 189,6 × 134,6 × 26,0 mm
Datasheet
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Interoperability | ONVIF; SDK |
| Network Protocol | RTSP; RTP; SIP; DNS; SSH |
| ROM | 128 MB |
| RAM | 128 MB |
| CPU | Dual core 1.2 GHz |
| Basic | |
| Screen Type | Capacitive touchscreen |
| Display | 7" TFT |
| Screen Resolution | 1024 × 600 |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | 2-way Audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 kHz; 16 bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Receive and view text information released by the management center |
| Leave Videos | Yes (SD card inserted in VTO is needed) |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Number of Extensions | Villa: 9; Apartment: 4 |
| Performance | |
| Casing | PC + ABS |
| Port | |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Door Bell | Yes (use any alarm input port) |
| Network | One 10/100 Mbps Ethernet |
| Storage | Micro SD Card, Max 64 GB (reserved for software) |
| General | |
| Appearance Color | Black/White |
| Power Supply | 12 VDC 1A; Standard PoE (36–57 V, 0.35 A) |
| Installation | Surface Mount |
| Certifications | CE; FCC |
| Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% RH (non-condensing) |
| Operating Altitude | Beneath 3,000 m (9,842.52 ft) |
| Power Consumption | Standby ≤ 2 W; working ≤ 6 W |
| Net Weight | 0.34 kg (0.74 lb) |
| Gross Weight | 0.58 kg (1.27 lb) |
