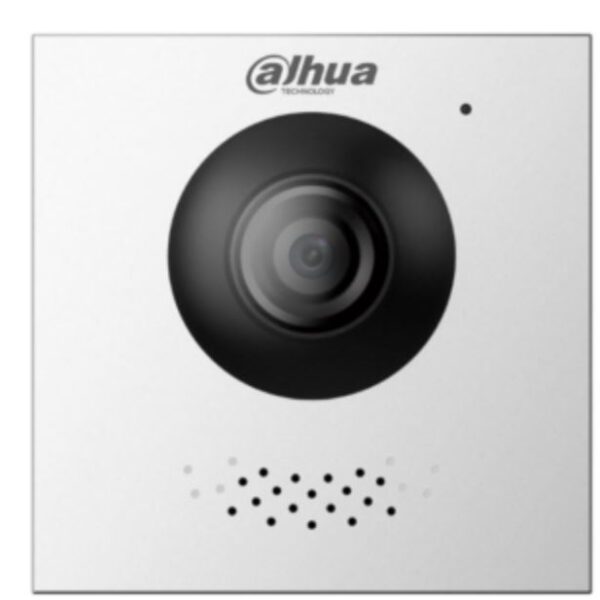

Posto esterno VTO IP/bifilare modulare IK07 alluminio

Name: Posto esterno VTO IP/bifilare modulare IK07 alluminio
Brand: Dahua
SKU: VTO4202F-P-S3
Price: 239.12 EUR
Availability: BackOrder

Dahua

COD: VTO4202F-P-S3 Categorie: Postazioni esterne e campanelli, Videocitofonia Tag: IP

239,12 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 170,31 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Posto esterno videocitofonico IP/bifilare modulare in alluminio anodizzato IP65 antivandalo IK07, sensore telecamera CMOS 1/2.9" da 2 MP, IR auto, H.265, 1 RS485, 1 porta RJ-45 10/100 Mbps, 1 uscita allarme, 1 porta alimentazione 12V/600 mA, 1 uscita tasto exit, 1 uscita stato porta, 1 uscita controllo serratura, allarme tamper, montaggio a parete o a incasso, alimentazione tramite switch bifilare Dahua/48 Vdc/PoE <5 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

System
Main Processor	Embedded Processor
Operating System	Embedded Linux Operation System
Interoperability	ONVIF; CGI
Network Protocol	IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP
Camera
Field of View	H: 168.6°; V: 87.1°; D: 176.7°
WDR	120 dB
Noise Reduction	3D NR
Video Compression	H.265; H.264 Main stream: 720p; WVGA; D1; CIF
Video Resolution	Sub stream: 1080p; WVGA; D1; QVGA; CIF
Video Frame Rate	25 fps
Video Bit Rate	256 Kbps to 8 Mbps
Light Compensation	Auto IR
Day/Night	Auto(ICR)/Color/B/W; Color/B/W
Audio Compression	G.711a; G.711u; PCM
Audio Input	1 channel
Audio Output	Built-in speaker
Audio Mode	Two-way audio
Audio Enhancement	Echo suppression/digital noise reduction
Audio Bit Rate	16 KHz, 16 Bit
Function
Communication Mode	Digital 2-wire
Unlock Mode	Remote Yes (SD card is inserted in the indoor monitor or
Leave Videos	door station)
Storage
Web Configuration	Yes
Performance
Casing Material	Aluminum
Capacity
Card Capacity	3000
Port
RS-485	1
Alarm Output	1
Power Output	1 port, 12 V/600 mA
Exit Button	1
Door Status Detection	1
Lock Control	1
Network Port	1 × RJ-45 port, 10/100 Mbps network port
Alarm
Tamper Alarm	Yes
General
Appearance Color	Silver Dahua 2-wire switch (max. power supply distance
Power Supply	is 50 m) 48 VDC, 1 A; PoE (802.3af/at)
Power Adapter	Optional
Installation	Flush Mount; Surface Mount
Certifications
Accessory	(optional); rain cover (optional) 100.0 mm × 100.0 mm × 49.4 mm (3.94" × 3.94" ×
Product Dimensions	1.94")
Protection	IK07; IP65
Operating Temperature	–30°C to +60°C (–22°F to +140°F)
Operating Humidity	10%–90% (RH), non-condensing
Operating Environment	Outdoor
Operating Altitude	0 m–3,000 m (0 ft–9,842.52 ft)
Power Consumption	≤4 W (standby), ≤5 W (working)
Gross Weight	0.43 kg (0.95 lb)
Storage Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity	30%–75% (RH), non-condensing
Ordering Information
Type	Model Description DHI-VTO4202F-P-S3 Camera module DHI-VTO4202F-MB1 One-button module DHI-VTO4202F-MB2 Two-button module DHI-VTO4202F-MB5 Five-button module DHI-VTO4202F-MS Display module DHI-VTO4202F-ML Indicator module
Modules	DHI-VTO4202F-MK Keyboard module DHI-VTO4202F-MF Fingerprint module DHI-VTO4202F-MR Card swiping module(IC) DHI-VTO4202F-MR1 Card swiping module(ID) DHI-VTO4202F-MN Blank Module DHI-VTO4202F-MI Info module
Power
Supply	DHI-VTNS1001B-2-A 2-wire Switch
Camera
Modular Door Station	<2-wire> Master Station DSS DSS mobile Public net for VDP
