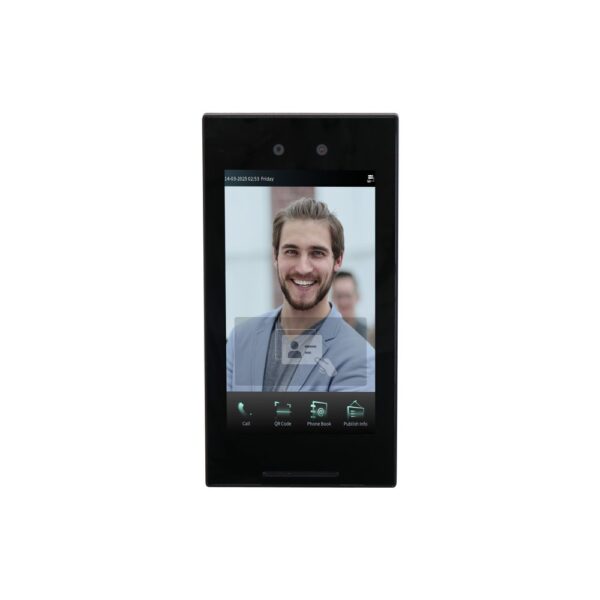

Posto esterno VTO IP 7″ touch, lettore card, face rec.

Name: Posto esterno VTO IP 7" touch, lettore card, face rec.
Brand: Dahua
SKU: VTO7631Q
Price: 647.21 EUR
Availability: BackOrder

Dahua

COD: VTO7631Q Categorie: Postazioni esterne e campanelli, Videocitofonia Tag: IP

647,21 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.294,42 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Posto esterno videocitofonico IP retroilluminato IP65 con face recognition, sensore telecamera CMOS 1/2.8" da 2 MP, display touch capacitivo da 7", risoluzione 600×1024, 1 porta di rete 10/100 Mbps, 1 porta RS485, 1 Wiegand, 2 ingressi e 2 uscite allarme, microfono e speaker integrati, lettore card RFID, face recognition, montaggio a incasso o a parete, alimentazione 12 Vdc <10 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

System
Main Processor	Embedded Processor
Operating System	Embedded Linux OS
Interoperability	ONVIF; CGI RTP; SIP; DNS; SSH; RTSP; RTMP; FTP; HTTP/HTTPS;
Network Protocol	ONVIF
Basic
Screen Type	Capacitive Touchscreen
Display Screen	7-inch display screen
Screen Resolution	600 (H) × 1024 (V) 1/2.8" 2 MP CMOS high-definition, low illumination,
Camera
Field of View	H: 65°; V: 40°; D: 73°
WDR	DWDR
Noise Reduction	3D NR
Video Compression	H.264; H.265 Main stream: 720P/D1/WVGA;
Video Resolution	Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
Video Frame Rate	PAL: 25 fps; NTSC: 30 fps
Video Bit Rate	256 kbps–4,096 kbps
Light Compensation	Auto IR
Audio Compression	G.711a; G.711u; PCM
Audio Input	1 channel
Audio Output	Built-in speaker
Audio Mode	Two-way audio
Audio Enhancement	Echo suppression/digital noise reduction
Audio Bit Rate	16 kHz, 16 bit
Function
Communication Mode	Full digital
Verification Method	Remote; Face Recognition; Password; Card
Auto Snapshot	Yes Receive and view text information released by the
Information Release	management center. Residents and visitors can call elevators. Permissions
Elevator Control	can also be granted to access floors through access control.
Leave Videos	Yes (SD card inserted in VTO is needed)
Storage
Web Configuration	Yes
Auto Registration	Yes
Rfid
Card Type	IC card
Modulation Type	ASK
Frequency Range	13.56 MHz
Max. Transmission Power	42 dBuA/m @10 m
Performance
Card Reading Distance	0 cm–4 cm (IC card)
Face Recognition Height Range	1.2 m–2.0 m (3.94 ft–6.56 ft)
Face Recognition Distance	0.3 m–1.5 m (0.98 ft–4.92 ft)
Face Recognition Accuracy	99.9%
Face Recognition Time	0.2 s
Casing Material	Tempered glass; Aluminum alloy
Capacity
Card Capacity	50,000
Face Image Capacity	50,000
User Capacity	100,000
Port
RS-485	1 channel
Wiegand	1 channel
Alarm Input	2 channels
Alarm Output	2 channels
Power Output	1 port (12 V, 700 mA)
Exit Button	1 channel
Door Status Detection	1 channel
Lock Control	1 channel, open by default
Network Port	1 × 10 Mbps/100 Mbps Ethernet port
Alarm
Tamper Alarm	Yes
General
Appearance Color	Black
Power Supply	12 VDC, 3 A
Power Adapter	Optional
Installation	Surface Mount; Flush Mount
Certifications
Accessory	(optional); Surface Mounted (optional) 219.7 mm × 113.4 mm × 24.3 mm (8.65" × 4.46" ×
Product Dimensions	0.96") (H × W × D)
Protection	IP65 rated (Silicone sealant is required.)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	0%–90% (RH), non-condensing
Operating Environment	Outdoor
Operating Altitude	0 m–1,300 m (0 ft–4,265.09 ft) ≤ 8 W (standby), ≤ 10 W (working). These two values
Power Consumption	of power consumption do not contain the output power.
Gross Weight	0.82 kg (1.81 lb)
Storage Temperature	–20 °C to +70 °C (–4 °F to +158 °F)
Storage Humidity	30%–75%
Ordering Information
Type	Model Description
Door
Station	Station VTM93 Surface Mounted Box
