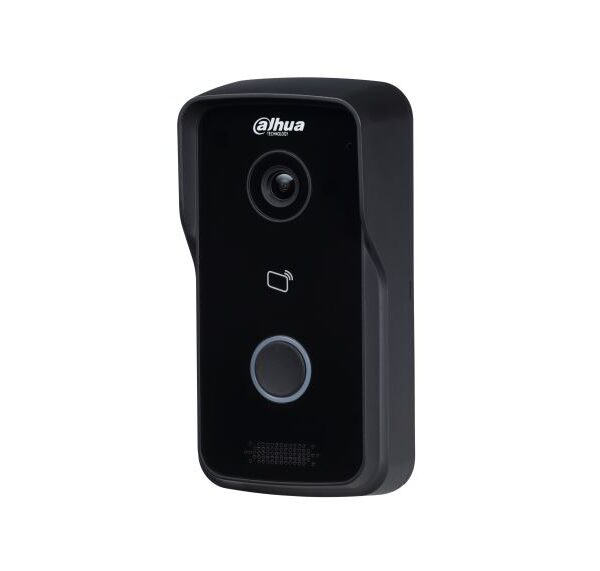

Posto esterno VTO IP 1 tasto, lettore card
Posto esterno videocitofonico IP in materiale plastico IP65, sensore telecamera CMOS 1/2.8" da 2 MP, 1 porta LAN 10/100 Mbps, 1 uscita a relè per comando apertura porta mono famigliare espandibile con modulo relè DEE1010B su 1 RS485, microfono e speaker integrati, 1 tasto meccanico, lettore tessere RFID integrato, montaggio a parete, alimentazione 12 Vdc/PoE <5 W
Datasheet
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Mechanical | |
| Number of Buttons | 1 |
| Interoperability | ONVIF; CGI |
| Network Protocol | IPv4; RTSP; UDP; DNS; P2P; RTP; TCP; SIP |
| Camera | |
| Field of View | H: 107°; V: 60°; D: 122° |
| Noise Reduction | 3D NR |
| Video Compression | H.264; H.265 Main stream: 720p, WVGA, D1, CIF |
| Video Resolution | Sub stream: 1080p, WVGA, D1, QVGA, CIF PAL: 25 fps; |
| Video Frame Rate | NTSC: 30 fps |
| Video Bit Rate | 256 Kbps–8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W;Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card; app; indoor monitor |
| Card Type | IC card |
| Leave Videos | Yes (an SD card must be inserted in the VTH) |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 0 cm–4.5 cm (0"–1.77") |
| Issue Card Locally | Yes |
| Casing Material | PC + Acrylic |
| Capacity | |
| Card Capacity | 10000 |
| Port | |
| RS-485 | 1 |
| Power Output | 1 port, 12 V and 200 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 port, normally closed by default 1 × 10/100 Mbps network port (8-core white |
| Network Port | ribbon cable) |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Color | Black 12 VDC, 1 A |
| Power Supply | Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | |
| Accessory | brackets 135.1mm × 70.6mm × 34.6mm (5.32" × 2.78" × |
| Product Dimensions | 1.36") IP65 (silicone sealant is needed, see the quick start |
| Protection | guide.) IK04 (for common use) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Power Consumption | ≤ 1 W (standby), ≤ 5 W (working) |
| Gross Weight | 326 g (0.72 lb) |
| Anti-corrosion Level | Basic Protection |
| Ordering Information | |
| Type | Model Description DHI-VTO2111D- |
| VTO | IP Villa Door Station P-S3 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Application | |
| Sub VTH | Public net DMSS mobile VTO |
