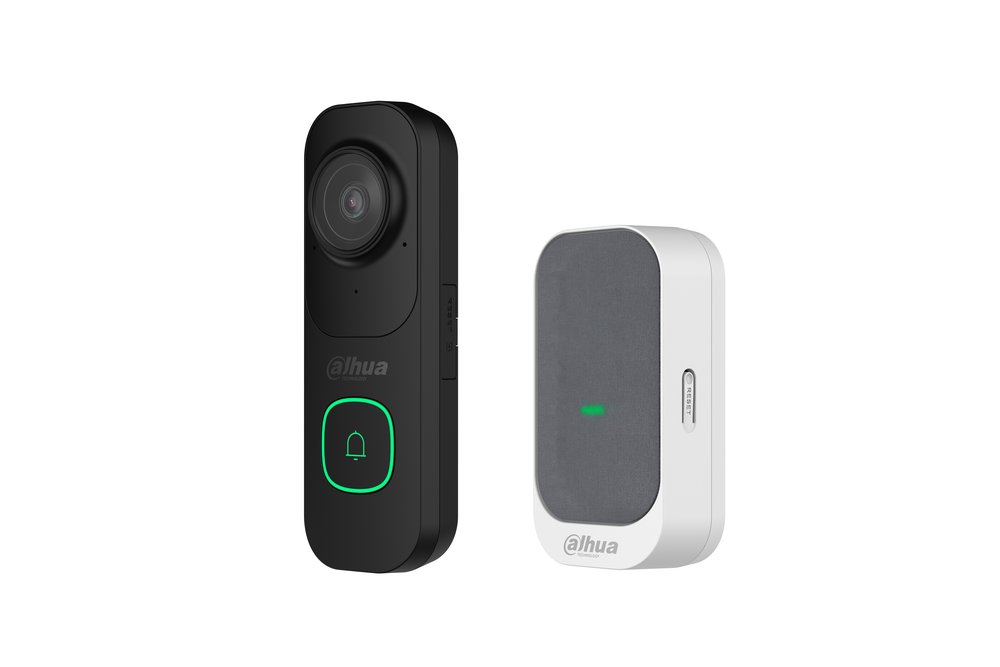

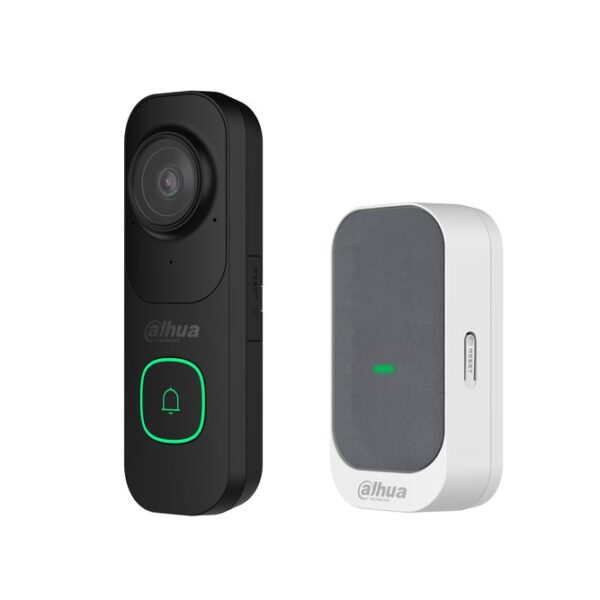

Kit VDP Wi-Fi con VTO nero e campanello

Name: Kit VDP Wi-Fi con VTO nero e campanello
Brand: Dahua
SKU: VDKP01-BG
Price: 170.19 EUR
Availability: BackOrder

Dahua

COD: VDKP01-BG Categorie: Kit videocitofonici, Videocitofonia

170,19 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 340,38 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Kit con posto esterno videocitofonico IP65 nero e campanello Wi-Fi, videocitofono: sensore telecamera CMOS 1/3'' da 4 MP, IR, 1 tasto di chiamata meccanico, slot micro SD card (max. 256 GB), alimentazione tramite USB (5 Vdc)/morsettiera 10-24 Vdc/14-24 Vac <6.8 W

Datasheet

Scheda Tecnica

H.265
Clear images with sharp details	technology
Ai Human Detection
Proactive bidirectional call anytime,	Focuses on what matters and
anywhere	reduces false alarms
Wi-Fi 6
Detects abnormal sounds and sends	Seamless integration of speed and
alarms in time	anti-interference
Camera
Image Sensor	1/3" CMOS
Max. Resolution	2560 (H) × 1440 (V)
Illumination Distance	Up to 10 m (32.81 ft) (IR)
Illuminator Number	2 (IR LED)
Lens Type	Fixed-focal
Focal Length	2.3 mm
Max. Aperture	F2.2
Field of View	H: 120°; V: 66°; D: 143°
Intelligence
Human Detection	Yes
Vehicle Detection	Yes
Audio And Video
Video Compression	H.265; H.264; H.264H; H.264B Main stream: 2560 × 1440@(1–15 fps)/920 × 1080@ (1–15 fps)/1280 × 720@(1–15 fps) Sub stream: 640 × 360@(1–15 fps)
Video Frame Rate	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. H.264: 32 kbps–8192 kbps;
Video Bit Rate	H.265: 32 kbps–8192 kbps
Day/Night	Auto(ICR)/Color/B/W
WDR	DWDR
Motion Detection	OFF/ON (4 areas, rectangular)
Image Rotation	0°/180°
Built-in MIC	Yes, built-in Mic
Type-C	Micro SD Card Slot
Power Ports	Night Light
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a; G.711Mu; PCM
Network
Wi-Fi	EIRP≤20 dBm
Wi-Fi Pairing	Bluetooth pairing
Storage
Management Software	DMSS
Mobile Client	Android;iOS
Certifications
Power Supply	(10–24 VDC/14–24 VAC, 1.0 A). Basic: 1.7 W (5 VDC); 2.1 W (10–24 VDC); 2.2 W (14–24VAC, active power)
Power Consumption	Max.: 5.3 W (5 VDC); 6.8 W (10–24 VDC); 6.8 W (14– 24 VAC, active power) (IR + white light + alarm on)
Operating Temperature	–20 °C to +55 °C (–4 °F to +131 °F)
Operating Humidity	≤95% (RH), non-condensing
Protection	IP65
Camera Button	One-click Call Button
Casing Material	Plastic 135 mm × 45 mm × 24.2 mm (5.31" × 1.77" × 0.95")
Product Dimensions	(L × W × H)
Net Weight	0.11 kg (0.24 lb)
Audio
Built-in Speaker	Built-in Speaker
Network
Management Software	DMSS IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G,
Wi-Fi	EIRP≤20 dBm
Network Update	Yes
Power
Power Supply	100–240 VAC 50/60 Hz
Power Consumption	< 5 W
Structure
Appearance Color	White Plastic + Grey Cloth Tools: Documents: Power: Installation Kit × 1 Quick Start Guide × 2 Power Cable × 1
× 1
Net Weight	0.1 kg (0.22 lb)
Gross Weight	0.2 kg (0.44 lb)
Casing Material	Plastic + Cloth Bare machine: 96 mm × 50 mm × 30.3 mm (3.78" ×
Product Dimensions	1.97"× 1.19") (L × W × H) 187 mm × 81 mm × 57 mm (7.36" × 3.19" × 2.24")
Packaging Dimensions	(L × W × H)
Environment
Operating Temperature	–10 °C to +45 °C (14 °F to +113 °F)
Operating Humidity	20%–95% (RH), non-condensing
