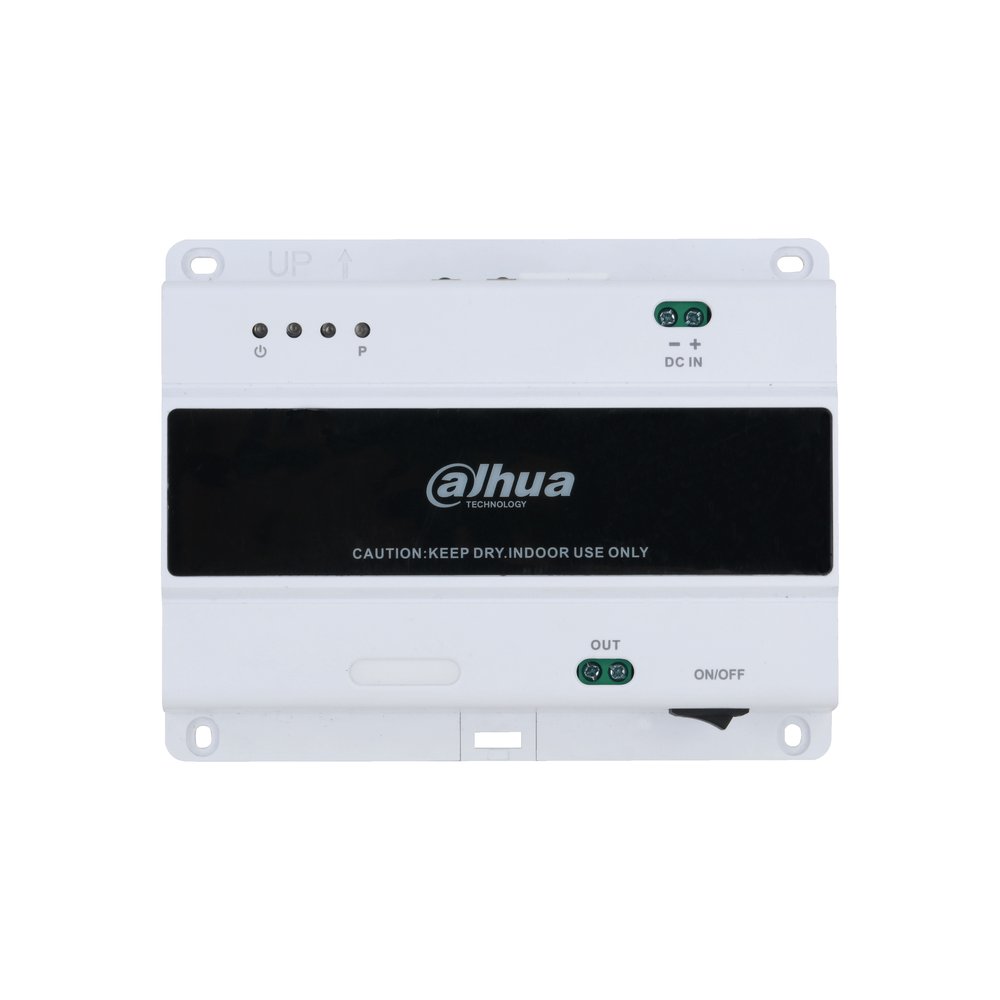

Switch bifilare 48V con alimentatore
Switch bifilare, 2 porte bifilari, 1 porta RJ45, alimentazione 48 Vdc, montaggio con binari di guida, alimentatore incluso
Datasheet
| Basic | |
| Status Indicator Light | 2 |
| Communication Mode | 2-wire |
| Port | |
| 2-wire port | 1 × 2-wire port; |
| RJ45 | 1 |
| General | |
| Casing | PC + ABS |
| Appearance color | White |
| Power Supply | 48 VDC, 1 A – 5 A |
| Power Adapter | NA |
| Installation | Guide rail mount |
| Certifications | |
| Accessory | Power converter cable |
| Product Dimensions | 131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57") |
| Operating Temperature | –10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 10%°–95% (RH, non-condensing) |
| Operating Altitude | 0–3000 m (0–9842.52 ft) |
| Power Consumption | ≤ 15W (KIT) |
| Net Weight | 0.25 kg (0.55 lb) |
| Gross Weight | 0.39 kg (0.86 lb) |
