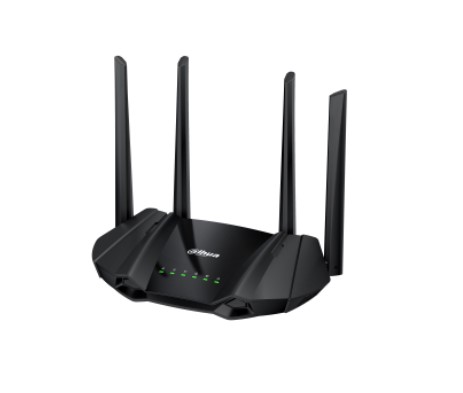

Router wireless 6th gen 2.4/5G, AX1500 (IEEE 802.11 b/g/n/ac/ax), velocità wireless 1.5 Gbps, 1 porta Gigabit (10/100/1000 Mbps) WAN, 2 porte Gigabit (10/100/1000 Mbps) LAN, tasto reset, alimentazione 12 Vdc, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| Physical Port | 2 × 10/100/1000Mbps LAN |
| Power Consumption | <10 W |
| Memory | 128 MB Flash and 128 MB RAM 1 × WPS 1 × 5GHz, 1 x 2.4GHz |
| Indicator Light | 1 × LAN 1 × Internet 1 × PWR |
| Button | 1 × Reset/WPS button 2.4 GHz: 802.11 b/g/n |
| Wireless Standard | 5 GHz: 802.11 a/n/a/ac/ax |
| Performance | |
| Operating Frequency | 5.150 GHz–5.850 GHz 2.4 GHz: 300 Mbps |
| Wireless Transmission Rate | 5 GHz: 1201 Mbps |
| Channel Width | 20/40/80 MHz CE EIRP: ≤20 dBm@2400-2483.5 MHz ≤23 dBm@5150-5250 MHz |
| Max. Output Power | ≤23 dBm@5250-5350 MHz ≤27 dBm@5470-5725 MHz ≤14 dBm@5725-5850 MHz 2.4 GHz: 5dBi (±0.5) |
| Antenna Gain | 5 GHz: 5dBi (±0.5) 2.4 GHz 11n HT20_MCS0: -95 dbm 11n HT20_MCS7: -75 dbm 11n HT40_MCS0: -92 dbm 11n HT40_MCS7: -72 dbm |
| Receiver Sensitivity | 5 GHz 11ac VHT80_MCS0: -89 dbm 11ac VHT80_MCS9: -62 dbm 11ax HE80_MCS0: -89 dbm 11ax HE80_MCS11: -59 dbm 2.4 GHz: 1-13 |
| Channel | 5 GHz: 36/40/44/48,52/56/60/64,149/151/153/157 /161/165 2.4 GHz: 16 |
| Connected Wireless Terminals | 5 GHz: 32 |
| Function | |
| Encryption Mode | WPA3-AES WPA/WPA2-PSK WPA2-PSK/WPA3-AES |
| Management and Log | NTP; Syslog |
| Firmware Update | Web/WiLynk App update |
| OFDMA | Yes |
| MU-MIMO | 2 × 2 |
| DHCP | Yes |
| NAT | Mapping based on port The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| QoS | Yes |
| DDNS | Yes |
| Parental Controls | Yes |
| Equipment Management | Web/WiLynk App |
| General | |
| Power Supply | 12 VDC,1 A |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to 158 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Gross Weight | 0.56 kg (1.23 lb) |
| Net Weight | 0.26 kg (0.57 lb) 321 mm × 257 mm × 76 mm(12.63" × 10.11" × 2.99") |
| Packaging Dimensions | (L × W × H) 215 mm × 119 mm × 173 mm (8.46" × 4.67" × 6.81") |
| Product Dimensions | (L × W × H) Air discharge: 8 kV |
| Statics Protection | Contact discharge: 4 kV Common mode: 2.5 kV |
| Lighting Protection | Differential mode: 0.5 kV |
| Installation | Desktop mount 1 × Device 1 × Power Adapter 1 × Network Cable 1 × Quick Start Guide |
| Packing List | 1 × Legal and Regulatory Information 1 × Frequency Band Information 1 × Warranty Card 1 × Product Information QR Code |
| Dimensions (Mm [Inch]) | |
| 110.0 [4.33] | 29.3 [1.15] 33.3 [1.31] |
