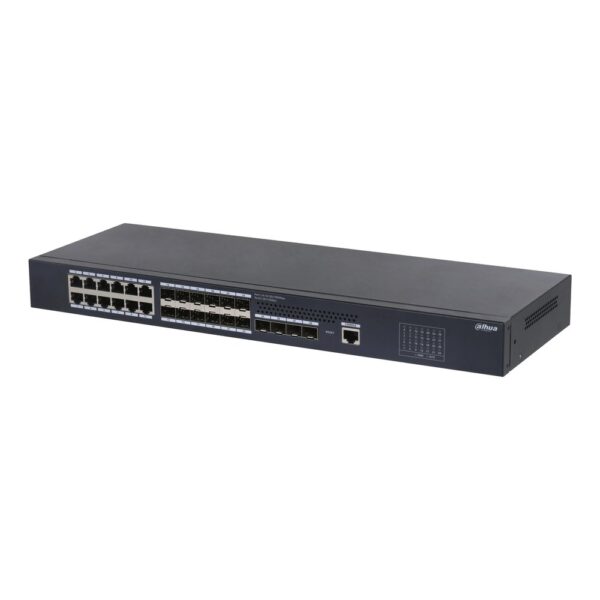

Aggregation switch L2+ managed 28 porte Gigabit + 4 SFP+

Name: Aggregation switch L2+ managed 28 porte Gigabit + 4 SFP+
Brand: Dahua
SKU: S5428-12GF12GT4XF
Price: 884.50 EUR
Availability: BackOrder

Dahua

COD: S5428-12GF12GT4XF Categorie: Networking, Switch di rete

884,50 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.769,00 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Aggregation switch managed (anche tramite Cloud) L2+ con 28 porte Gigabit (12 RJ-45 10/10/100 Mbps + 12 SFP 100/1000 Mbps + 4 SFP+ 1/10 Gbps), capacità switching 128 Gbps, rate inoltro pacchetti 95.232 Mpps, 100~240 Vac, alimentatore incluso

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Basic
Layer	Layer 2
Switching Capacity	128 Gbps
Packet Forwarding Rate	95.232 Mpps Port 1-12: 12 × RJ-45 10/100/1000 Mbps
Description of Function Slots	Port 13-24: 12 × SFP 100/1000 Mbps Port 25-28: 4 × SFP+ 1/10 Gbps
Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity	10%–90% (RH), non-condensing
Storage Temperature	–40 °C to +70 °C (-40 °F to +158 °F)
Storage Humidity	5%–95% (RH), non-condensing
Power Supply	Built-in power supply: 100–240 VAC, 50/60 Hz, 2 A Idling load: 18.8 W
Power Consumption	Full load: 60 W Air discharge: 8 kV
Statics Protection	Contact discharge: 6 kV Common mode: 4 kV
Lightning Protection	Differential mode: 2 kV
Net Weight	1.95 kg (4.30 lb)
Gross Weight	2.68 kg (5.91 lb) 440 mm × 164 mm × 44 mm (17.32" × 6.46" × 1.73")
Product Dimensions	(L × W × H) 523 mm × 273 mm × 109 mm (20.59" × 10.75" ×
Packaging Dimensions	4.29") (L × W × H)
Installation	Rack mount; desktop mount
Hardware
Debugging	1 × Console port
Reset Button	1
Performance
Packet Buffer Size	16 Mbit
Jumbo Frame	12288 Byte
MAC Table Size	32K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab;
Communication Standard	IEEE 802.3z; IEEE 802.3ad
VLAN Number	4094
VLAN Interface	10
Feature
Ethernet Loop Protection	STP/RSTP/ERPS
VLAN Function	Port-based VLAN LACP
Link Aggregation	Static link aggregation Dynamic link aggregation IEEE 802.3x flow control Unknown unicast suppression
Port Feature	Multicast storm control Broadcast storm control
IEEE 802.3x Flow Control	Yes
Multicast	IGMP Snooping
Reliability	LLDP
Routing	Static routing
DHCP Function	DHCP Client 802.1X Port isolation
Security	Radius HTTPS SP/WRR queue scheduling
QoS/ACL	802.1p and DSCP priority mapping Port speed limit Cloud management Web SNMP V1/V2C/V3
Equipment Management	NTP Logs Ping
General
Packing List	1 × List of Hazardous Substances 1 × Power Cord 1 × Rack-mounting Kit
Ordering Information
Type	Model Gigabit RJ45 SFP Module GSFP-RJ45 Gigabit 1310/1550nm,20km,LC, GSFP-1310T-20-SMF Single-mode Gigabit 1550/1310nm,20km,LC, GSFP-1310R-20-SMF Single-mode Gigabit 1310nm,20km,LC, Single-mode GSFP-1310-20-SMF Gigabit 850nm,550m,LC, Multi-mode GSFP-850-MMF
Transceiver	10G 1270/1330nm,20km,LC, Single-mode TSFP-1270T-20-SMF 10G 1330/1270nm,20km,LC, Single-mode TSFP-1270R-20-SMF 10G 1310nm,20km,LC, Single-mode TSFP-1310-20-SMF 10G 1550nm,40km,LC, Single-mode TSFP-1550-40-SMF 10G 850nm,300m,LC, Multi-mode TSFP-850-MMF
Dimensions (Mm[Inch])
155.0	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
