Coppia ponti radio Wi-Fi 2.4/5G 867 Mbps 1 km

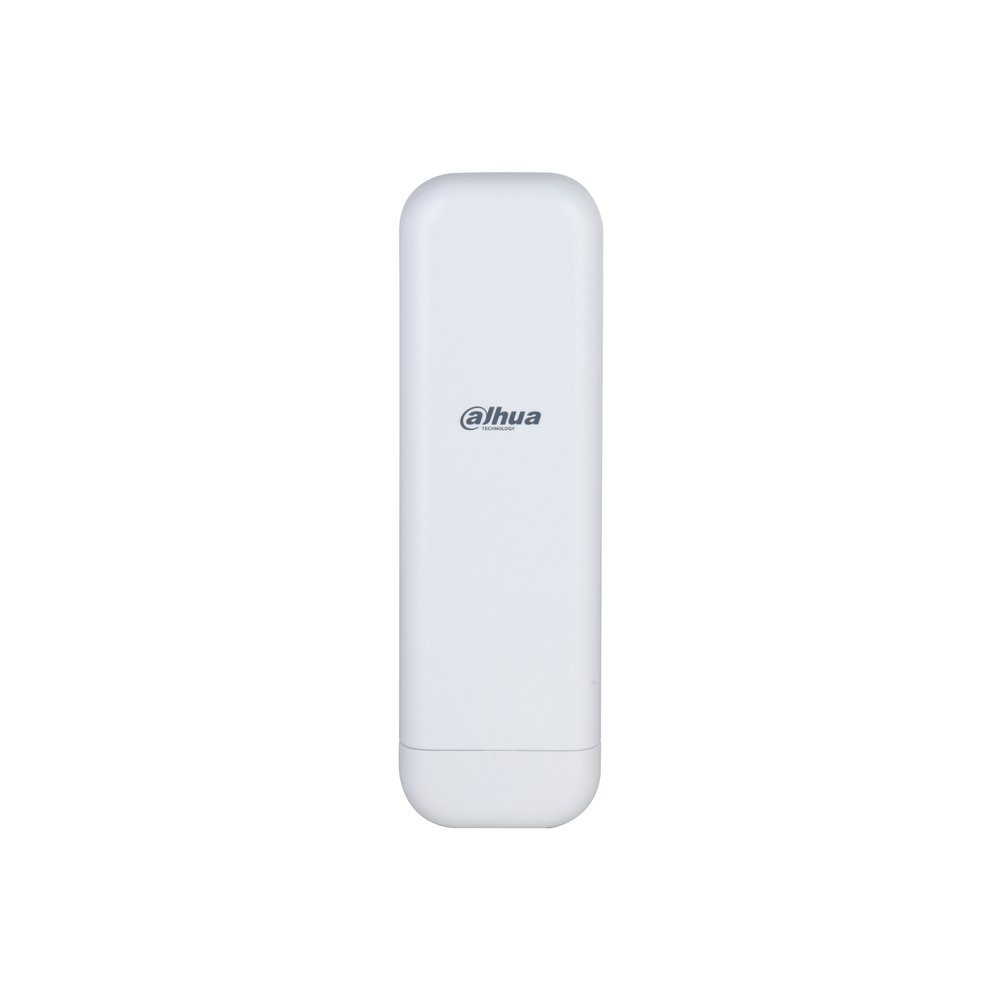

Name: Coppia ponti radio Wi-Fi 2.4/5G 867 Mbps 1 km
Brand: Dahua
SKU: WBK5-90AC-01P
Price: 277.55 EUR
Availability: BackOrder

Dahua

COD: WBK5-90AC-01P Categorie: Networking, Trasmissione e conversione di rete

277,55 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 555,10 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Coppia di ponti radio Wi-Fi 2.4/5G IP65, portata ottimale 1 km, max banda 867 Mbps, 802.11a/b/g/n/ac, 1 porta Gigabit 10/100/1000 Mbps PoE IN, 1 porta 10/100 Mbps PoE OUT, alimentazione PoE

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Hardware
Sold in Pairs	Yes LAN 2: 1 × RJ-45 10/100/1000 Mbps(PoE In);
Function Slots	LAN 1: 1 × RJ-45 10/100 Mbps(PoE Out)
Power Supply	PoE(802.3 af/at)
Power Consumption	< 30 W
Antenna	IPEX
Memory	DDR 128 MB 1 × Power indicator; 2 × LAN port indicators;
Indicator Light	1 × PoE indicator; 3 × Wireless signal strength indicators 2 × RJ–45;
External Port	1 × Reset
Performance
Wireless Standard	5 GHz: 802.11a/n/ac
Recommended Video	10-ch 4-MP IPC
Channels	2.4 GHz: 2.412 GHz–2.472 GHz;
Operating Frequency	5 GHz: 5.15 GHz–5.25 GHz; 5.735 GHz–5.835 GHz 2.4 GHz:300 Mbps;
Wireless Transmission Rate	5 GHz:867 Mbps
Channel Width	20/40/80 MHz
Max. Output Power	21 dBm + 9dBi
Antenna Direction Angle	Horizontal: 90°, vertical: 20°
Receiver Sensitivity	–96 dBm@11a_20M_6M
Polarization	Vertical/horizontal
Transmission Distance	1 km (3,280.83 ft)
Connected Wireless	8
Terminals	PoE In: 802.3af/at(15W/30W);
PoE	PoE Out: 802.3af(15W)
Function
Operating Mode	AP; STA Web management;
Equipment Management	App management
Network Protocol	HTTPS;IPv4;UDP;NTP;DHCP;TCP
Protection Mode	WPA-PSK/AES/TKIP
Security Mechanism	WPA/WPA2; hidden SSID
DHCP	Yes
Firmware Update	Web update;ConfigTool;App update Device Management: wireless bridge configuration on the app through WLAN; local web management; cloud
Software	management (cloud web and app); quick configuration guide; scanning code to add; Wi-Fi hotspot access cloud;
Software	management; working mode selection (access point/ client); hide SSID (only access point); wireless output power adjustment; channel selection and channel width configuration; Protection mode configuration (non- encrypted and WPA2-PSK; wireless frame segmentation and aggregation
General
Operating Temperature	–30 °C to +65 °C (–22 °F to +149 °F)
Storage Temperature	–40 °C to +80 °C (–40 °F to +176 °F)
Operating Humidity	5%–95% (RH), non-condensing
Net Weight	0.74 kg (1.63 lb)
Gross Weight	2.095 kg (4.62 lb) 268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") (L ×
Product Dimensions	W × H) 312 mm × 205 mm × 136 mm (12.28" × 8.07" × 5.35")
Packaging Dimensions	(L × W × H)
Protection	IP65 Air discharge: 15 kV;
Statics Protection	Contact discharge: 8 kV Common mode: 6 kV;
Lightning Protection	Differential mode: 4 kV
Installation	Pole mount
Certifications
Packing List	2 × Antenna adjustment bracket; 2 × Mounting bracket; 1 × Quick start guide; 1 × Legal and regulatory information
Ordering Information
Type	Model Description
WirelessBridge	DH-WBK5-90AC-01P Wireless Bridge
