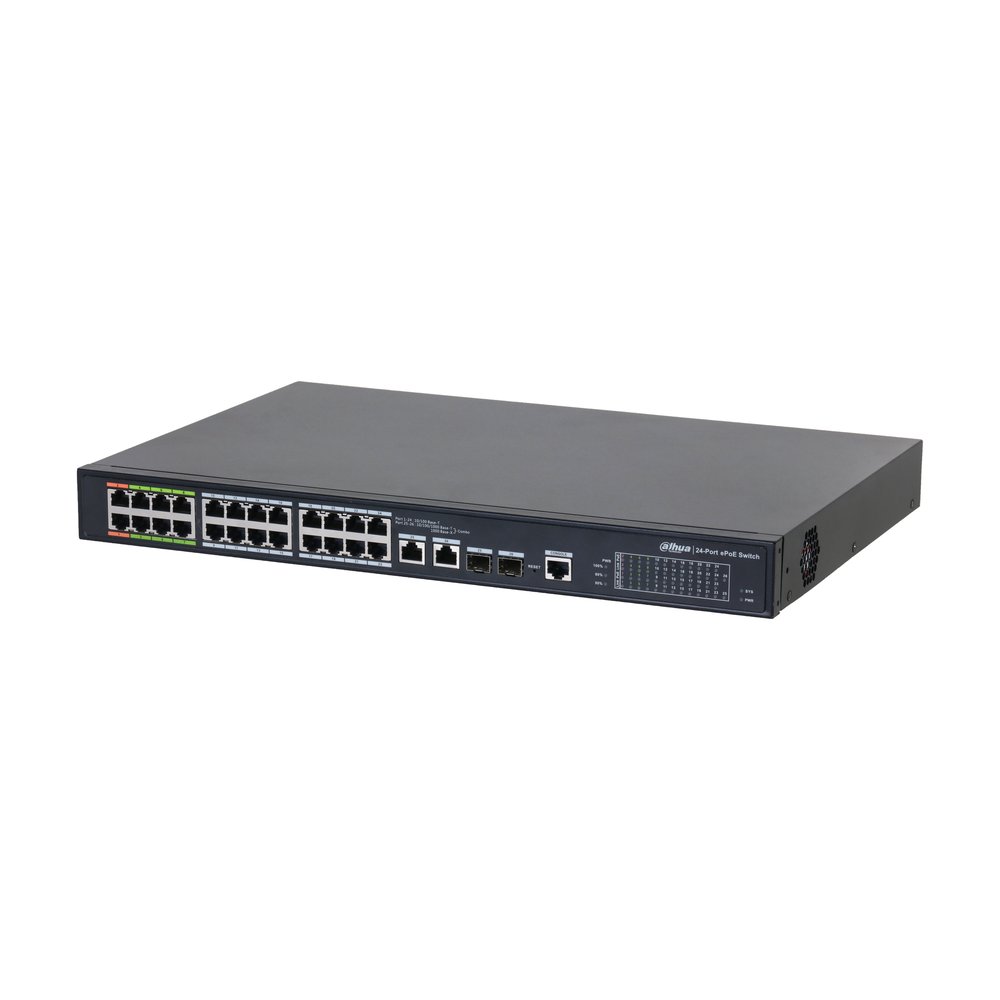

Switch managed con 26 porte (16 10/100 Mbps PoE + 8 10/100 Mbps ePoE + 2 SFP 1000 Mbps combo, capacità switching 8.8 Gbps, rate inoltro pacchetti 6.55 Mpps, 2 orange port HI-PoE 60 W, 100~240 Vac, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 24 |
| Ethernet Port Speed | 10/100 Mbps |
| Ethernet Port Uplink | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1 Gbps Port 1–24: 24 × RJ-45 10/100 Mbps |
| Description of Function | Port 25–26: 2 × RJ-45 10/100/1000 Mbps |
| Slots | Port 25–26: 2 × SFP 1000 Mbps (combo) |
| Debugging | 1 × Console port |
| Reset Button | 1 |
| Power Supply | Built-in power supply: 100–240 VAC, 50/60 Hz, 6 A |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) |
| Power Consumption | Full load: 360 W |
| Performance | |
| Layer | Layer 2 |
| Management Type | Yes |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Packet Buffer Size | 2.75 Mbit |
| MAC Table Size | 4K |
| VLAN Number | 31 IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE |
| Communication Standard | 802.3z |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE Port 1–2 ≤60 W; |
| PoE Power | Port 3–24 ≤30 W; Total ≤360 W PoE power consumption management; |
| PoE Power Consumption | PoE power on/off; |
| Management | Turns off PoE if overload is detected; Green PoE |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| ePoE | Yes |
| Spanning Tree Protocol | STP/RSTP |
| VLAN Function | Port-based VLAN Static link aggregation |
| Link Aggregation | LACP |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping v1/v2 |
| DHCP Function | DHCP Client Multi-level user management and password; protection; 802.1X; |
| Security | RADIUS; Port isolation |
| QoS/ACL | SP/WRR queue scheduling SNMPv1/v2/v3; |
| Equipment Management | System logs, multi-level alarms; LLDP |
| General | |
| Statics Protection | contact discharge: 6 kV Common mode: 4 kV; |
| Lighting Protection | differential mode: 2 kV |
| Net Weight | 3.44 kg (7.58 lb) |
| Gross Weight | 4.42 kg (9.74 lb) 440 mm × 300 mm × 44 mm |
| Product Dimensions | (17.32"" × 11.81"" × 1.73"") (L × W × H) 565 mm × 530 mm × 415 mm (22.24" × 20.87" × 16.34") |
| Packaging Dimensions | (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; rack mount |
| Network | |
| Cable | PoE Max Load Bandwidth Load Capacity |
| Operating | |
| Length (m) | (Mbps) (W) Mode |
| 100 | 100 25.5 53 IEEE/E100 |
| 200 | 100 25.5 47 E100 |
| 300 | 100 25.5 32 E100 |
| 400 | 10 23 26 E10 |
| 500 | 10 20 20 E10 |
| 800 | 10 13 13 E10 |
| CAT6, max. DC resistance < 10Ω/100m. | Communication Hi-PoE Max |
| Network | |
| Cable | PoE Max Load Bandwidth Load Capacity |
| Operating | |
| Length (m) | (Mbps) (W) Mode |
| 100 | 100 25.5 52 IEEE/E100 |
| 200 | 100 25.5 48 E100 |
| 300 | 100 25.5 30 E100 |
| 400 | 100 20 23 E100 |
| 500 | 10 16 16 E10 |
| 800 | 10 10 10 E10 |
| 1000 | 10 8 8 E10 |
