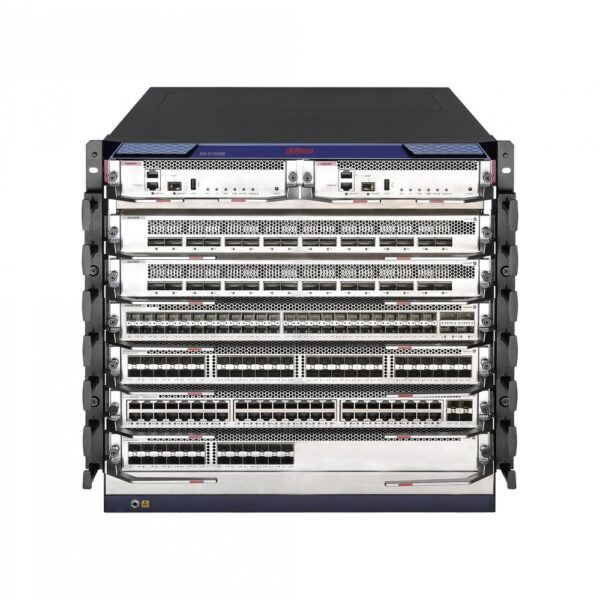

Core switch L3 managed, 12 slot (6 line card + 2 Supervisor Engine Module + 4 switch fabric card), Hot Swapping, 1 porta console, 1 porta RJ45, 1 porta USB, 1 porta SFP, capacità switching 384 Tbps, rate inoltro pacchetti 72000 Mpps, quadrupla alimentazione 100-240 Vac <2470 W
Datasheet
Manuali
| Hardware | |
| Total Slots | 12 |
| Supervisor Engine Module | 2 |
| Line Card | 6 |
| Switch Fabric Card | 4 1 × Console port 1 × USB port |
| Debugging | 1 × RJ-45 port 1 × SFP port |
| Hot Plug | Yes |
| Power Supply | 4 × Power supply, 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0 °C to +45 °C (+32 °F to +113 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Consumption | Full load: 2470 W |
| Performance | |
| Layer | Layer 3 |
| Management Type | Yes |
| Switching Capacity | 384 Tbps |
| Packet Forwarding Rate | 72000 Mpps |
| Packet Buffer Size | 288 Mbit |
| Jumbo Frame | 13312 Byte |
| MAC Table Size | 498K |
| VLAN Number | 4094 |
| VLAN Interface | 4094 |
| IPv4 Routes | 512K |
| Dynamic ARP | 88K IEEE802.3; IEEE802.3u; IEEE802.3ab; IEEE802.3z; |
| Communication Standard | IEEE802.3x |
| Feature | |
| Ethernet Loop Protection | STP/RSTP/MSTP/ERPS/PVST |
| VLAN Function | Yes Static link aggregation |
| Link Aggregation | Dynamic link aggregation Multi-chassis link aggregation IEEE 802.3x flow control |
| IEEE 802.3x Flow Control | Priority-based flow control IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping |
| Multicast | PIM-SM/PIM-DM/PIM-SSM MSDP |
| Reliability | VRRP DLDP ARP Dynamic ARP Inspection |
| ARP | ARP anti-attack ARP source-suppression ARP Detection DHCP Client DHCP Snooping |
| DHCP Function | DHCP Relay DHCP Server Hierarchical user management and password protection AAA authentication support RADIUS authentication HWTACACS SSH2.0 Port security IP Source Guard 802.1X authentication and centralized MAC address authentication |
| Security | Portal authentication DHCP snooping Dynamic ARP detection BPDU guard and root guard uRPF IP/Port/MAC binding Plaintext authentication and MD5 authentication for OSPF and RIPv2 packets Public Key Infrastructure (PKI) |
| QoS/ACL | QoS/ACL |
| IPv6 | Yes FTP; TFTP; Xmodem |
| Equipment Management | SNMP v1/v2/v3 RMON |
| General | |
| Statics Protection | Contact discharge: 6 kV Common mode: 2 kV |
| Lighting Protection | Differential mode: 1 kV 440 mm × 520 mm × 442 mm (17.32" × 20.47" × 17.40") |
| Product Dimensions | (L × W × H) 795 mm × 690 mm × 615 mm (31.30" × 27.17" × 24.21") |
| Packaging Dimensions | (L × W × H) |
| Installation | Rack mount |
| Ordering Information | |
| Type | Model Description 1.25G 1310nm, 20km, LC, Single- GSFP-1310-20-SMF mode[optional] 1.25G 1550/1310 nm, 20 km, LC, Single- GSFP-1310R-20-SMF mode[optional] 1.25G 1310/1550 nm, 20 km, LC, Single- GSFP-1310T-20-SMF mode [optional] 155M 1310/1550 nm, 20 km, LC, Single- SFP-1310T-20-SMF mode [optional] 155M 1550/1310 nm, 20 km, LC, Single- SFP-1310R-20-SMF mode [optional] 10G 850 nm, 300m, LC, Multi-mode TSFP-850-MMF [optional] |
| SFP module | 1.25G 850 nm, 500 m, LC, Multi-mode GSFP-850-MMF [optional] 155M 850 nm, 2km, LC, Multi-mode SFP-850-MMF [optional] 10G 1270/1330 nm, 20 km, LC, Single- TSFP-1270T-20-SMF mode [optional] 10G 1330/1270 nm, 20 km, LC, Single- TSFP-1270R-20-SMF mode [optional] QSFP-1310-10-SMF SFP Optical Modul QSFP-850-MMF SFP Optical Modul S10506-MPU Supervisor Engine Module S10506-NET Switch Fabric Card S105-PWR1600 Power Supply S10506-FAN Fan Tray |
| Dimensions (Mm[Inch]) | |
| 441.7[17.39] | 570.0[22.44] 72.0[2.83] |
