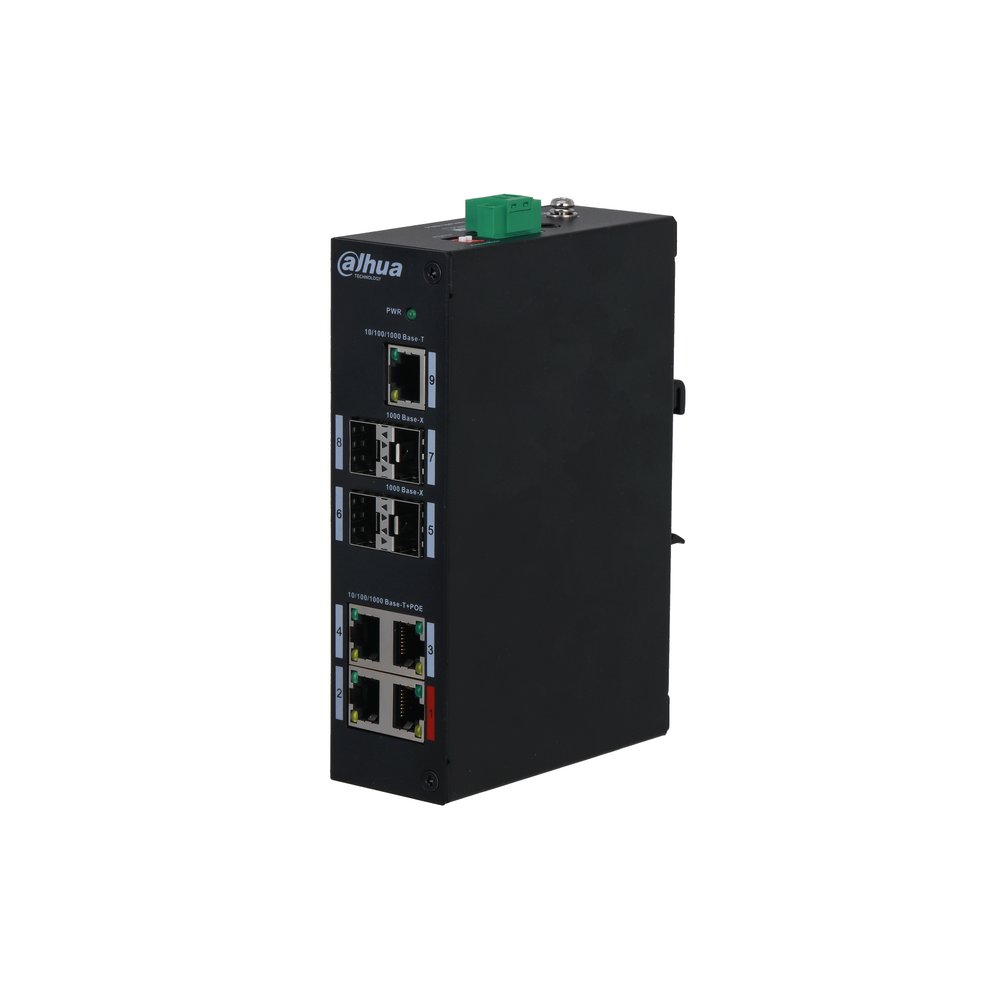

Switch hardened unmanaged con 9 porte Gigabit (4 10/100/1000 Mbps PoE <96 W + 1 10/100/1000 Mpbs uplink + 4 SFP 1000 Mbps uplink), capacità switching 33 Gbps, rate inoltro pacchetti 13.39 Mpps, red port 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 48-57 Vdc
Datasheet
Manuali
| Hardware Feature | |
| Ethernet Port | Port 5-8 4 × SFP 1000 Mbps (uplink) : Port 9 1 × RJ45 10/100/1000 Mbps (uplink) : Port 1 ≤ 90 W, Port 2-4 ≤30 W, Total≤120 W |
| PoE Power Consumption | Idling 2 W : |
| Power Consumption | Full load 96 W : IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3az/IEEE |
| Standard | 802.3ab |
| Poe | |
| Power Supply Pin | 1,2,4,5 (V+),3,6,7,8 (V-) |
| Long Distance | 250 m long distance PoE transmission |
| PoE Power Management | Yes |
| PoE Watchdog | Yes |
| Performance | |
| Switching Capacity | 33 Gbps |
| Packet Forwarding Rate | 13.39 Mpps |
| Packet Buffer Memory | 1.75 Mbit |
| Flow Control | Enable by default |
| Working Temperature | –30 °C to +65 °C (-22 °F to +149 °F) |
| Application Humidity | 5%~95% (RH) |
| General | |
| Power Input | 48 V-57 V DC Common mode 4 kV |
| Lighting Protection | Differential mode 2 kV Air discharge 8 kV |
| ESD Protection | Contact discharge 6 kV |
| Wall-mount Installation | Yes |
| Anti-theft Lock Hole | Yes |
| Weight | 0.67 kg (1.48 lb) |
| Dimension | 150mm × 110mm × 42mm (5.91" × 4.33" × 1.65") |
| Transmission Performance: | |
| CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m | Load Capacity(W) Bandwidth(Mbps) |
| Cable(m) | 71.3 1000 |
| 100 | 62 10 |
| 150 | 51 10 |
| 200 | 40 10 |
| 250 | 53 1000 |
| 100 | 50 10 |
| 150 | 47 10 |
| 200 | 37 10 |
| 100 | 25.5 1000 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
| Dimensions (Mm[Inch]) | |
| 42.0 | 100.0 [3.94] |
| Ordering Information | |
| SFP module | GSFP-1310-20-SMF 1.25G 1310nm,20km,LC, Single-mode GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
