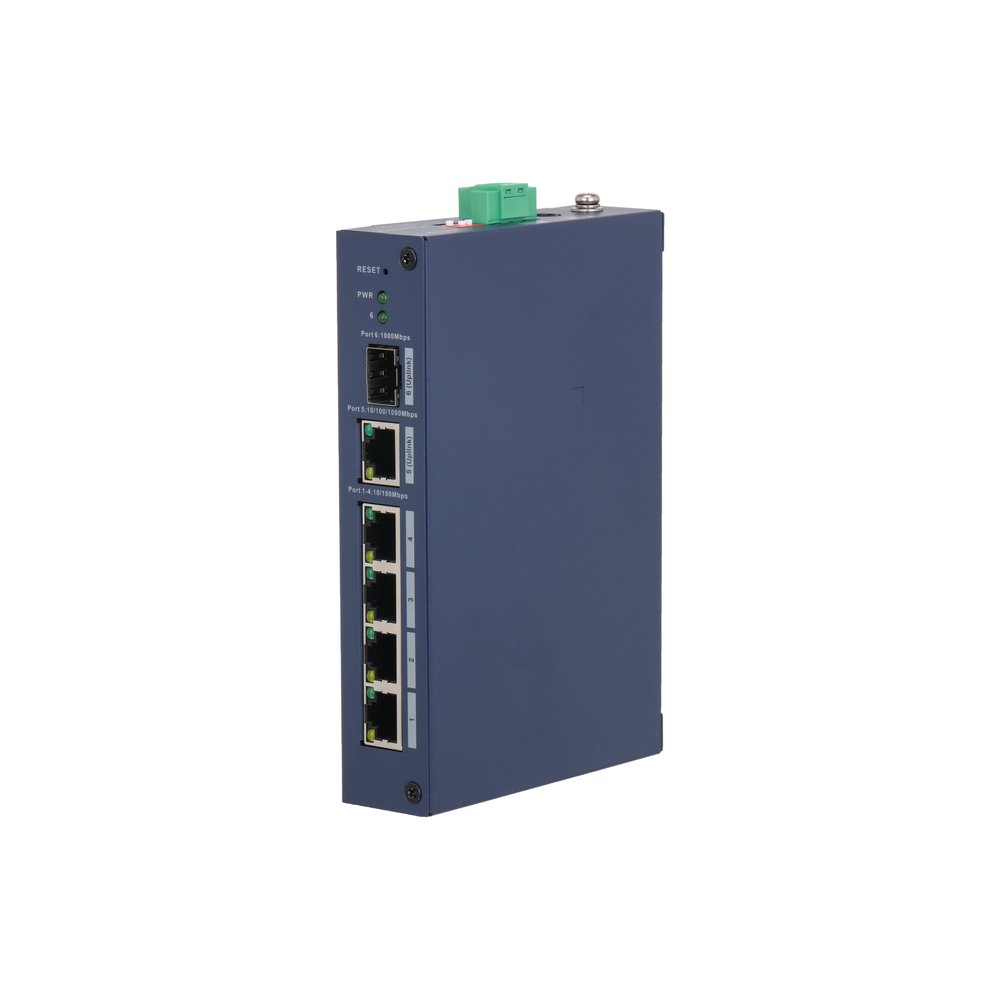

Switch hardened IP30, IK06 Cloud Managed 6 porte (4 RJ-45 10/100 Mbps + 1 RJ-45 10/100/1000 Mbps uplink + 1 SFP 1000 Mbps uplink), capacità switching 4.8 Gbps, rate inoltro pacchetti 3.57 Mpps, 12 Vdc <2.6 W, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding Rate | 3.57 Mpps Port 1-4: 4 × RJ-45 10/100 Mbps |
| Description of Function | Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink) |
| Slots | Port 6: 1 × SFP 1000 Mbps (uplink) |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Protection | IP30;IK06 |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing External dual power supply (terminal block and DC): 12 |
| Power Supply | VDC, 1 A Idling: 1.2 W |
| Power Consumption | Full load: 2.6 W Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV |
| Lightning Protection | Differential mode: 2 kV |
| Net Weight | 0.32 kg (0.71 lb) |
| Gross Weight | 0.58 kg (1.28 lb) 154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") |
| Product Dimensions | (L × W × H) 299 mm × 164 mm × 72 mm (11.77" × 6.46" × 2.83") (L |
| Packaging Dimensions | × W × H) |
| Casing Material | Iron |
| Installation | DIN rail mount; desktop mount |
| Poe | |
| PoE | No |
| Hardware | |
| DIP Switch | ports 1-4, but allows ports 1-4 to send its traffic to the uplink ports 5-6. These uplink ports can also send their traffic to 1-4. Storm control: Limits the speed of all the ports to 5 Mbps. |
| Reset Button | 1 |
| Performance | |
| MTBF | 2,543,621.84 hours |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K |
| Communication Standard | 802.3z |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | Port-based VLAN IEEE 802.3x Flow Control Unknown Unicast Suppression |
| Port Feature | Multicast Storm Control Broadcast Storm Control Port Self-loop Detection Local Port Mirroring |
| Mirror | N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation Web Management Cloud Management |
| Equipment Management | Logs Fault Alarm |
| General | |
| Packing List | 1 × Power Adapter 1 × Terminal Block |
| Ordering Information | |
| Type | Model Description 1.25G 1310/1550nm,20km,LC, Single- GSFP-1310T-20-SMF mode 1.25G 1550/1310nm,20km,LC, Single- GSFP-1310R-20-SMF mode |
| SFP module | GSFP-1310-20-SMF 1.25G 1310nm,20km,LC, Single-mode GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode |
