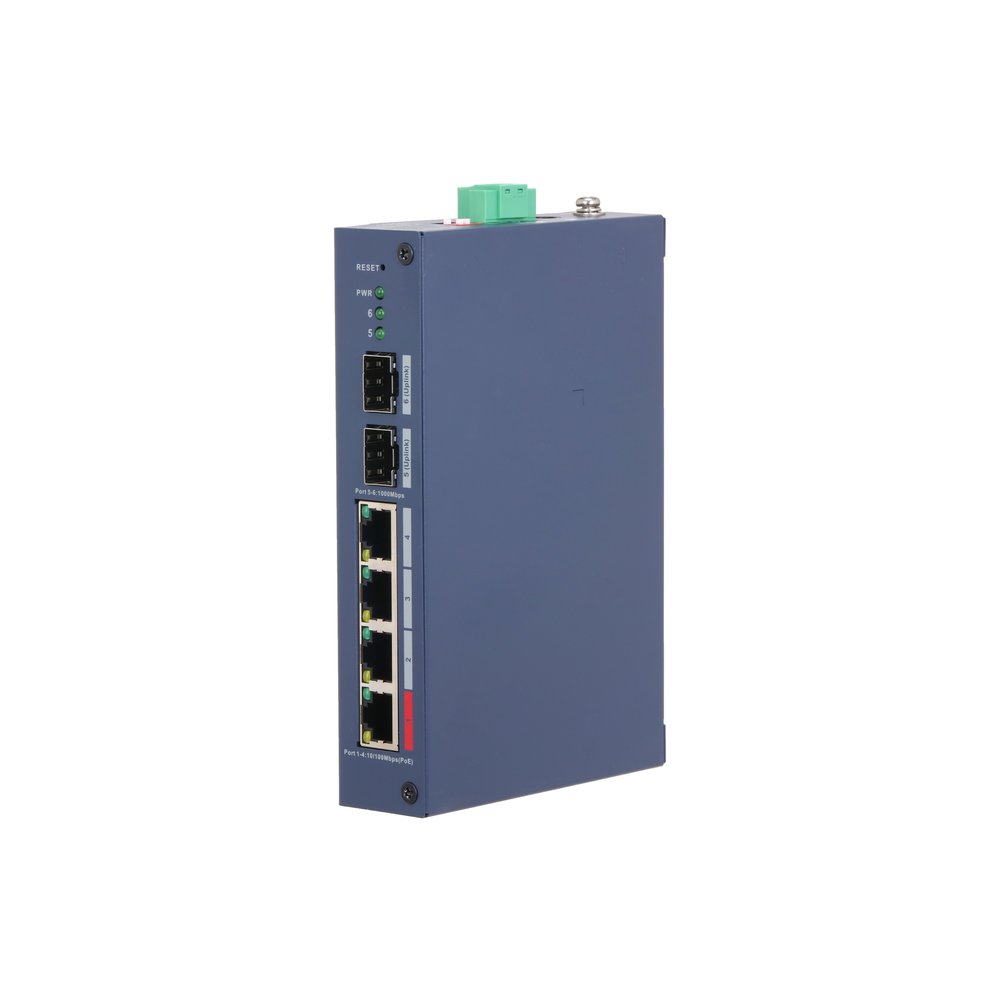

Switch hardened IP30 IK06 Cloud managed 6 porte (4 PoE 10/100 Mbps <90 W + 2 Gigabit SFP 1000 Mbps uplink), capacità switching 4.8 Gbps, rate inoltro pacchetti 3.57 Mbps, red port BT 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 48-57 Vdc, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding Rate | 3.57 Mpps |
| Description of Function | Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) |
| Slots | Port 5-6: 2 × SFP 1000 Mbps (uplink) |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Protection | IP30; IK06 |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing External dual power supply (terminal block and DC): |
| Power Supply | 48–57 VDC, 2–1.69A Idling: 1.3 W |
| Power Consumption | Full load: 92.7 W Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV |
| Lightning Protection | Differential mode: 2 kV |
| Net Weight | 0.32 kg (0.71 lb) |
| Gross Weight | 0.87 kg (1.92 lb) 154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") |
| Product Dimensions | (L × W × H) 266 mm × 239 mm × 77 mm (10.47" × 9.41" × 3.03") (L |
| Packaging Dimensions | × W × H) |
| Casing Material | Iron |
| Installation | DIN rail mount; desktop mount |
| Poe | |
| PoE | Yes |
| PoE Power | Port 2-4≤30 W, port 1≤90 W, total≤90 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Power Consumption | PoE power consumption management; PoE power on/ |
| Management | off; turns off PoE if overload is detected; Green PoE |
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
| Long Distance PoE | Yes |
| Hardware | |
| DIP Switch | reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps. PoE Watchdog: Monitors the flow of data traffic for ports 1–4. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted. |
| Reset Button | 1 |
| Performance | |
| MTBF | 1,852,444.63 hours |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE |
| Communication Standard | 802.3z |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | Port-based VLAN IEEE 802.3x Flow Control Unknown Unicast Suppression |
| Port Feature | Multicast Storm Control Broadcast Storm Control Port Self-loop Detection Local Port Mirroring |
| Mirror | N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation Web Management Cloud Management |
| Equipment Management | Logs Fault Alarm |
| General | |
| Packing List | 1 × Power Cord 1 × Power Adapter 1 × Terminal Block |
| Ordering Information | |
| Type | Model Description 1.25G 1310/1550nm,20km,LC, Single- GSFP-1310T-20-SMF mode 1.25G 1550/1310nm,20km,LC, Single- GSFP-1310R-20-SMF mode |
| SFP module | GSFP-1310-20-SMF 1.25G 1310nm,20km,LC, Single-mode GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode |
