Switch Cloud managed 10 porte Gigabit (8 PoE <110 W + 2 SFP)
201,91 € IVA inclusa
Switch Cloud managed 10 porte Gigabit (8 PoE <60 W)
123,83 € IVA inclusa
Saldi

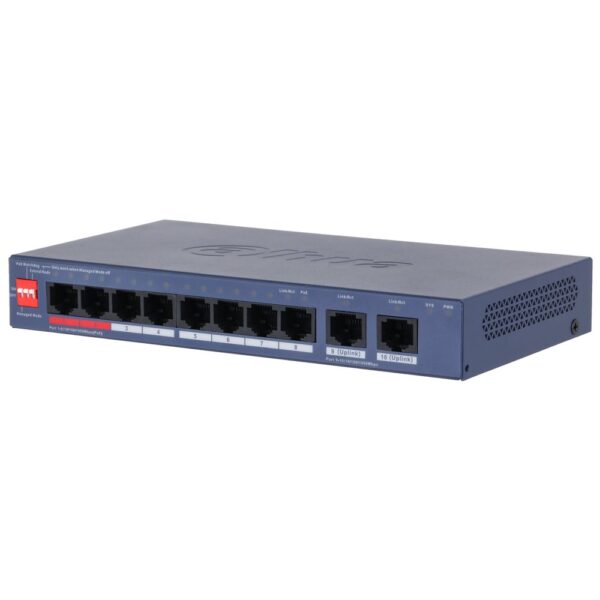

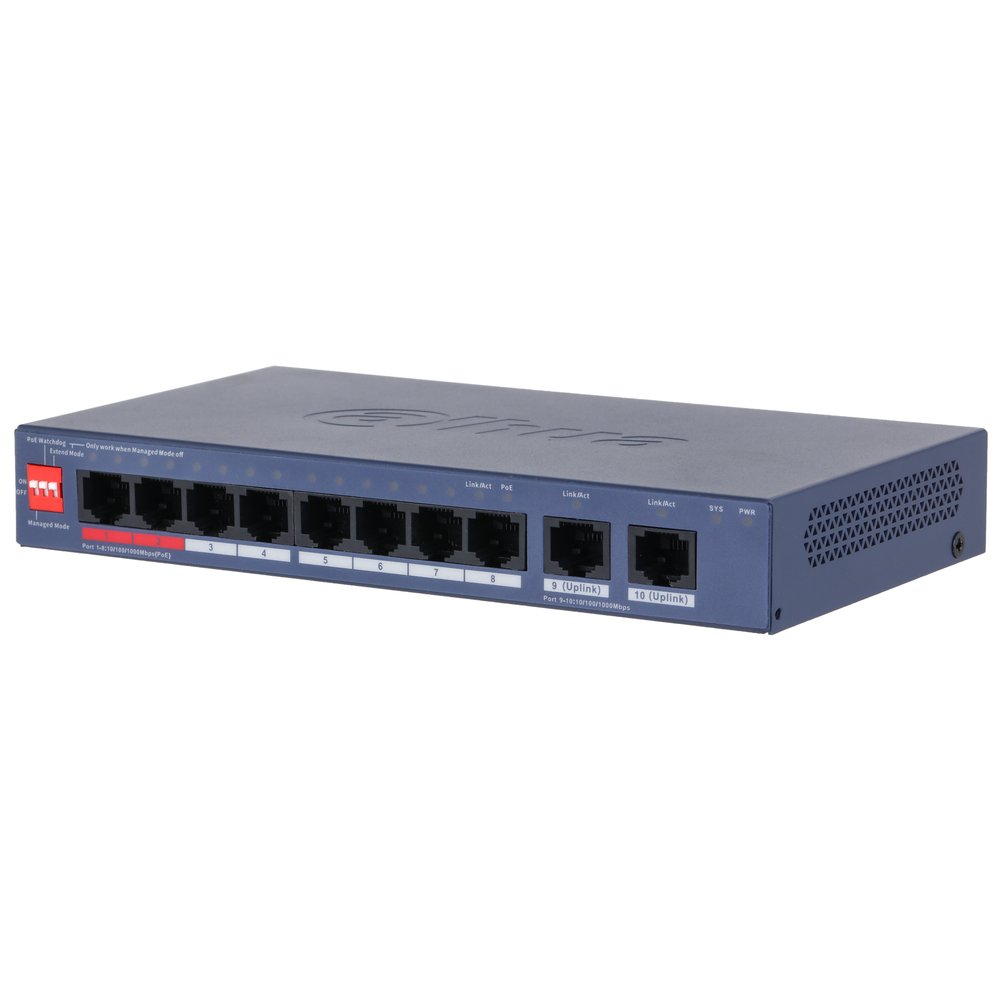

Switch Cloud managed 10 porte Gigabit (8 PoE <110 W)
186,66 € IVA inclusa
Switch Cloud managed con 10 porte Gigabit (10/100/1000 Mbps, 8 PoE <110 W + 2 uplink), capacità switching 20 Gbps, rate inoltro pacchetti 14.88 Mpps, 2 red port BT 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 54 Vdc, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Description of Function | Port 1-8: 8 × RJ45 10/100/1000 Mbps (PoE) |
| Slots | Port 9-10: 2 × RJ45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +75 °C (–40 °F to +167 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing （ ） |
| Power Supply | External Power Adapter 54 V, 2.22 A Idling: 5.7 W |
| Power Consumption | Full load: 115 W Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV Common mode: 6 kV |
| Lightning Protection | Differential mode: 1 kV |
| Net Weight | 0.36 kg (0.79 lb) |
| Gross Weight | 1.13 kg (2.49 lb) 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") |
| Product Dimensions | (L × W × H) 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L |
| Packaging Dimensions | × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| Poe | |
| PoE | Yes |
| PoE Power | Port 3-8≤30 W, port 1-2≤90 W, total≤110 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Power Consumption | PoE power consumption management; PoE power on/ |
| Management | off; turns off PoE if overload is detected ： （ ） （ ） Port 1-2 1,2,4,5 V+ ,3,6,7,8 V- |
| PoE Pin Assignment | ： （ ） （ ） Port 3-8 1,2, V+ ,3,6, V- |
| Long Distance PoE | Yes |
| Hardware | |
| DIP Switch | works when Managed Mode is Off) Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |
| Reset Button | 1 |
| Performance | |
| MTBF | 2,482,955 hours |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15360 Byte |
| MAC Table Size | 8K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE |
| Communication Standard | 802.3az; IEEE 802.3ad |
| VLAN Number | 32 |
| Feature | |
| Ethernet Loop Protection | STP; RSTP |
| VLAN Function | IEEE 802.1Q VLAN |
| Link Aggregation | Static Aggregation IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control |
| Port Feature | Broadcast Storm Control MAC+Port Binding Loop Prevention Local Port Mirroring |
| Mirror | N:1 Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation Web Management Cloud Management |
| Equipment Management | Logs Fault Alarm |
| General | |
| Packing List | 1 × Power Cord 1 × Power Adapter |
| Transmission Performance | |
| Cable(m) | Load Capacity(W) Bandwidth(Mbps) |
| Ieee802.3Bt 90W | |
| 100 | 71.3 1000 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| Hi-Poe 60W | |
| 100 | 46 1000 |
| 150 | 42 10 |
| 200 | 37 10 |
| 250 | 32 10 |
| Ieee802.3At 30W | |
| 100 | 25.5 1000 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 24 10 |
| Ordering Information | |
| Type | Model Description 10-Port Cloud Managed |
| PoE Switch | DH-CS4010-8GT-110 Desktop Gigabit Switch with 8-Port PoE |
| Dimensions (Mm[Inch]) | |
| 99.8 | 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
Informazioni addizionali
