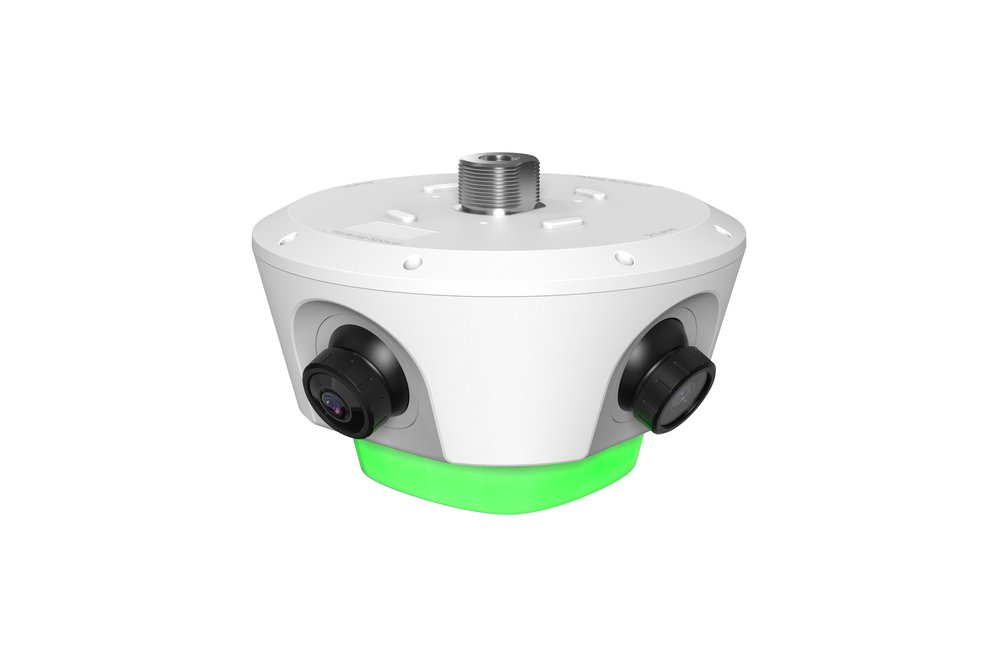

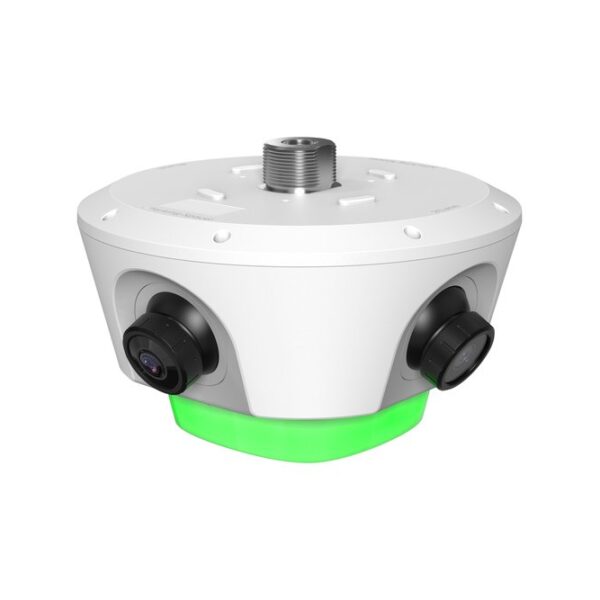

Telecamera parking spot (12 posti) IP54, sensore CMOS 1/2.7", risoluzione 5 MP a 25fps, H.265, 4 ottiche fisse 3.6 mm, 1 porta RJ-45 100/1000 Mbps, 1 porta RS485, 3D NR, WDR 100 dB, monitoraggio stato 12 parcheggi, indicatore luminoso con 7 colori (rosso, giallo, blu, verde, azzurro, bianco, rosa), riconoscimento veicoli, parcheggio illegale, OSD, alimentazione 12-48 Vdc/PoE+ <24 W
| Basic | |
| Image Sensor | 1/2.7" CMOS Parking space detection:12 |
| Max.Detection Spot | Parking space detection+ License Plate recognition: 8 1, 7 customizable colors (red, yellow, blue, green, cyan, |
| Indicator Light | white, and pink) |
| Electronic Shutter Speed | Auto/Manual 1/25 s–1/10,000 s |
| Pixel | 5 MP 2880 (H) × 1620 (V) (OSD black background is not |
| Image Resolution | calculated in the pixels) 5 MP (2880×1620); 1080p (1920 × 1080); 720p (1280 × |
| Video Resolution | 720) |
| Noise Reduction | 3D NR |
| WDR | 100 dB Auto; Outdoor; Partial white balance; Manual; Natural; |
| White Balance | Street lamp |
| Video Compression | H.265;H.264B;H.264M;H.264H;MJPEG |
| Image Encoding Format | JPEG H.264: 2,488 kbps–30,720 kbps; |
| Video Bit Rate | H.265: 2,488 kbps–30,720 kbps; MJPEG: 7,465 kbps–30,720 kbps PAL: Main stream (1920 × 1080@25 fps, 1280 × |
| Video Frame Rate | 720@25 fps), sub stream (704 × 576@25 fps) |
| Edge Enhancement | Yes Auto; Manual (Select from shutter values or customize |
| Exposure Mode | shutter range) Channel 1 (Parking Space): 3.6 mm Channel 2 (Lane): 3.6 mm Channel 3 (Parking Space): 3.6 mm Channel 4 (Lane): 3.6 mm: Channel 1 (Parking Space): |
| Field of View | H: 90.3°; V: 47.8°; D: 108.6°; Channel 2 (Lane): H: 90.3°; V: 47.8°; D: 108.6°; Channel 3 (Parking Space): H: 90.3°; V: 47.8°; D: 108.6°; Channel 4 (Lane): H: 90.3°; V: 47.8°; D: 108.6° Vertical adjustable (depression angle of 43°–0°) |
| Lens Angle | Horizontal adjustable (from left 20° to right 20 °) 20° clockwise to 20° counterclockwise Recogniz |
| Lens | |
| DORI Distance | 3.6 mm 78.0 m 31.2 m 15.6 m 7.8 m Channel 3 (Parking Space): 3.6 mm Channel 4 (Lane): 3.6 mm |
| Built-in Speaker | Yes, built-in speaker |
| Function | |
| Security | binding; HTTPS encryption; IEEE 802.1x; network access control |
| Shutter Mode | Single shutter Time; address; parking space No.; parking space status; |
| OSD Overlay | plate number; vehicle model; vehicle logo and color |
| Alarm Event | Illegal access, security error and other events |
| Auto Registration | Yes |
| Image Tampering | Yes. Watermarks can be added to videos and images for |
| Prevention | verification. Voice broadcast (adjustable volume and customizable |
| Voice Broadcast | content) |
| Network Protocol | HTTP;HTTPS;TCP/IP;RTSP;NTP;DHCP |
| API | Yes |
| SDK | Yes |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;ITSAPI |
| Intelligence | |
| Vehicle Recognition | and collects metadata for unlicensed vehicles. Vehicle recognition rate is over 99.5%, and the recognition rate for European vehicle plates is over 98% . |
| Parking Spot Status | Yes, indicator color is customizable |
| Detection | Detects illegal parking events including vehicle occupying two parking spaces, non-allowlist vehicle |
| Illegal Parking Detection | occupying a parking space, small vehicle parked in a large vehicle's space and parking in a restricted area. |
| Non-motor Vehicle | Supports the detection of non-motor vehicle |
| Detection | occupancy. |
| Capture Triggered by | Yes |
| Smoke and Fire Detection | Supports fire and smoke detection. Detects non-motor vehicles, traffic cones, shopping |
| Unauthorized Occupation | carts and no parking signs. |
| Port | |
| RS-485 | 1 1 × RJ-45 Ethernet port, 100/1000 Mbps network |
| Network Port | transmission |
| Power Output | 12 VDC ± 10% voltage output, ≤ 1 A current output |
| General | |
| Power Supply | 12–48 VDC; PoE+ (802.3at) ＜ |
| Power Consumption | 24 W |
| Operating Temperature | –30 °C to +50 °C (–22 °F to +122 °F) |
| Storage Temperature | –35 °C to +55 °C (–31 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Storage Humidity | 10%–95% (RH), non-condensing |
| Protection | IP54 |
| Anti-corrosion Level | Basic Protection 200.6 mm × 202.4 mm × 131.2 mm (7.90" × 7.97" × |
| Product Dimensions | 5.17") (L × W × H) 250 mm × 250 mm × 200 mm (9.84" × 9.84" × 7.87") (L |
| Packaging Dimensions | × W × H) |
| Net Weight | 1.07 kg (2.36 lb) |
| Gross Weight | 1.83 kg (4.03 lb) |
| Installation | Ceiling mount; bracket mount |
| Lens | |
| Lens Type | Fixed-focal Channel 1 (Parking Space): 3.6 mm Channel 2 (Lane): 3.6 mm |
| Focal Length | Channel 3 (Parking Space): 3.6 mm Channel 4 (Lane): 3.6 mm |
| Ordering Information | |
| Type | Model Description DHI-ITC514-PH6D-Q22- Dahua 5MP Spot Detection |
| Spot Detection Camera | F36-POE |
