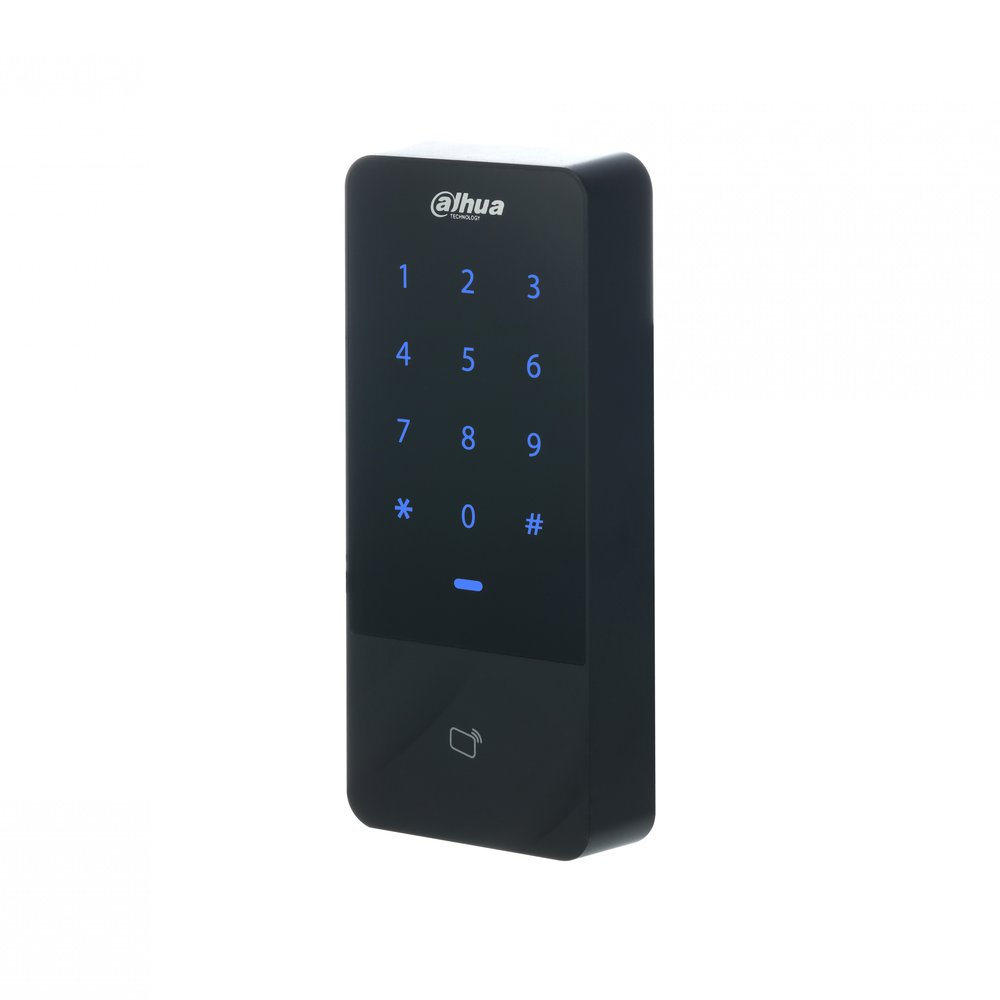

Lettore per controllo accessi standalone IP66, sblocco tramite card da 125 KHz e password, anche in combinazione, 1 porta LAN 10/100 Mbps, RS485 e Wiegand 26 / 34 (default) / 66, 1 uscita relè per controllo porta, 1 ingresso per sensore stato porta, 1 pulsante apertura porta, 30000 tessere, 30500 password, 60000 record, tastiera touch retroilluminata, alimentazione 12 Vdc <12 W
| System | |
| Main Processor | Embedded Processor |
| Button Type | Touch button |
| Network Protocol | TCP/IP |
| OSDP Protocol | Yes |
| Basic | |
| Product Type | Standalone |
| Buzzer | Yes |
| Backlight | Yes |
| Casing Material | PC |
| Function | |
| Verification Method | Card;Password;Remote |
| Period List | 128 groups |
| Holiday Period | 128 groups |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes Includes 1-channel RS-485 card reader and 1-channel |
| Peripheral Card Reader | Wiegand card reader |
| Issuing Card by Master Card | Yes |
| Multi-user Authentication | Yes |
| Auto Registration | Yes |
| Rfid | |
| Card Type | ID card |
| Performance | |
| Card Reading Distance | 0 mm–30 mm (0"–1.18") |
| User | |
| User (Card) Type | Normal user |
| Capacity | |
| User Capacity | 30,000 |
| Card Capacity | 30000 30,500 (Includes 30,000 user passwords and 500 public |
| Password Capacity | passwords) |
| Record Capacity | 60000 |
| Port | |
| RS-485 | 1 1 (Wiegand input is 26, 34 or 66 bits self-adaptive; |
| Wiegand | Wiegand output is 34 bits by default.) |
| Network Port | 1-channel 10/100 Mbps Ethernet port |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel |
| Power Output Port | 1 channel |
| Alarm | |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding | Yes |
| General | |
| Power Adapter | Optional DC 12 V 1 A (The access standalone does not supply power to the lock.) DC 12 V 2 A (The access standalone supplies power to |
| Power Supply | the lock. The current of the lock can only reach up to 1 A. If it exceeds, the current will be distributed based on the actual amount of current.) |
| Protection | IP66 ≤12 W (When the access standalone does not supply power to the lock, the power is ≤12W. When it does |
| Power Consumption | supply power to the lock, it is calculated based on the actual amount of power of the lock.) 142 mm × 62 mm × 23 mm (5.59" × 2.44" × 0.91") (H× |
| Product Dimensions | W × D) 195 mm × 135 mm × 56 mm (7.68" × 5.31" × 2.20") (H × |
| Packaging Dimensions | W × D) |
| Transport Package | 604 mm × 290 mm × 314 mm (23.78" × 11.42" × 12.36") (H× W × D) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–1,300 m (0 ft–4265.09 ft) |
| Operating Environment | Outdoor |
| Gross Weight | 244 g (0.54 lb) |
| Installation | Surface Mount |
| Ordering Information | |
| Type | Model Description Dahua ID Card Access |
| Access Standalone | DHI-ASI1201E-D-V1 Standalone |
| Dimensions (Mm[Inch]) | |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
