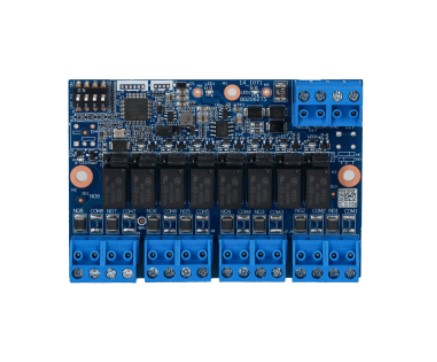

Modulo di espansione con 8 uscite allarme per ARC3800H, connessione tramite RS485, alimentazione 12 Vdc <1.8 W
| Port | |
| Alarm Output | 1, connected to a maximum of 300 m (984.25 ft) |
| RS-485 | cable typed RVV2 × 1.5 |
| Function | |
| Device Address | 1–8 (ARC3008) |
| Alarm Output Mode | Switch between NO and NC with jumper |
| Output Capacity | 30 VDC/500 mA |
| Update | Remote update by client software |
| General | |
| Power Supply | 12 VDC |
| Power Consumption | 1.8 W |
| Operating Temperature | –10 °C to +55 °C (+ 14 °F to + 131 °F) |
| Operating Humidity | 10%–90% (RH) 90.0 mm × 62.0 mm × 12.6 mm (3.54" × 2.44" × 0.5") |
| Product Dimensions | (L × W × H) |
| Net Weight | ≤ 1 kg (2.20 lb) |
