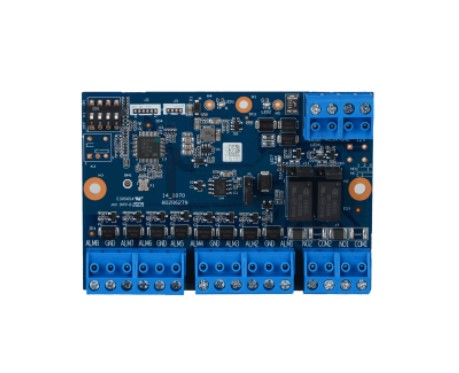

Modulo di espansione con 8 ingressi e 2 uscite allarme per ARC3800H, connessione tramite RS485, alimentazione 12 Vdc <1.2 W
| Port | |
| Alarm Output | 8 |
| Alarm Iutput | 1, connected to a maximum of 300 m ( 984.25 ft ) |
| RS-485 | cable typed RVV2*1.5 |
| Function | |
| Device Address | 1–8( ARC3008 ) NC, NO, 1EOL, 2EOL, 3EOL, INERTIAL(ARC3008), and |
| Zone Terminations | IMPULSE(ARC3008) |
| EOLR | 2K7, 4K7, and 6K8 |
| Alarm Output Mode | Switch between NO and NC with jumper |
| Output Capacity | 30 VDC/500 mA |
| Update | Remote update by client software |
| General | |
| Power Supply | 12 VDC |
| Power Consumption | 1.2 W |
| Operating Temperature | –10°C to +55°C (+ 14°F to + 131°F) |
| Operating Humidity | 10%–90% ( RH ) 90.0 mm × 62.0 mm × 12.6 mm ( 3.54" × 2.44" × 0.5" |
| Product Dimensions | ) ( L × W × H ) |
| Net Weight | ≤1 kg ( 2.20 lb ) |
