Modulo di ingresso/uscita indirizzabile (senza base), 24 Vdc, conforme alla norma EN 54-18
| Electrical | |
| Working Voltage | 24V DC |
| Current | Monitoring current: ≤ 150μA Operating current: ≤ 9mA •Input indicator: Red LED flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned, remains lit after receiving feedback |
| Indicator | •Output indicator: Red LED is constantly off when works normally, and flashes once every 2 seconds when malfunctioned, remains lit after receiving start signal |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Communication | ≤ 1500 m |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Construction | |
| Color | White |
| Dimensions | (with base) 90 mm × 90 mm × 37 mm (3.54" × 3.54" × 1.46") |
| (with base) | 120 g (0.26 lb) |
| Compliance Standard | EN54-18 |
| Ordering Information | |
| Type | Model Description |

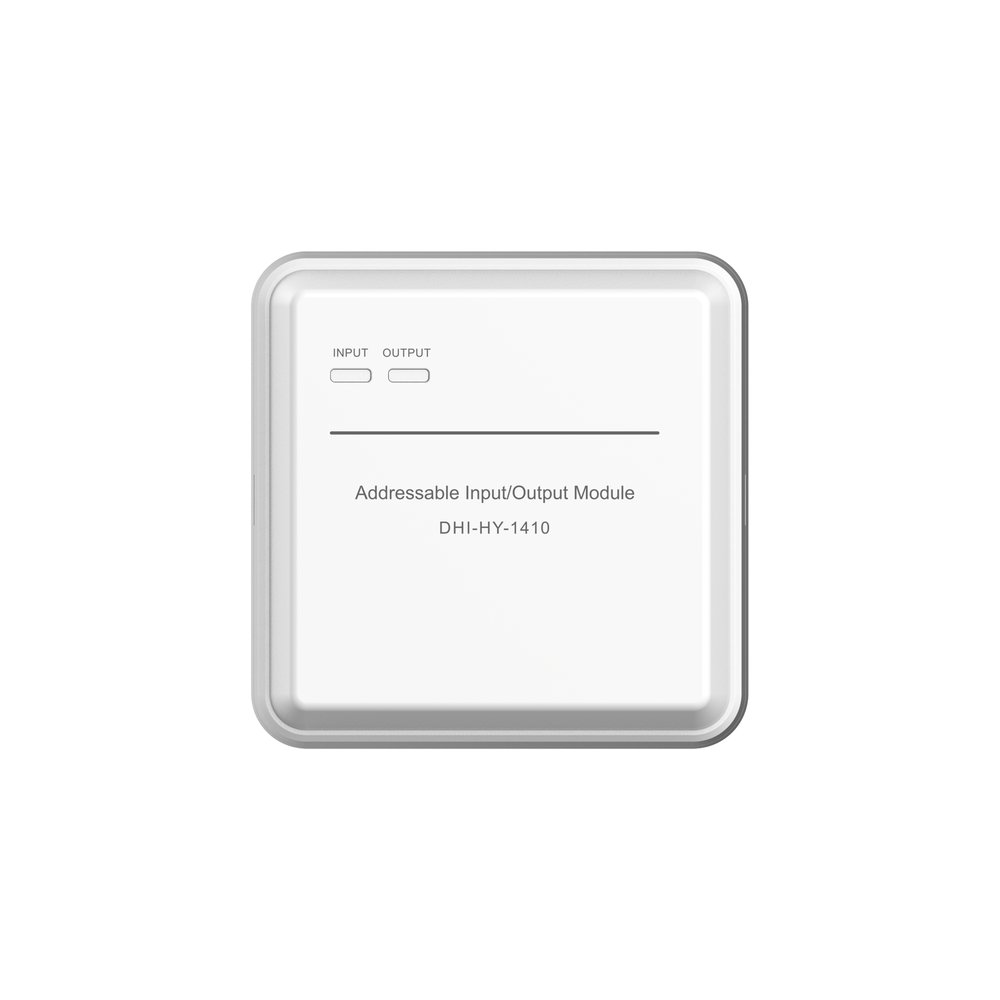

| Addressable Input / Output | Addressable Input / Output DHI-HY-1410 |
| Module | Module |
