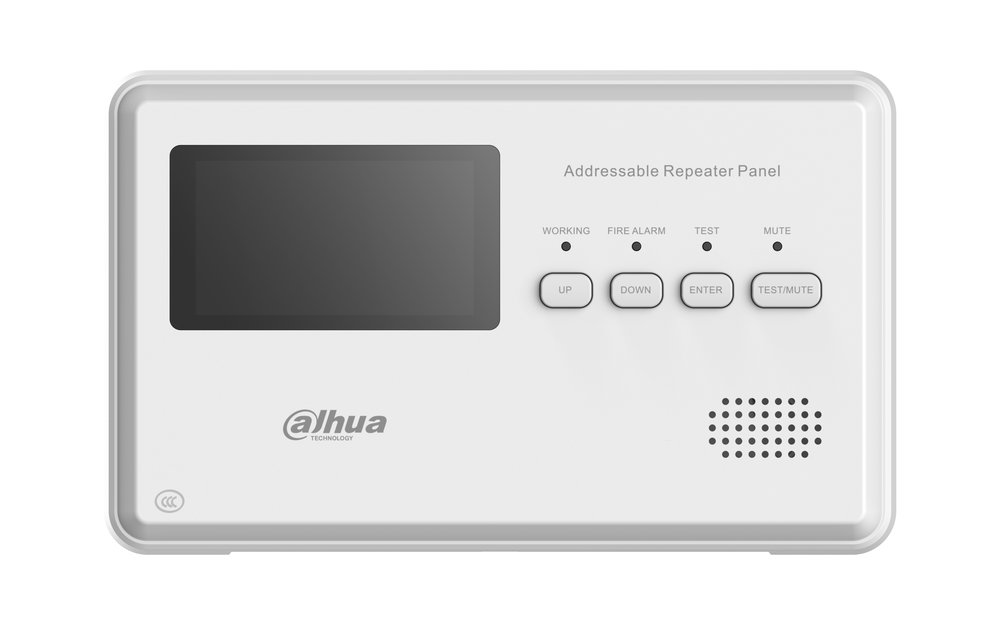

Pannello ripetitore indirizzabile, 24 Vdc, display LCD 64×128, 4 tasti meccanici (UP – DOWN – ENTER – TEST/MUTE), 4 indicatori luminosi (WORKING – FIRE ALARM – TEST – MUTE), conforme alla norma EN 54-2
| Electrical | |
| Working Voltage | DC24V |
| Current | Monitoring current: ≤ 2mA Maximum operating current: ≤ 10mA Working: Green indicator flashes every 6 s during polling, flashes quickly during malfunctioned Alarm: Red indicator remains lit during alarm |
| Indicator | Self-test: Yellow indicator remains lit during self-test Mute: Yellow indicator remains lit when Test/Mute Button is pressed |
| Display Capacity | 999 pieces of alarm information |
| Display | |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Communication | 1500 m (4921.26 ft) |
| Alarm Sound Pressure | 65dB–115dB (A) @ 1m |
| Operating Temperature | –10°C to +40°C (+14°F to +104°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Construction | |
| Color | White |
| Dimensions | (with base) 180.0 mm × 110.0 mm × 32.0 mm (7.09" × 4.33" × 1.26") |
| General | |
| Weight | (with base) 270 g (0.60 lb) |
| Compliance Standard | EN54-2 |
| Ordering Information | |
| Type | Model Description |
| Addressable Repeater Panel | DHI-HY-1330 Addressable Repeater Panel Pictures in the document are for reference only, and the actual product shall prevail. |
