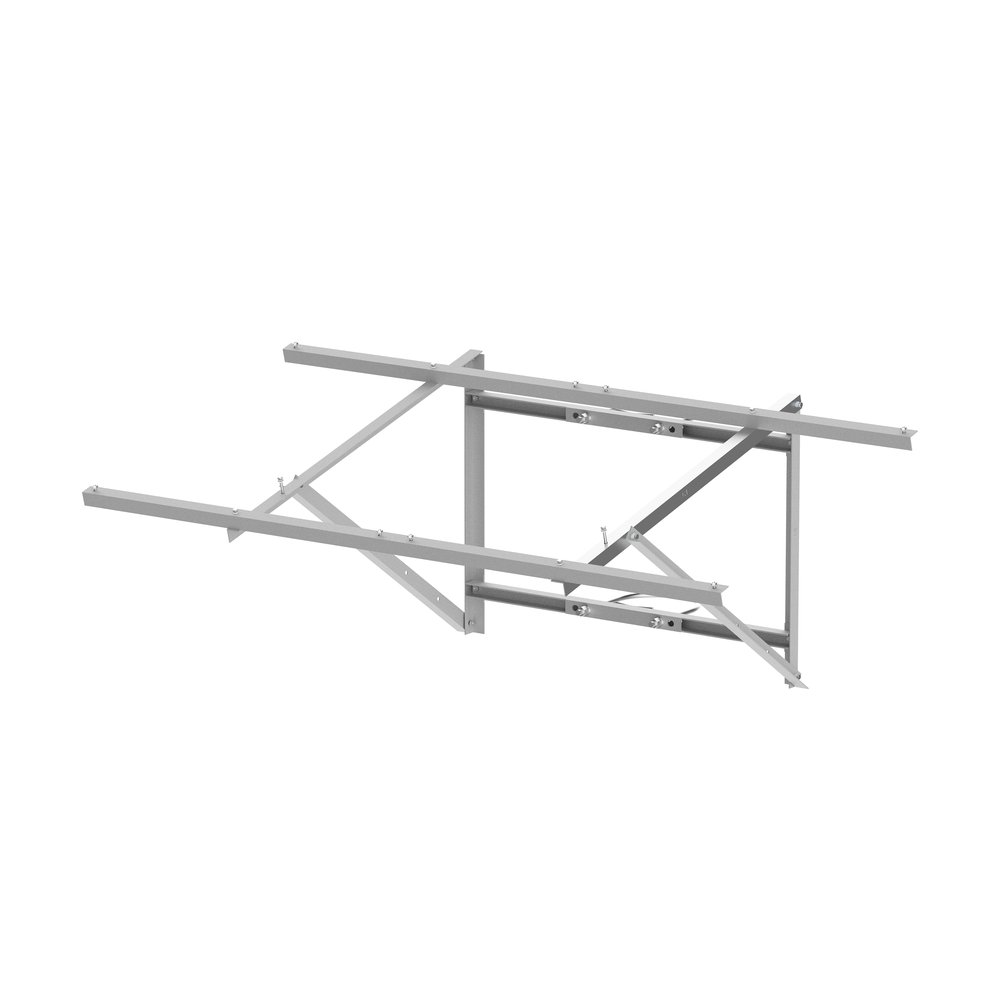

Struttura portante per 2 pannelli solari PFM371-M120/180
Datasheet
Disegni
| Installation | Pole mount |
| Material | Q235 |
| Color | Sliver Gray |
| Pole Diameter | 150 mm–220 mm |
| Adjustable Inclination Angle | 15°; 30°; 45° |
| Number of supported solar | 2 pcs × 120 W solar panels or 2 pcs × 180 W solar |
| panels | panels |
| Net Weight | 34 kg (74.96 lb) |
| Gross Weight | 36 kg (79.37 lb) 2040 mm × 1361.9 mm × 804.5 mm (80.31" × 53.62" |
| Product Dimensions | × 31.67") 2179 mm × 310 mm × 210 mm (85.79" × 12.20" × |
| Packaging Dimensions | 8.27") |
| Operating Temperature | –40 °C to +85 °C (–40 °F to 185 °F) |
| Operating Humidity | < 95% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to 140 °F) |
| Storage Humidity | < 95% (RH) |
| Ordering Information | |
| Type | Model Description |
| Solar Series | DH-PFM376-F 120W/180W Solar Mount |
