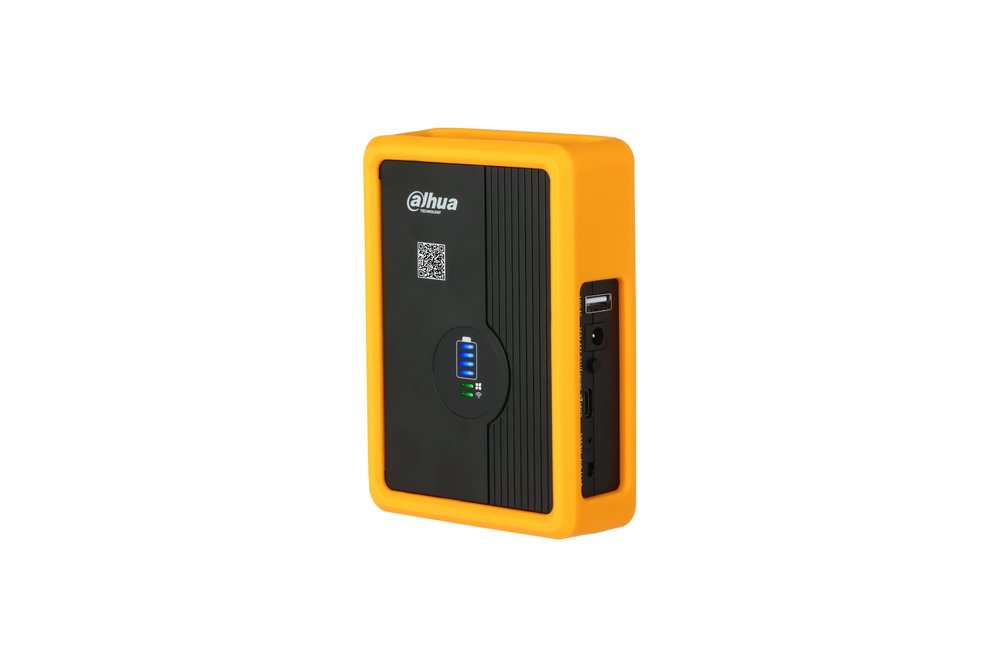

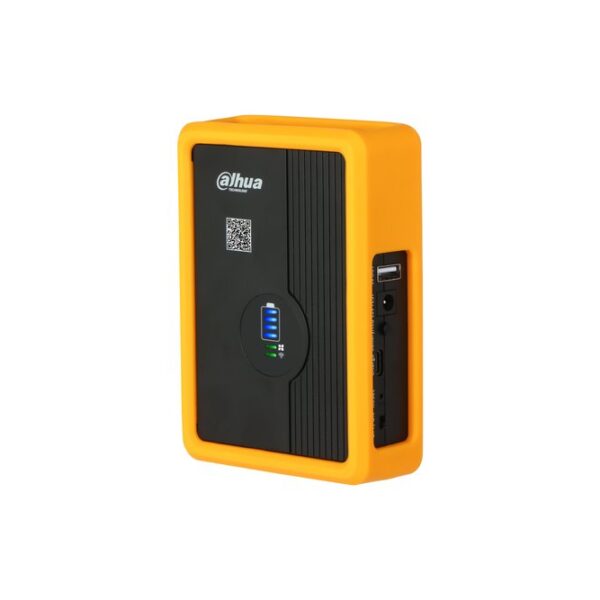

Tester IP/Wi-Fi
Tester multifunzione IP/Wi-Fi 2.4G test per telecamere IP (fino a 8 MP), alimentazione per telecamere 12 Vdc, PoE <16 W, 1 porta Type C, 1 porta USB, 4 porte di rete 100 Mbps, batteria al litio 3.7V
Datasheet
| System | |
| Button | Power Button 1 × 35 lm 5 mm LED light |
| LED | 1 system indicator 1 Wi-Fi indicator |
| Ipc Test | |
| Camera Access | ONVIF and Dahua private protocol |
| Resolution | 1 MP; 1.3 MP; 2 MP; 3 MP; 4 MP; 5 MP; 6 MP; 8 MP |
| Initialization | Yes Live video, zoom, and decoding through H.264 and |
| Image | H.265. Supports changing the IPC resolution, IP address and |
| Function Control | device password. You can also control the IPC and restore it to its default factory settings. |
| Wireless | |
| Wi-Fi Hotspot | Yes |
| Network | |
| Network Port | 1 × PoE output port that can be used as a 100 Mbps Ethernet port. The max power is 16 W |
| Power Supply | |
| Power Supply | Type C Built-in 3.7 V polymer lithium battery with a capacity |
| Battery | of 7800 mAh. It can work for up to 22 hours on a full charge, without any external power supply. |
| Protection | |
| Surge Protection Grade | Differential mode: ±1 kV Air discharge: 8 kV; |
| Statics Protection | Contact discharge: 6 kV |
| Structure | |
| Appearance Color | Black; Includes a yellow leather case. 130 mm × 95 mm × 37 mm (5.12" × 3.74" × 1.46") (L × |
| Product Dimensions | W × H) 145 mm × 105 mm × 65 mm (5.71" × 4.13" × 2.56") (L × |
| Packaging Dimensions | W × H) |
| Packaging Method | 1 pcs in 1 carton, and 30 cartons in 1 package |
| Net Weight | 0.332 kg (0.73 lb) |
| Gross Weight | 0.385 kg (0.85 lb) |
| Environment | |
| Operating Temperature | –10 °C to +50 °C (+14 °F to +122 °F) |
| Operating Humidity | 30%–90% (RH) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 30%–90% (RH) |
| Ordering Information | |
| Type | Model Description |
| Integrated Mount Tester | DH-PFM2900 Integrated Mount Tester |
