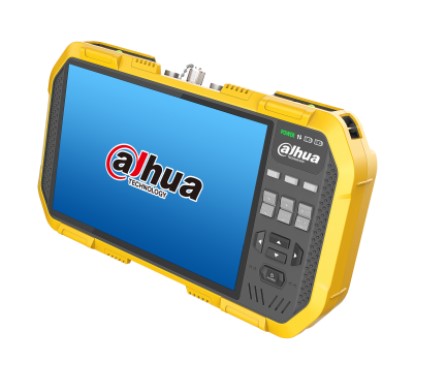

Tester 7" Wi-Fi/IP/analog
Tester multifunzione Wi-Fi 2.4/5 G a base Linux, display 7" TFT HD, test per telecamere IP, HDCVI, TVI, AHD, CVBS, analizzatore RS485, wireless, cavi di rete, HDMI, audio, alimentazione, rete, misuratore potenza ottica, alimentazione 12 Vdc/PoE/batteria
Datasheet
| System | |
| Operation System | Linux |
| Language | 10 languages including Chinese and English |
| Operation mode | Touchscreen |
| Auto Standby/Power Off | Off/5–60min |
| Keyboard Sound | On/Off 7-in 16.7M color TFT touch screen, |
| Display Screen | RGB interface lcd display: 1920 ×1200, backlight brightness adjustable Keypad: 13 keys |
| Button | Others: On–off button |
| LED | 2 |
| Update | Supports online and local update |
| Structure&Environment | |
| Net Weight | 0.93kg (2.05 lb) 235.0 mm × 135.0 mm × 45.0 mm (9.25'' × 5.31'' × |
| Product Dimensions | 1.77'') (L × W × H) |
| Function Control | password. Control IPC to restore factory defaults |
| Analog Video Test | |
| Video Format | HDCVI; HDTVI; AHD; CVBS (NTSC, PAL) HDCVI: 720p@25/30/50/60 fps, 1080p@25/30 fps, 2560 ×1440@25/30 fps, 2880 × 1620@25/30 fps HDTVI: 720p@25/30/50/60 fps, 1080p@25/30fps, |
| Resolution | 2048×1536@18 fps, 2560 × 1440@25/30 fps AHD: 720p@25/30 fps, 1080p@25/30fps, 2048 × 1536@ 18/25/30 fps, 2560 × 1440@25/30 fps CVBS: 720 × 576@25 fps, 720 × 480@30 fps |
| Function Control | OSD menu; PTZ control |
| Image | Live view, snapshot and recording, zoom PAL; NTSC viedo test signal |
| Video Signal Generator | HDCVI; HDTVI; AHD viedo test signal (720p/1080p) |
| Utc | |
| UTC | Switches from one HD format (up to 1080p) to another HD format |
| Wi-Fi | |
| Standard | IEEE 802.11b/g/n/ac |
| Frequency Range | 5.18–5.24 GHz 5.745–5.825 GHz CE EIRP: ≤15.98 dBm@2400–2483.5 MHz ≤11.98 dBm@5.18 GHz–5.24 GHz ≤9.86 dBm@5.745 GHz–5.825 GHz |
| Power Transmission | FCC output power: ≤15.98 dBm@2400–2483.5 MHz ≤11.98 dBm@5.18 GHz–5.24 GHz ≤9.86 dBm@5.745 GHz–5.825 GHz |
| Dmm | |
| DC Voltage | Min. Resolution: 0.1 mV Accuracy: ±0.1%+8 Limit: 20/200/600 V Reading range: ±1999 |
| AC Voltage | Min. Resolution: 1 V Accuracy: ±1.2%+3 Limit: 20/200/2000 mA Reading range: ±19999 |
| DC Current | Min. Resolution: 1 uA Accuracy: ±0.1%+8* Limit: 20/200/2000 mA Reading range: ±1999 |
| AC Current | Min. Resolution: 1 uA Accuracy: ±1.2%+3 Limit: 2 kΩ/20 kΩ/200 kΩ/2 mΩ/20 mΩ Reading range: 0–19999 |
| Resistance Test | Min. Resolution: 0.1 Ω Accuracy: ±0.1%+8 Limit: 2 nF/20 nF/200 nF/2 uF/20 uF/200 uF/2 mF/20 mF |
| Capacitance Test | Reading range: 0–1999 Min. Resolution: 1 pF Accuracy: ±4%+5 Limit: 2 V Reading range: 0–19999 |
| Diode Voltage Drop | Min. Resolution: 0.1 mV Accuracy: ±0.1%+20 Limit: 2 kΩ Reading range: 0–19999 |
| Continuity Test | Min. Resolution: 0.1 Ω Accuracy: ±0.1%+20 |
| Others | |
| RS-485 Control | Yaan Baud Rate: 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600bps, 19200 bps |
| Wireless | Spectrum Test; Wi-Fi Test; Signal Monitoring Network Cable Test: Test network cable pair length, attenuation and delay deviation. |
| Cable Test | Test two or more network cables. The connection sequence and network cable number will be displayed on the screen. 1-ch HDMI video input (720p and 1080p); |
| HDMI Test | 1-ch HDMI video output (1920 ×1080p) |
| Audio Test | 1 × audio input, and 1 audio output |
| Power Supply for Camera | 12 VDC 2A |
| Network Test | Features IP address scanning and PING test. Built–in serial port tool, can receive and display |
| Protocol Code Acquisition | RS485 protocol code data sent by control device, and can also send hexadecimal codes. |
| Optical Power Meter | Measurement Accuracy: <±3% dB (–10 dBm, +22 °C/+71.6 °F); <±5% dB (FS, +22 °C/+71.6 °F) Resolution: Linear: 0.1%, logarithmic : 0.01 dBm Connector: FC/PC |
| Power | |
| Audio Port | 1 × audio input port, 1 × audio output port |
| USB | 1 × USB, 1 × Micro-USB |
| Network Port | 2 × RJ45 10M/100M/1G network port |
| SD Card | NA 1 × HDMI input port |
| HDMI | 1 × HDMI output port |
| RS-232 | NA |
| RS-485 | 1 |
| VLS | NA |
| OPM | 1 |
| Multimeter | 4 |
| Power Supply | |
| Power Supply | 12 VDC 1A/POE 48 V–0.5 A Two battery compartments. Each battery compartment can hold a dedicated |
| Battery | lithium battery pack with a capacity of 18.5Wh. The combined working time is about 10 hours. (can operate on a single battery). |
