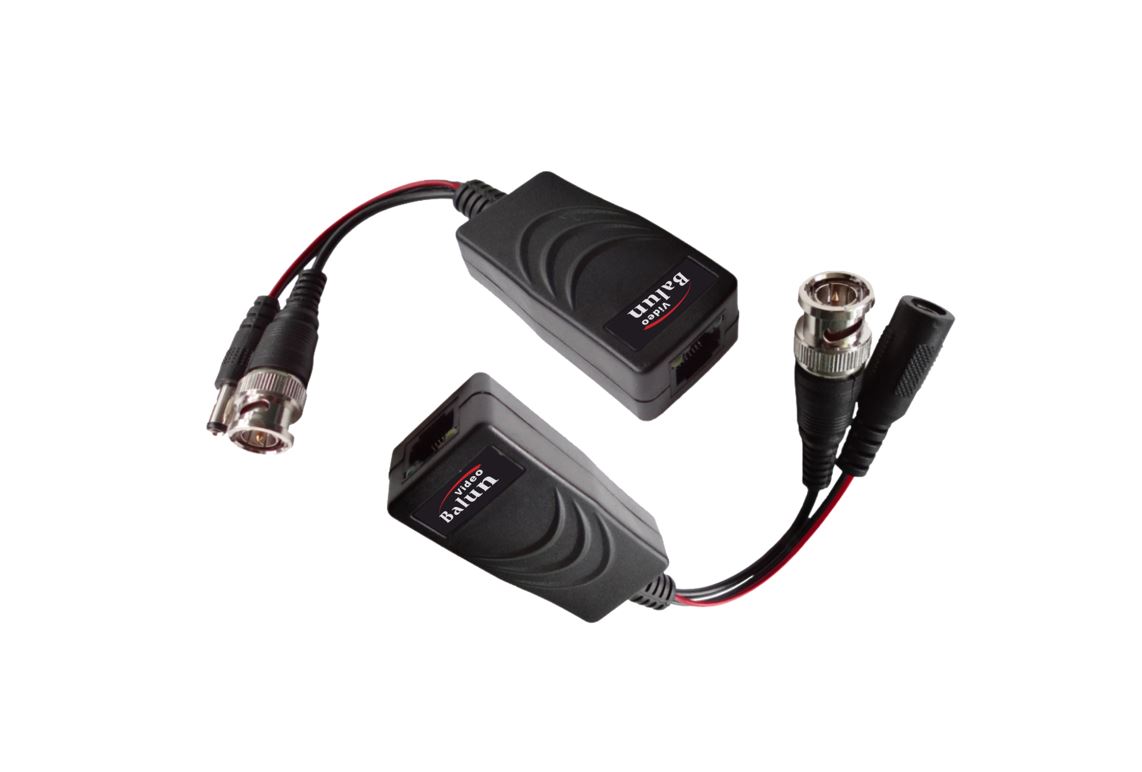

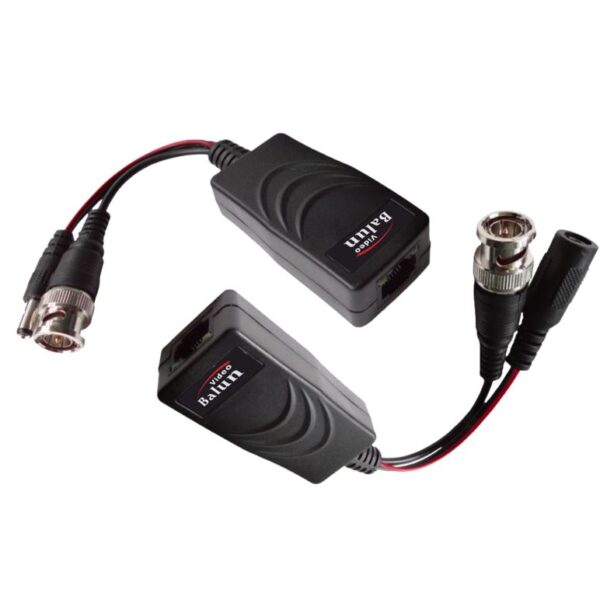

Coppia balun video passivi HDCVI su UTP fino a 4 MP con alimentazione 12~15 Vdc
| Function | |
| Transmission Channel | 1-ch HDCVI/TVI/AHD/CVBS HDCVI: 720p: max 400 m (1312.34 ft) 1080p: max 250 m (820.21 ft) 4 MP/4K: max 150 m (492.13 ft) TVI: |
| Transmission Distance | 720p/1080p: max 200 m (656.17 ft) 3 MP: max 150 m (492.13 ft) AHD: 720p: max 320 m (1049.87 ft) 1080p: max 250 m (820.21 ft) 4 MP/5 MP: max 150 m (492.13 ft) |
| Resolution | 720p/1080p/3 MP/4 MP/5 MP/4K |
| Video Format | HDCVI/TVI/AHD/CVBS |
| Anti-interference | > 60 dB |
| Transmission Signal | 1-ch analog HD video |
| Transmission Media | UTP CAT5E/6 Coaxial cable: 75 Ω |
| Impedance | Twisted pair: 100 Ω |
| Protection | |
| Electrostatic Discharge | 1b air discharge: Level 3 Applicable standard: IEC61000–4–2 |
| Structure | |
| Appearance Color | Black |
| Casing Material | ABS project material 190.1 mm × 33.5 mm × 20.5 mm (7.48" × 1.32" × 0.81") |
| Product Dimensions | (L × W × H) 211 mm × 211 mm × 150 mm (8.31" × 8.31" × 5.91") (L |
| Packaging Dimensions | × W × H) |
| Packaging Method | 10 pieces in 1 box, and 30 boxes in 1 outer carton |
| Net Weight | 95 g/pair (0.21 lb) |
| Gross Weight | 1.15 kg/box (2.54 lb) |
| Environment | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5–95% (RH), non–condensing |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 0–95% (RH), non–condensing |
| Ordering Information | |
| Type | Model Description Passive Video Balun with |
| Video Balun | PFM802 Power (10pcs/box) |
