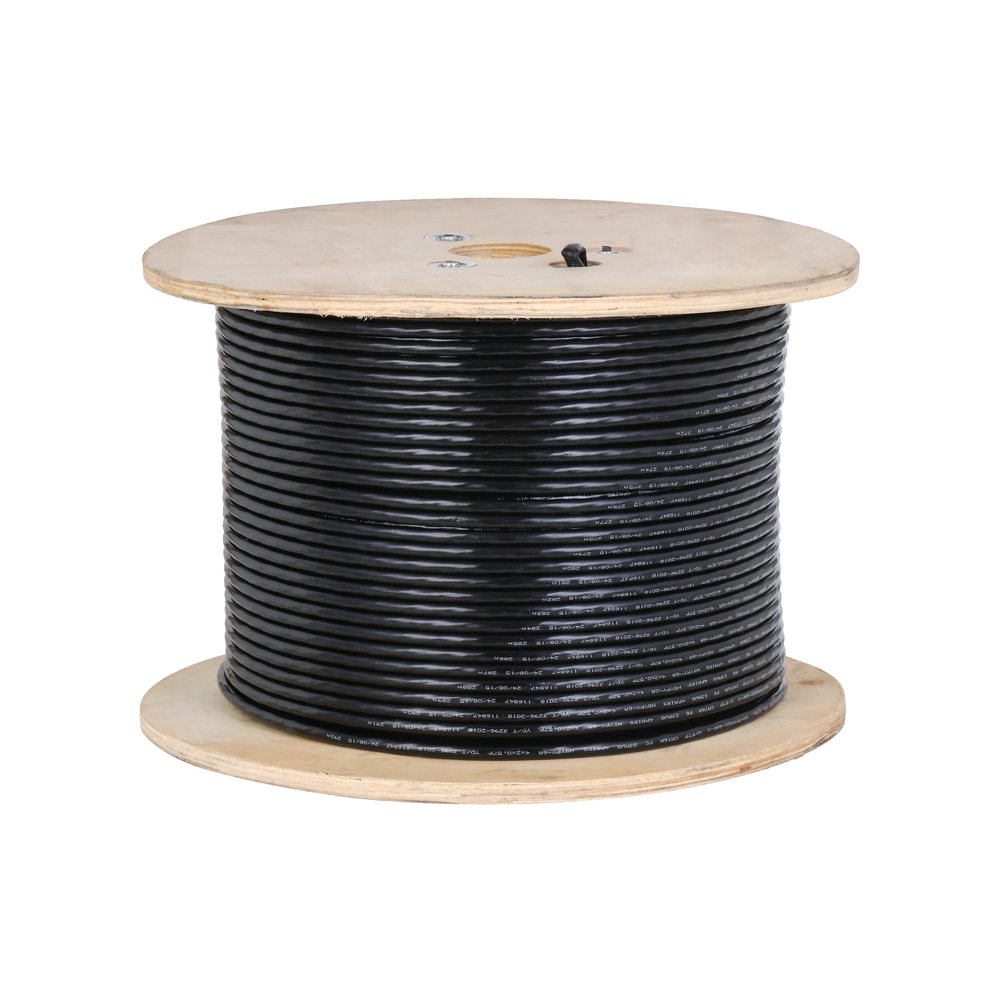

Cavo UTP CAT6A esterno 305 m MDPE rip cord nero
479,46 € IVA inclusa
Matassa cavo UTP CAT6A per utilizzo esterno, lunghezza 305 m, con rip cord, conduttori in OFC 99.97%/0.57 mm, guaina in MDPE (CPR F Class), colore nero
Datasheet
Documentazione
Disegni
Manuali
| Conductor | |
| Material | Oxygen free copper (99.97% purity) |
| Conductor Structure | 0.57 mm ± 0.01 mm (0.0224" ± 0.0004") |
| American Wire Gauge | 23AWG |
| Insulation | |
| Insulating Material | Foaming PE |
| Min. Average Thickness | 0.21 mm (0.0083") |
| Insulation Diameter | 1.1 mm ± 0.1 mm (0.0433" ± 0.004") 8 cores, Blue, white/blue; Orange, white/orange; Green, |
| Insulation Color | white/green; Brown, white/brown |
| Rip Cord | |
| Material | Polyester |
| Specification | 150D × 3 |
| Separator | |
| Material | PE |
| Specification | Translucent 4.5 mm × 0.4 mm (0.18" × 0.0157") |
| Wrapping Tape | |
| Material | Plastic-aluminum-plastic |
| Thickness | 0.07 mm × 24 mm (0.0028" × 0.9449") |
| Sheath Color | Black |
| Electrical | |
| Max. DC Resistance of a | 7.35 Ω/100 m |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥34.8 dB/100 m@500 MHz |
| Max. Attenuation | ≥45.3 dB/100 m@500 MHz |
| Return Loss | ≥17.3 dB/100 m@500 MHz |
| Mechanical | |
| Tensile Strength | Sheath≥12 MPa, insulation≥10 Mpa |
| Elongation at Break | Sheath≥350%, insulation≥200% |
| Installation Bending Radius | >15 times of outer cable diameter |
| Conductor Elongation at | ≥15% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥9.6 MPa, rate of change≤20% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Packaging | |
| Cable Length | 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) |
| Packaging Method | 305.0 m (1000.66 ft) a roll, plywood wooden shaft 300 mm × 300 mm × 320 mm (11.81" × 11.81" × 12.60") |
| Packaging Dimensions | (L × W × H) |
| Net Weight | 15 kg ± 0.60 kg (33.07 lb ± 1.32 lb) |
| Gross Weight | 16.50 kg ± 0.60 kg (36.38 lb ± 1.32 lb) |
| Compliance Standard | |
| Compliance Standard | YD/T 3296.2-2018 |
| Ordering Information | |
| Type | Model Description 305m Outdoor U/UTP CAT6A |
| Network Cable | DH-PFM920-6AU Network Cable (Black) |
| Dimensions (Mm[Inch]) | |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
