Cavo di rete U/UTP CAT5E con conduttori in CCA (alluminio ramato), guaina esterna in PVC con un certo grado di ritardo alla fiamma, prova di propagazione della fiamma IEC 60332-2-2, dati e alimentazione PoE su un unico cavo, resistenza a trazione guaina ≥13.5 MPa e isolante ≥16 MPa, raggio di curvatura >8 volte il diametro, temperatura di esercizio -20~+60 °C, temperatura di installazione 0~+50 °C, standard Q/DXJ 067-2024
| Mechanical | |
| Tensile Strength | Sheath ≥13.5 MPa, insulation ≥16 MPa |
| Elongation at Break | Sheath ≥150%, insulation ≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at | ≥8% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥12.5 MPa, ≥125% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Security | |
| Vertical Flame Test | IEC 60332-2-2 |
| Packaging | |
| Cable Length | 305 m ± 2 m (1,000.66 ft ± 6.56 ft) 305 m (1,000.66 ft) a carton, one carton with 2 inner |
| Packaging Method | cartons 364 mm × 216 mm × 364 mm (14.33" × 8.50" × 14.33") |
| Packaging Dimensions | (L × W × H) |
| Transport Package | 447 mm × 382 mm × 386 mm (17.60" × 15.04" × |
| Dimensions | 15.20") (L × W × H) |
| Net Weight | 6.5 kg ± 0.6 kg (14.33 lb ± 1.32 lb) |
| Gross Weight | 7.5 kg ± 0.6 kg (16.53 lb ± 1.32 lb) |
| Compliance Standard | |
| Compliance Standard | Q/DXJ 067-2024 |
| Ordering Information | |

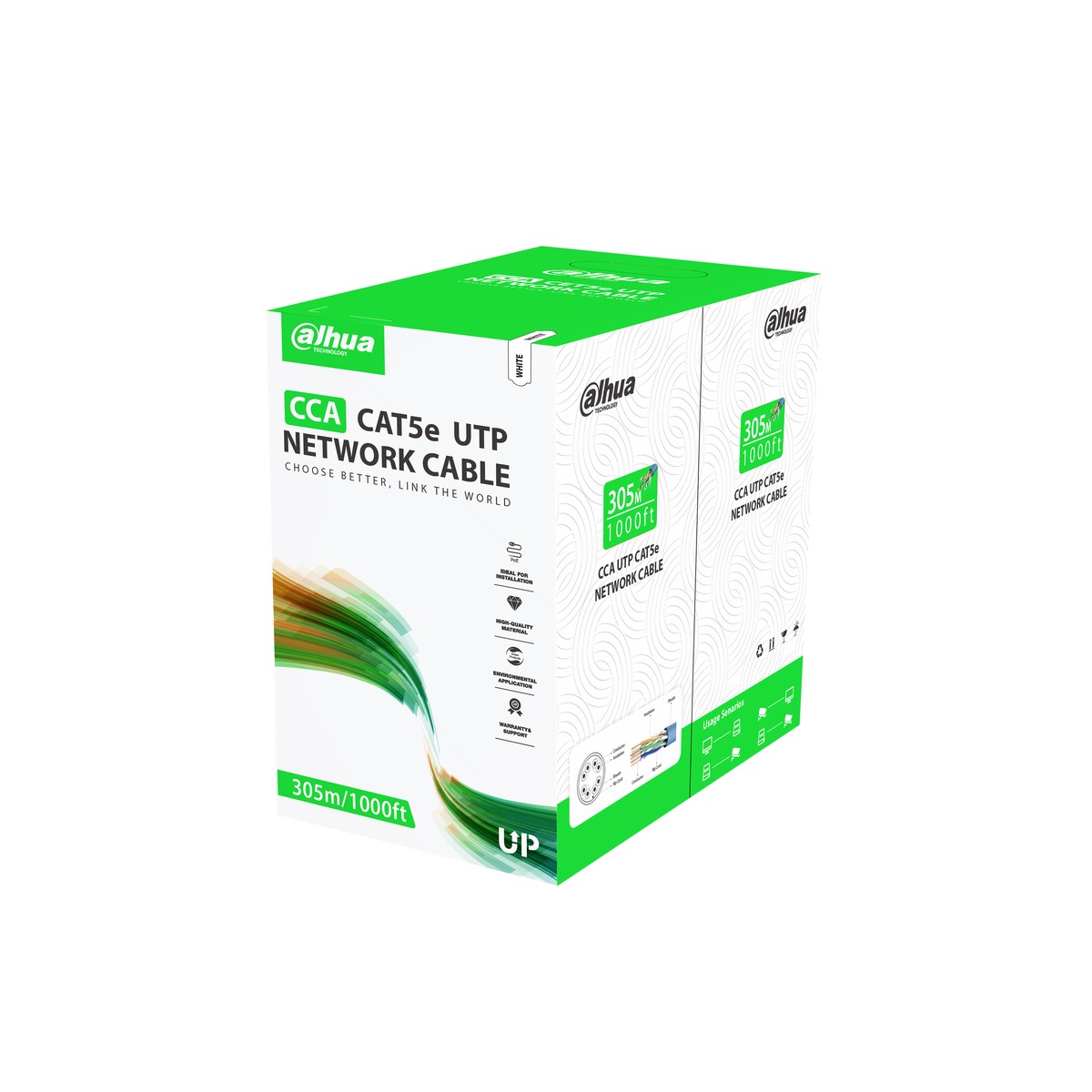

| Type | Model Description 305m U/UTP CAT5E |
| Network Cable | DH-PFM922I-5EUN-C Network Cable (White,CCA) |
