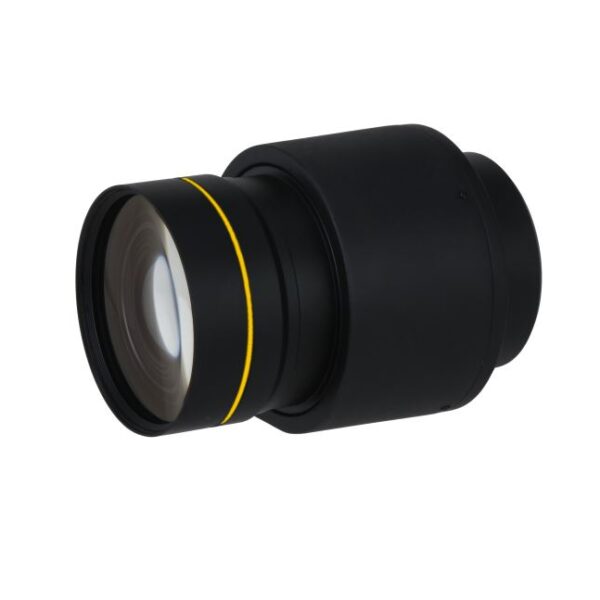

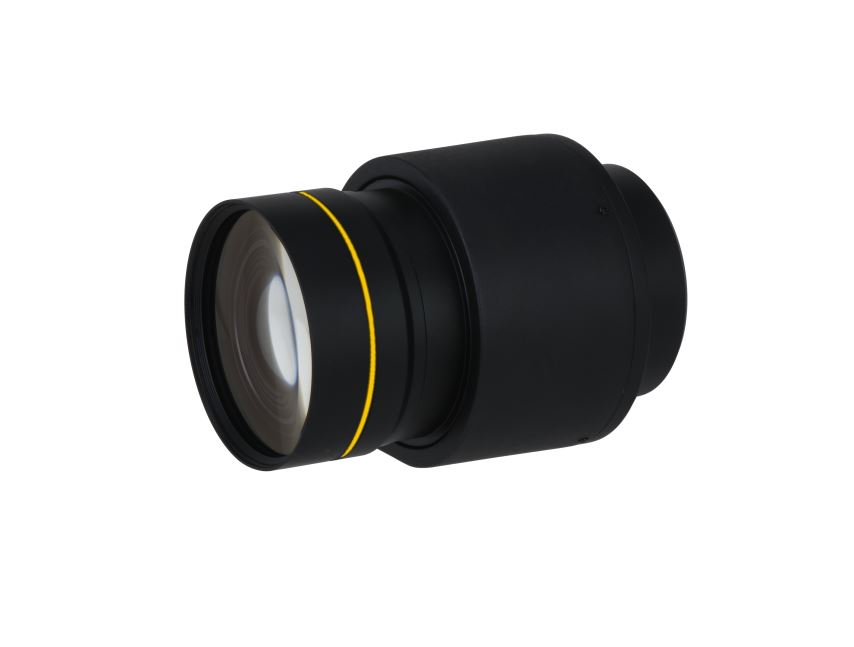

Ottica motorizzata 16~40 mm 12 MP
Ottica motorizzata 16~40 mm ƒ1.4 da 12 MP, sensore immagine 1.1”, C mount, Iris P, fuoco motorizzato, ideale per telecamere ITC
Datasheet
| General | |
| Image Sensor Size | 1.1" |
| Focal Length | 16 mm–40 mm |
| Pixel | 12MP |
| Max. Aperture | F1.4 |
| IR Correction | Yes |
| Chief Ray Angle (CRA) | <7.5° (W) & (T) |
| Total Optical Length | 130 mm |
| Flange Back Focal Length | 17.5 mm |
| Mechanical Back Focal | 11.61 mm |
| Net Weight | 0.709 ± 0.005 kg (1.56 ± 0.01 lb) |
| Gross Weight | 0.815 ± 0.005 kg (1.80 ± 0.01 lb) |
| Packaging Method | 20 pcs in each carton 615 mm × 345 mm × 250 mm (24.21" × 13.58" × 9.84") |
| Packaging Dimensions | (L × W × H) |
| Operating Temperature | –30°C to +70°C (–22°F to +158°F) |
| Operating Humidity | ≤95% (RH) |
| Storage Te mperature | –40°C to +70°C (–40°F to 158°F) |
| Storage Humidity | ≤95% (RH) |
| Ordering Information | |
| Type | Model Description DH-PFL1640 Dahua 12MP 1.1" F1.4 16-40 mm |
| HD Lens | -L12PE Motorized Lens (P-iris) General 12MP 1.1" F1.4 16-40 mm |
| HD Lens | PFL1640-L12PE Motorized Lens (P-iris) |
