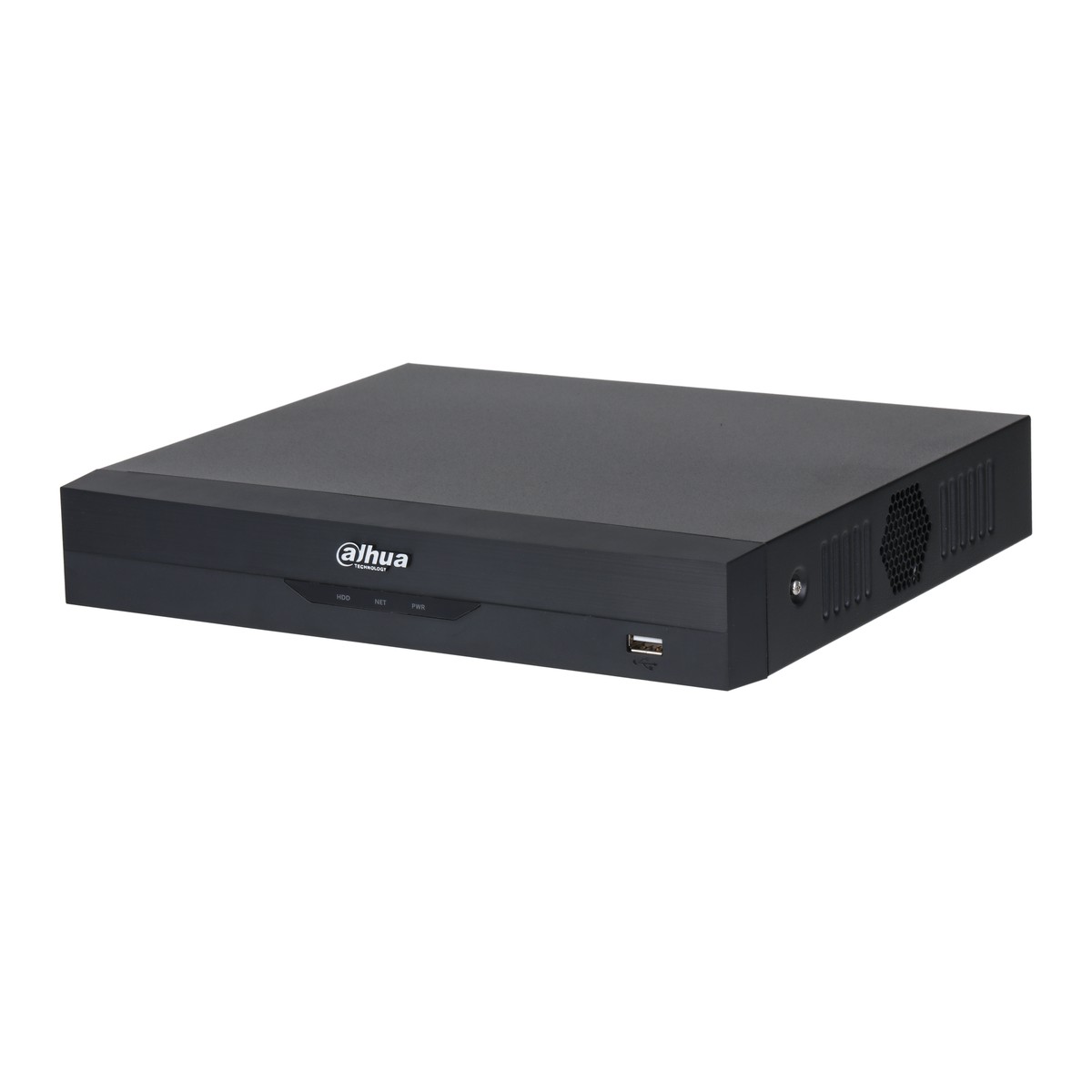

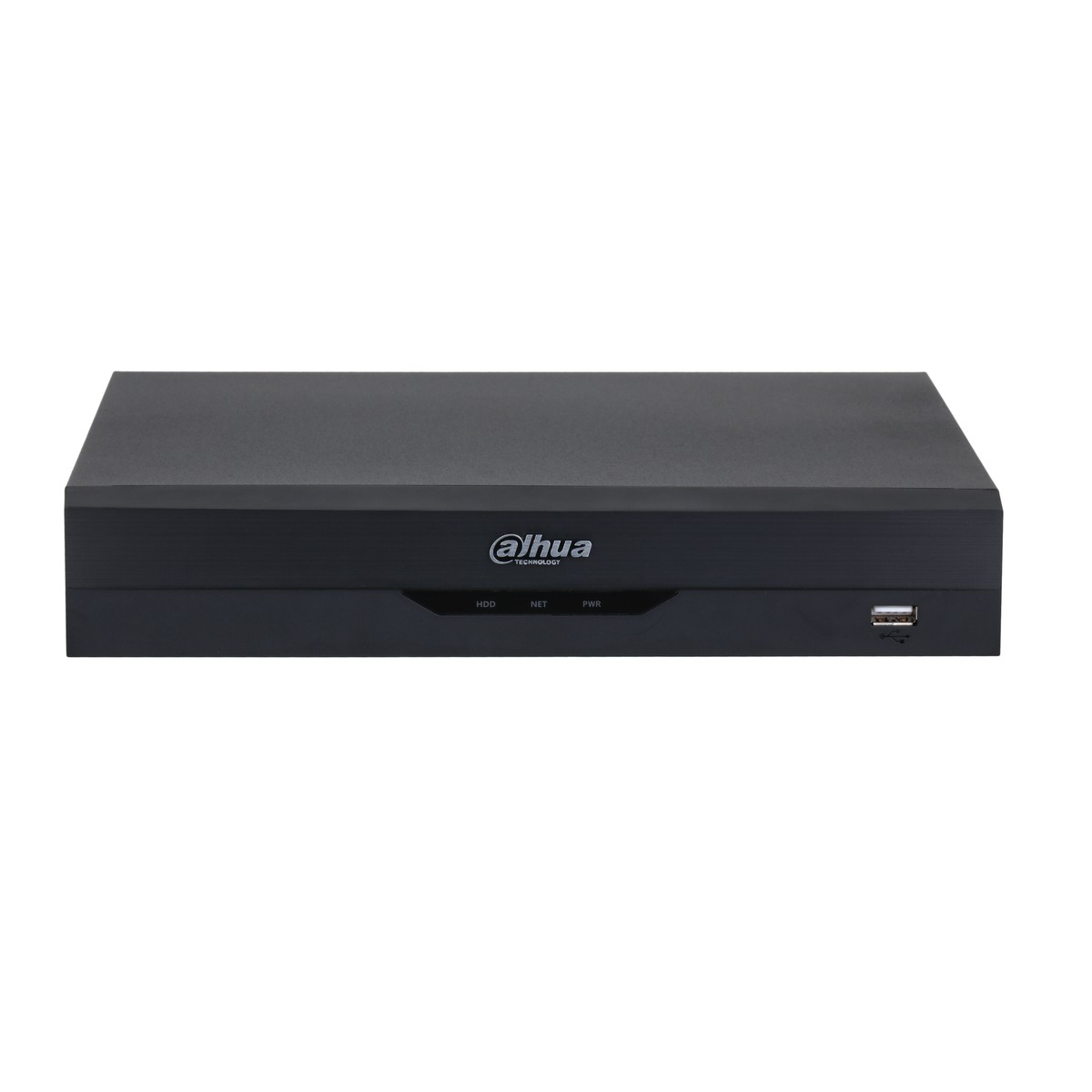

XVR Penta-brid AI WizSense 4 canali con SSD interno da 1 TB (circa 22 giorni di registrazione), ingressi HDCVI/AHD/TVI/CVBS con riconoscimento automatico e IP, fino a 6 canali IP fino a 6 MP (banda 32 Mbps), codifica 5 MP fino a 6 fps, 5M-N fino a 12 fps, 4M-N/1080p fino a 15 fps, 1080N/720p fino a 25/30 fps, AI Coding, Smart H.265+/H.264+, 4 canali SMD Plus, 4 canali protezione perimetrale, 1 canale face recognition (funzioni AI disattivate con estensione IP attiva), 2 uscite video (1 VGA + 1 HDMI), funzioni IoT e POS, Compact 1U
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux Web; Local GUI |
| Perimeter Protection | |
| Perimeter Performance AI | Advanced Model: 2 channels, 10 IVS rules for each channel General Model: 4 channels, 10 IVS rules for each |
| by Recorder (Number of | channel |
| Face Detection | |
| Performance of AI by | 1 channel (up to 8 face images/s each channel) |
| Face Recognition | |
| Performance of AI by | 1 channel |
| Smd Plus | |
| SMD Plus by Recorder | lighting condition change |
| Audio And Video | |
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, |
| Camera Input | 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording |
| IP Camera Input | bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP extension is enabled, the AI Function (IVS, SMD, FACE) will be disabled. Main stream: 5MP Mode: All channel 5MP@(1-6fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M- |
| Encoding Capacity | N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@ (1–25/30fps) Sub stream: D1, CIF@(1–15fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps 1 HDMI, 1 VGA |
| Video Output | HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode enabled: 1/4/6 |
| Third-party Camera | ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | IOS; Android |
| Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; Firefox; IE |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Recording Playback | 1/4 |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback (face and motion detection) |
| Alarm | |
| General Alarm | network alarm; PIR alarm Error (no disk, disk error, low space, low quota space; |
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict) ;video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection Record; snapshot (panoramic); IPC external alarm output; |
| Alarm Linkage | audio; buzzer; log, preset; email |

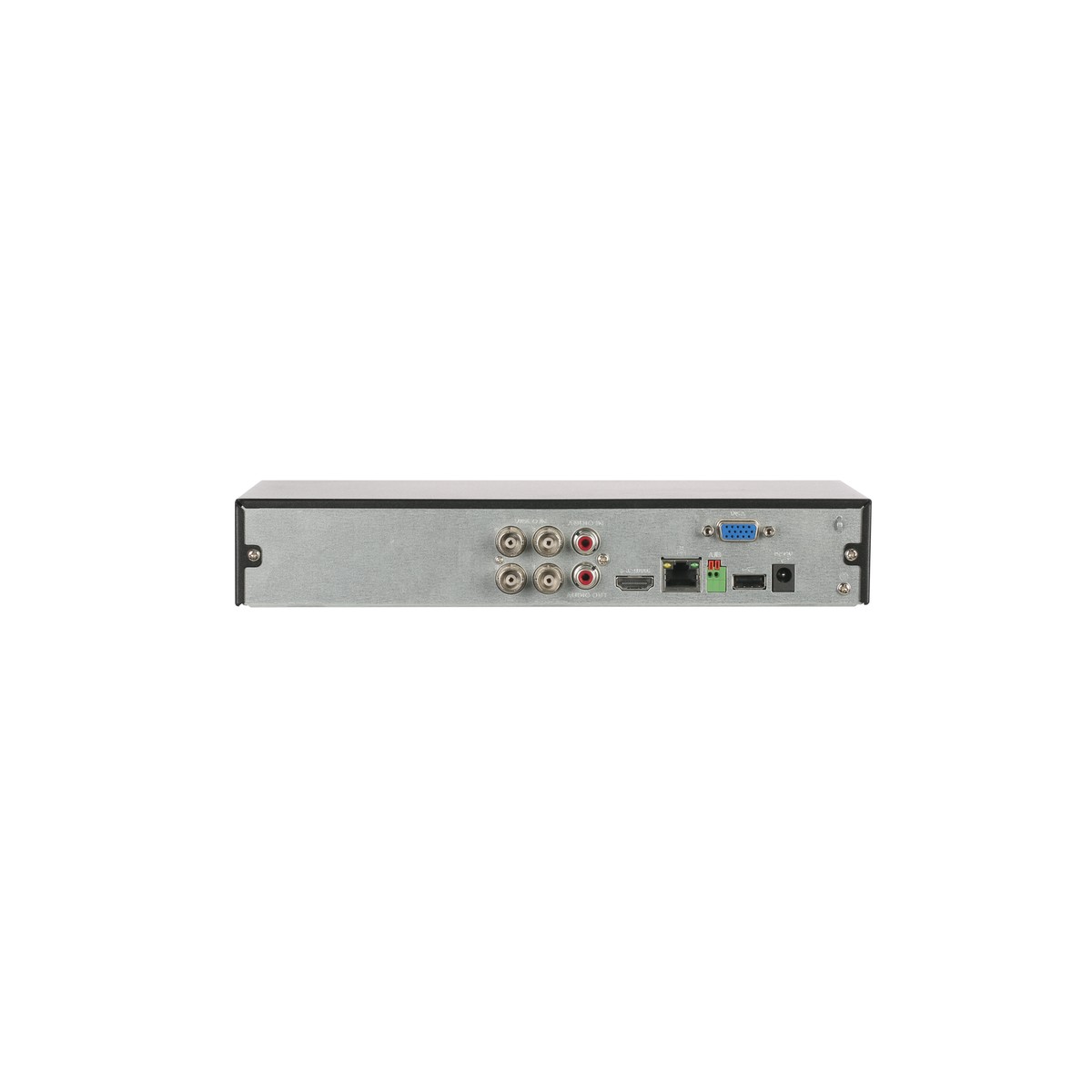

| Ports | |
| Audio Input | 4-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) 1 SSD:1TB(replaceable with 256 GB or 512 GB) |
| HDD Interface | Stores for 22 days under default settings |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 1.5A |
| Power Consumption | <5 W (with SSD) |
| Net Weight | 0.84 kg (1.85 lb) |
| Gross Weight | 1.37 kg (3.02 lb) 260.0 mm × 237.8 mm × 47.6 mm (10.24'' × 9.36'' × |
| Product Dimensions | 1.87'') (W × D × H) 333.0 mm × 89.0 mm × 315.0 mm (13.11'' × 3.50'' × |
| Packaging Dimensions | 12.40'') (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | ≤93% (RH), non-condensing |
| Installation | Rack or desktop CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000- 3-2:2019, EN 61000-3-3:2013+A1:2019, EN |
| Ordering Information | |
| Type | Model Description 4CH Penta-brid 5MP Value/1080P |
| DIGITAL VIDEO | DH-XVR5104HS- Compact 1U 1SSD 1TB WizSense Digital I3(1TB) |
| RECORDER | Video Recorder |
