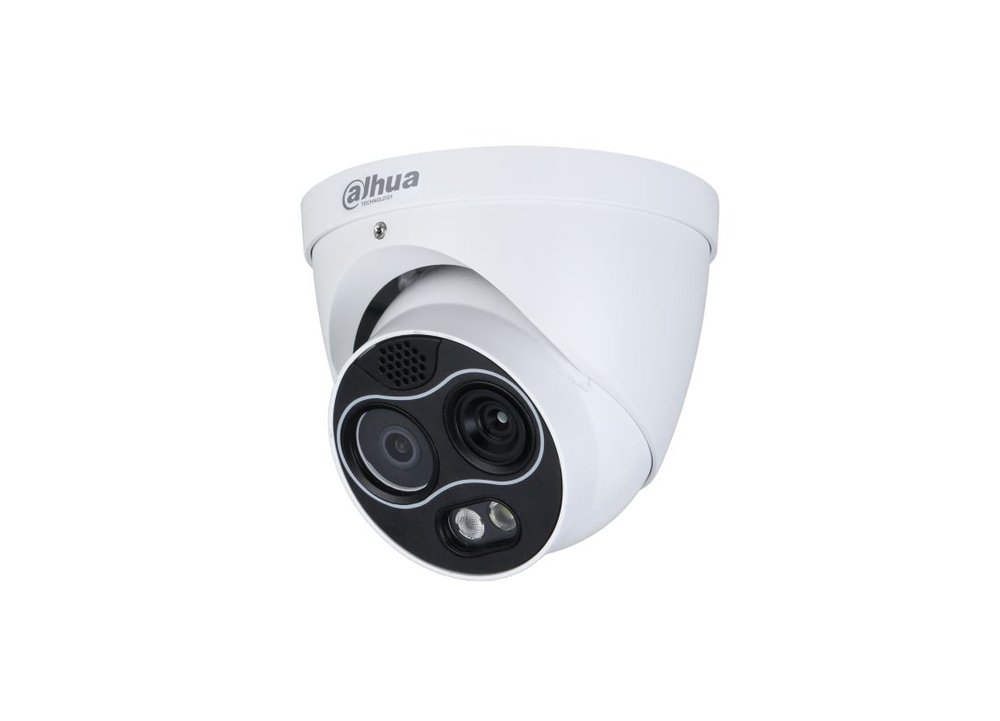

Eyeball termica ibrida IP AI 256x192/4 MP 7/8 mm - immagine 1

Eyeball termica ibrida IP AI 256×192/4 MP 7/8 mm

Name: Eyeball termica ibrida IP AI 256x192/4 MP 7/8 mm
Brand: Dahua
SKU: TPC-DF1241-B7F8-DW-S8
Price: 761.28 EUR
Availability: BackOrder

Dahua

COD: TPC-DF1241-B7F8-DW-S8 Categorie: Telecamere termiche, Videosorveglianza Tag: Termica

761,28 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.522,56 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

TPC-DF1241-B7F8-DW-S8 – Telecamera termica da esterno dome Serie EUREKA, Dual-Lens , ottica term ica da 7mm + ottica visibile da 8mm , sensore 1/2.7″ CMOS da 4MP, Illuminatore IR 30mt, 1x ingresso + 1x uscita Audio , 2x

Telecamera Speed Dome Motorizzata Termica Ibrida – Dahua

Tecnologia Dual-Lens, doppia ottica: termica 7mm / visibile 8mm

Sensore CMOS da 4MP

Risoluzione 256 x 192 (ottica termica) / 2336 × 1752 ( ottica visibile )

Spettro visivo da 8 μm–14 μm

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Max. Resolution	256 (H) × 192 (V)
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Thermal Sensitivity	< 40 mK (@f/1.0, 25 Hz, 300 K)
(NETD)	2 mm: H: 87.8°; V: 63.8°
Field of View	3.5 mm: H: 50.6°; V: 37.8° 7 mm: H: 24°; V: 18° 2mm 0.3 m (0.98 ft) :
Close Focus Distance	3.5 mm: 0.5 m (1.64 ft) 7 mm: 1 m (3.28 ft) 2 mm: Vehicle: 256 m (839.90 ft); Human: 83 m (272.31 ft) 3.5 mm: Vehicle: 449 m (1,473.10 ft);
Detection Distance	① Human: 146 m (479.00 ft) 7 mm: Vehicle: 897 m (2,942.91 ft); Human: 292 m (958.01 ft) 2 mm: Vehicle: 63 m (206.69 ft); Human: 21 m (68.90 ft) 3.5 mm: Vehicle: 110 m (360.89 ft);
Recognition Distance	② Human: 38 m (124.67 ft) 7 mm: Vehicle: 220 m (721.78 ft); Human: 75 m (246.06 ft)
Identification Distance	③ Human: 19 m (62.34 ft) 7 mm: Vehicle: 111 m (364.17 ft); Human: 38 m (124.67 ft)
Aperture	F1.0
Digital Detail	Yes
Digital Zoom	16 levels
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
Image Flip	180° 18 (white hot/black hot/fusion/rainbow/golden autumn/
Color Palettes	midday/iron red/amber/jade/sunset/icefire/painting/ pomegranate/emerald /spring/summer/autumn/winter)
Fusion Mode	3 (Warm color; Cool color; Ironred)
Visible
Image Sensor	1/2.7'' CMOS
Max. Resolution	2336 (H) × 1752 (V)
Pixel	4 MP
Electronic Shutter Speed	1/30,000 s–1 s Color: 0.05 lux
Min. Illumination	Black & white: 0.005 lux 0 lux (IR on)
IR Illumination Distance	30 m (98.43 ft)
IR Illuminator On/Off	Auto; Manual
Control	2 mm: F2.2
Aperture	4 mm: F1.6 8 mm: F2.0 2 mm: H: 94°; V: 72°
Field of View	4 mm: H: 71.2°; V: 52° 8 mm: H: 33.4°; V: 25°
Focus Control	Fixed 2 mm: 0.3 m (0.98 ft)
Close Focus Distance	4 mm: 1 m (3.28 ft) 8 mm: 2.5 m (8.2 ft)
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	DWDR
HLC	Yes Auto; Manual; Indoor; Outdoor; Tracking; Street lamp;
White Balance	Natural
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
S/N Ratio	≥55 dB
Region of Interest (RoI)	Yes
Image Flip	180°
Exposure Compensation	Yes
Intelligence
General Intelligence	Tripwire; Intrusion Heat Detection & Alarm Cold & Hot Spot Trace
Advanced Intelligence	Human & Vehicle Classification Smoking Detection Call Detection
Video And Audio
Video Compression	H.265; H.264; H.264H; MJPEG Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default)
Resolution	Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default)
Thermal
Frame Rate	Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM
Protocol
Edge Storage	Micro SD card (256 G)
Interoperability	ONVIF; CGI; DaHua SDK IE: IE 8 and later
Browser	Google: 42 and earlier Firefox: 42 and earlier
User/Host	10 Authorized username and password; attached MAC
Security	address; encrypted HTTPS; IEEE 802.1x; controlled network access
Network
Audio Input	1
Audio Output	1
Alarm Input	2
Alarm Output	2
RS-485	1 pair
Power
Power Supply	12 VDC 1.2 A ± 20%; PoE , Basic: <3 W (12 VDC, LED off); 3.5 W (PoE)
Power Consumption	Max: <7W (12 VDC, LED on, heater on); 9 W (PoE)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Storage Temperature	–30 °C to +70 °C (–22 °F to ﹢158 °F)
Operating Humidity	≤95%
Protection	IP67
Structure
Product Dimensions	(L × W × H) 155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")
Packaging Dimensions	(L × W × H)
Net Weight	≤0.85 kg (1.87 lb)
Gross Weight	≤1 kg (2.20 lb)
Heat Detection Distance
Focal Length	Max. Distance
2 mm	25 m (82.02 ft)
3.5 mm	45 m (147.64 ft)
7 mm	86 m (282.15 ft)
Perimeter Protection Distance
Focal Length	Distance (Human) Distance (Vehicle)
2 mm	14 m (45.93 ft) 42 m (137.80 ft)
3.5 mm	24.5 m (80.38ft) 72.5 m (237.86 ft)
7 mm	49 m (160.76 ft) 146.5 m (480.64 ft)
Ordering Information
Type	Model Description Thermal: 256 × 192 2 mm lens DHI-TPC-DF1241-B2F2-DW-S8 Visible: 4 MP 2 mm lens
Accessories
(Optional)	PFA130-E Junction Box PFM320D Power Adapter The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Optional:
PFB203W	PFA106 PFB220C
Wall-mount bracket	Ceiling-mount Ceiling-mount adapter plate bracket
PFA130-E	PFM320D
Junction box	Power adapter Junction Mount
Wall Mount	Ceiling Mount
