Bullet termica IP AI 640x512 7.5 mm temp. - immagine 1

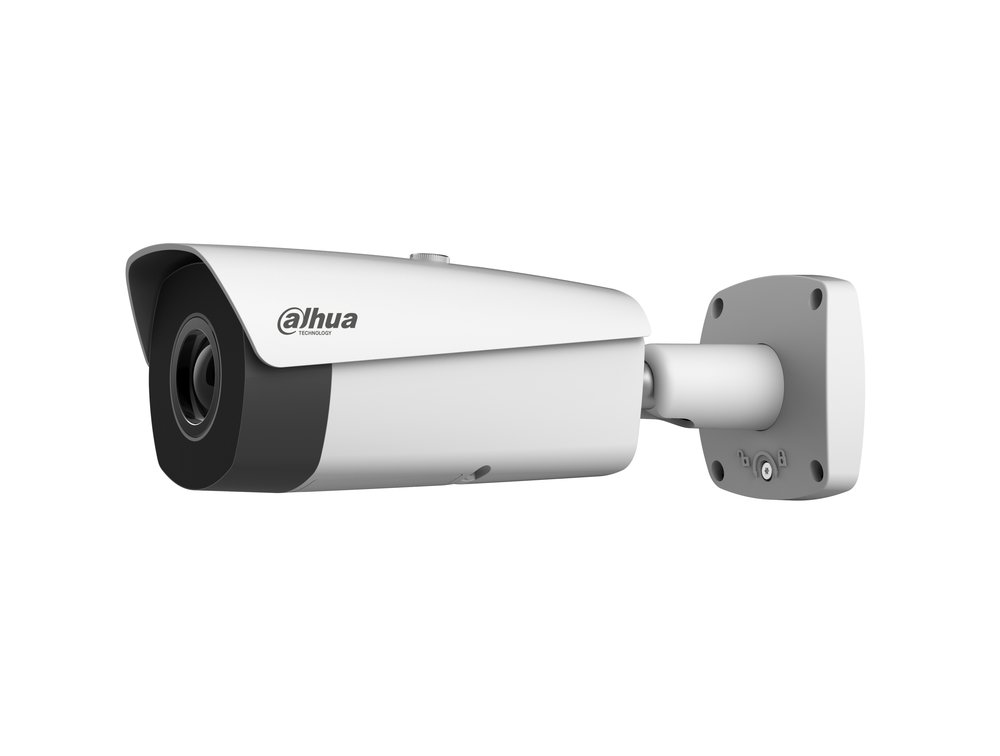

Bullet termica IP AI 640×512 7.5 mm temp.

Name: Bullet termica IP AI 640x512 7.5 mm temp.
Brand: Dahua
SKU: TPC-BF5601-TB7-S2
Price: 9690.46 EUR
Availability: BackOrder

Dahua

COD: TPC-BF5601-TB7-S2 Categorie: Telecamere termiche, Videosorveglianza Tag: Termica

9.690,46 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 19.380,92 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet termica IP AI da interno/esterno IP67, risoluzione termica 640×512 a 25fps, sensibilità 35 mK, ottica termica 7.5 mm, spettro visivo 8~14 µm, 1 porta LAN 10/100 Mbps, 1 porta CVBS/BNC, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 RS485, IVS (protezione perimetrale), rilevamento calore e temperature (12 regole punto/linea/area, range -20°~+150°/0~550°), traccia punti caldi/freddi, classificazione persone/veicoli, micro SD card (512 GB), alimentazione 12 Vdc/ePoE <14 W

·
Series	40mK Fire Detect Fire Detection
Thermal Camera
Image Sensor	Uncooled VOx Microbolometer
Effective Pixels	640(H)x512(V)
Pixel Size	17um
Thermal Sensitivity(NETD)	40mK
Spectral Range	8~14um
Image Setting	Brightness/Sharpness/ROI/AGC/FFC/3D DNR 18(Whitehot/Blackhot/Ironrow/Icefire/
Color Palettes	Fusion/Rainbow/Globow/Iconbow1/ Iconbow2 .etc)
Thermal Lens
Lens Type	Fixed/F1.0
Focus Control	Athermalized, Focus-free
Focal Length	7.5mm 13mm 25mm 35mm H: 91.2° H: 48.9° H: 24.6° H: 17.6°
Angle of View	V: 70.3° V: 38.8° V: 19.8° V: 14.1° D②: 221m D: 382m D: 735m D: 1030m
Effective Distance①	R③: 57m R: 98m R: 189m R: 265m
Man(1.8m*0.5m)	I ④: 28m I: 49m I: 95m I: 132m D: 490m D: 850m D: 1634m D: 2288m
Effective Distance	R: 126m R: 219m R: 420m R: 588m
Vehicle(4m*1.4m)	I:63m I: 109m I: 210m I: 294m
Video
Compression	H.265 / H.264 / MJPEG Main Stream: Thermal: 1280×1024 / 720P / 640×512 @25/30fps
Frame Rate	Sub Stream: Thermal: 640×512 / 320×256 @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 640 ~ 8192Kbps
Motion Detection	Off/On (4 zone, Rectangle)
Region of Interest	Off/On (4 zone)
Electronic Image Stabilization	NA
Digital Zoom	4x(24 levels)
Flip	180°
Mirror	Off/On
Privacy Masking	Off/On (4 area, Rectangle)
Audio
Compression	G.711A / G.711Mu / AAC / PCM
Intelligence
IVS	Tripwire, Intrusion Fire detection & alarm, Cold/Hot spot trace,
Advanced Intelligent Functions	Human/Vehicle classification
Network
Ethernet	RJ-45 IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
Protocol
Interoperability	ONVIF Profile S & G, API
Streaming Method	Unicast/Multicast
Max. User Access	10 Users/20 Users Micro SD (256GB) Memory status display (Normal / Error / Active /
Edge Storage	Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording
Web Viewer	IE8, <Chrome42, <Firefox42 >
Management Software	SmartPSS, DSS
Smart Phone	Android, iOS
Certifications
Certification	CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB )
Interface
Video Interface	1 Port (CVBS/BNC)
Audio Interface	1/1 In/Out
RS485	Support
Electrical
Power Supply	DC 12V/PoE ePoE /
Power Consumption	Max. 13W
Environmental
Operating Condition	* Start up should be done at above -40°C (-40°F)
Storage Conditions	-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH IP67
Construction
Casing	Metal
Dimensions	291mm× 103mm× 97mm (11.46" x 4.06" x 3.82")
Net Weight	1.5Kg (3.31 lb)
Gross Weight	1.9Kg (4.19 lb)
Ordering Information
Type	Part Number Description DHI-TPC-BF5601-B7 Thermal:640×512 7.5mm lens DHI-TPC-BF5601-B13 Thermal:640×512 13mm lens
BF5601	DHI-TPC-BF5601-B25 Thermal:640×512 25mm lens DHI-TPC-BF5601-B35 Thermal:640×512 35mm lens
Accessories
：	PFA121 PFA152-E
Junction box	Pole Mount
Pfa121+Pfa152-E
PFA121	PFA121 + PFA152
Dimensions(Mm)
291.0[11.46"]	103.8[4.09"]
192.5[7.58"]	97.2[3.83"]
