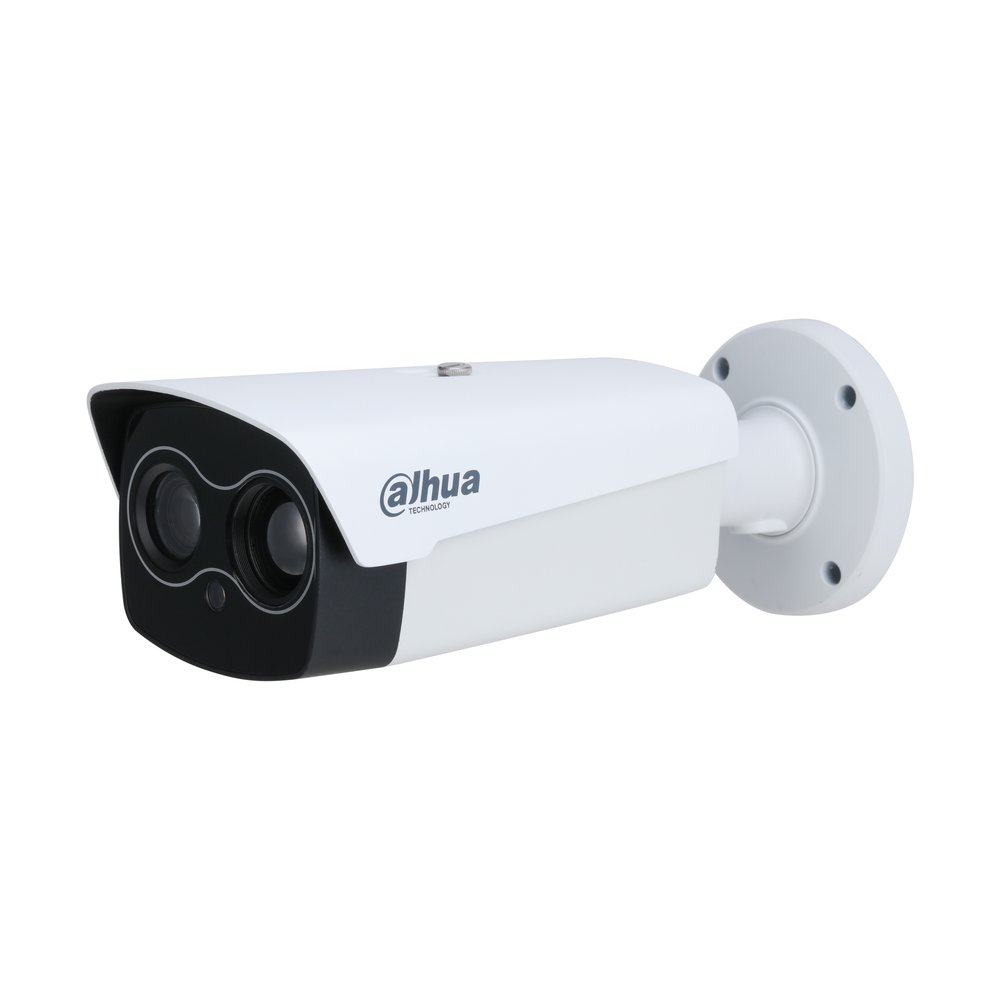

Bullet termica ibrida IP AI 640x512/4 MP 5/4 mm - immagine 1

Bullet termica ibrida IP AI 640×512/4 MP 5/4 mm

Name: Bullet termica ibrida IP AI 640x512/4 MP 5/4 mm
Brand: Dahua
SKU: TPC-BF5641-B5F4-J-S2
Price: 8177.05 EUR
Availability: BackOrder

Dahua

COD: TPC-BF5641-B5F4-J-S2 Categorie: Telecamere termiche, Videosorveglianza Tag: Termica

8.177,05 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 16.354,10 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera IP Bullet ibrida termica

> Rivelatore a piano focale non raffreddato in ossido di vanadio.

> CMOS 1/1.8″ 4 Megapixel a scansione progressiva.

> Rilevamento e allarme calore, tripwire, intrusione e filtraggio target.

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Effective Pixels	640 (H) × 512 (V)
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Sensitivity (NETD)	≤35 mK (@f/1.0) 5 mm H: 90.0°; V: 70.7° : 9 mm H: 48.6; V: 38.6° : 13 mm H: 32.0°; V: 25.7° :
Field of View	19 mm H: 22.8°; V: 18.4° : 25 mm H: 17.6°; V: 14.1° : 35 mm H: 12.5°; V: 10° :
Thermal Focus Control	Fixed-focal 5 mm 0.8 m (6.56 ft) : 9 mm 2.2 m (13.120ft) : 13 mm 2.9 m (9.51 ft) :
Close Focus Distance	19 mm 5.5 m (18.04 ft) : 25 mm 9 m (29.53 ft) : 35 mm 13 m (42.65 ft) : 5 mm: Vehicle: 641 m (2,103.10 ft); Human: 208 m (682.24 ft) 9 mm: Vehicle: 1,154 m (3,785.58 ft); Human: 375 m (1,230.00 ft) 13 mm: Vehicle: 1,667 m (5,468.07 ft); Human: 542 m (1,777.12 ft)
Detection Distance	① 19 mm: Vehicle: 2,436 m (7,991.79 ft); Human: 792 m (2,597.33 ft) 25 mm: Vehicle: 3,205 m (10,515.51 ft); Human: 1,042 m (3,417.54 ft) 35 mm: Vehicle: 4,487 m (14,721.72 ft); Human: 1,458 m (4,784.56 ft)
Recognition Distance	② 19 mm: Vehicle: 597 m (1,960.25 ft); Human: 204 m (667.89 ft) 25 mm: Vehicle: 786 m (2,579.28 ft); Human: 268 m (878.8 ft) 35 mm: Vehicle: 1,101 m (3,610.99 ft); Human: 375 m (1,230.31 ft) 5 mm: Vehicle: 79 m (260.38 ft); Human: 27 m (87.88 ft) 9 mm: Vehicle: 143 m (468.69 ft); Human: 48 m (157.44 ft) 13 mm: Vehicle: 206 m (677.00 ft); Human: 70 m (228.49 ft)
Identification Distance	③ 19 mm: Vehicle: 302 m (989.46 ft); Human: 102 m (333.94 ft) 25 mm: Vehicle: 397 m (1,301.92 ft); Human: 134 m (439.40 ft) 35 mm: Vehicle: 556 m (1,822.69 ft); Human: 188 m (615.16 ft)
Digital Detail Enhancement	Yes
Digital Zoom	24 levels
Thermal AGC	Auto/Manual
Thermal Noise Reduction	2D NR/3D NR
Image Flip	180°; Mirror 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/
Color Palettes	painting/pomegranate/emerald /spring/summer/ autumn/winter)
Visible
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Pixel	4 MP
Horizontal Definition	≥1100 TVL Color: 0.01 lux
Min. Illumination	Black & white: 0.001 lux 0 lux (white light on)
Visible AGC	Auto/Manual
Visible Noise Reduction	2D NR/3D NR
S/N Ratio	>55 dB Auto; manual; indoor; outdoor; tracking; sodium lamp;
White Balance	street lamp; natural
Defog
Electronic Shutter Speed	1 s–1/30,000 s (auto/manual)
BLC	Yes
WDR	Yes
HLC	Yes
Day/Night	Auto (ICR); Color; B/W
Iris Control	Fixed
Image Flip	180°; Mirror
Exposure Compensation	Yes
Visible Focus Control	Fixed-focal 4 mm: H: 87.0°; V: 47.3° 6 mm: H: 55.3°; V: 30.0°
Field of View	12 mm: H:37.3°; V: 21.4° 10–30 mm: H: 42°–15°;V: 23°–8.4° 4 mm: 1.2 m (3.93 ft) 6 mm: 2.5 m (8.20 ft)
Close Focus Distance	12 mm: 7.4 m (24.27 ft) 10–30 mm: 9 m (29.53 ft) 4 mm: F1.6 6 mm: F1.6
Aperture	12 mm: F1.7 10–30 mm: F1.7
Illuminator On/Off Control	Auto; manual
Illumination Distance	80 m (262.47 ft)
Audio And Video
Video Compression	H.265; H.264M; H.264H; H.264B Thermal: Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default) Sub stream: 640 × 512; 320 × 256; 640 × 512 (default)
Resolution	Visible: Main stream: 2688 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 720; 704 × 576; 2560 × 1440 (default) Sub stream: 704 × 576; 352 × 288; 704 × 576 (default)
Video Frame Rate	Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression	G.711a; G.711 mu
Image Encoding Format	JPEG
Function
Two-way Audio	Yes
Sound and Light Alarm	Local audio and white light alarm prompts IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP;
Network Protocol	SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
Region of Interest (RoI)	Yes (customizable)
Storage
Interoperability	ONVIF; CGI; DaHua SDK
Browser	IE; Firefox; Chrome; Safari
User/Host	Up to 20 (total bandwidth: 64 MB) Authorized username and password; attached MAC
Security	address; encrypted HTTPS; IEEE 802.1x; controlled network access Up to 20 users; supports multi-level user permissions (2
User Management	levels): management group and user group Network disconnection detection; IP conflict detection;
Malfunction Detection	memory card state detection; memory space detection
Fusion Mode	Yes. Off by default
PIP	Yes
Intelligence
Heat Detection	Yes
Cold/Hot Spot Trace	Yes
Perimeter Protection	Yes. Supports tripwire and intrusion.
Target Distinction	Human/Vehicle Classification
Smoke Detection	Yes
Port
Analog Output	device with a junction box)
Network Port	1 × RJ-45 (10/100 Base-T)
Alarm Input	2
Alarm Output	2
Audio Input	1
Audio Output	1
RS-485	1
Power
Power Supply	12 VDC ± 20%, PoE (802.3af), ePoE Basic: 5 W (12 VDC); 8.9 W (PoE)
Power Consumption	Max: 15 W (12 VDC); 18 W (PoE)
ePoE	Yes
Environment
Operating Temperature	–30 °C to +70 °C (–22 °F to +158 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection	IP67 Surge protection: 6 kV
Reliability	Air discharge: 15 kV Contact discharge: 8 kV
Structure
Product Dimensions	7.16") (L × W × H) 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01")
Packaging Dimensions	(L × W × H)
Net Weight	≤2.35 kg (5.18 lb)
Gross Weight	≤2.7 kg (5.95 lb)
Heat Detection Distance
Focal Length	Max. Distance
5 mm	60 m (196.85 ft)
9 mm	108 m (354.33 ft)
13 mm	156 m (511.80 ft)
19 mm	230 m (754.58 ft)
25 mm	300 m (984.24 ft)
35 mm	420 m (1377.94 ft)
Perimeter Protection Distance
Focal Length	Distance (Human) Distance (Vehicle)
5 mm	40 m (131.23 ft) 120 m (393.70 ft)
9 mm	72 m (236.22 ft) 216 m (708.66 ft)
13 mm	104 m (341.21 ft) 312 m (1023.62 ft)
19 mm	152 m (498.69 ft) 456 m (1496.06 ft)
25 mm	200 m (656.17 ft) 600 m (1968.50 ft)
35 mm	280 m (918.64 ft) 840 m (2755.91 ft)
Ordering Information
Type	Model Description DHI-TPC-BF5641-B5F4 Thermal: 5 mm; DHI-TPC-BF5641-B5F4-J Visible: 4 mm DHI-TPC-BF5641-B9F4 Thermal: 9 mm; DHI-TPC-BF5641-B9F4-J Visible: 4 mm DHI-TPC-BF5641-B13F6 Thermal: 13 mm; DHI-TPC-BF5641-B13F6-J Visible: 6 mm
Security	DHI-TPC-BF5641-B19F12 Thermal: 19 mm; DHI-TPC-BF5641-B19F12-J Visible: 12 mm DHI-TPC-BF5641-B25F12 Thermal: 25 mm; DHI-TPC-BF5641-B25F12-J Visible: 12 mm Thermal: 35 mm; DHI-TPC-BF5641-B35Z3 DHI-TPC-BF5641-B35Z3-J Visible: 10mm-30 mm PFA151 + PFA121 Corner Mount Bracket
Accessories
(Optional)	PFA150+PFA121 Vertical Pole Mount Bracket
Accessories
-J model)	PFA154 Vertical Pole Mount Bracket
Optional:
PFA151 + PFA121	PFA150 + PFA121 Junction Mount
Corner Mount Bracket	Vertical Pole Mount Bracket
