Bullet termica ibrida IP AI 400x300/4 MP 7.5/4 mm - immagine 1

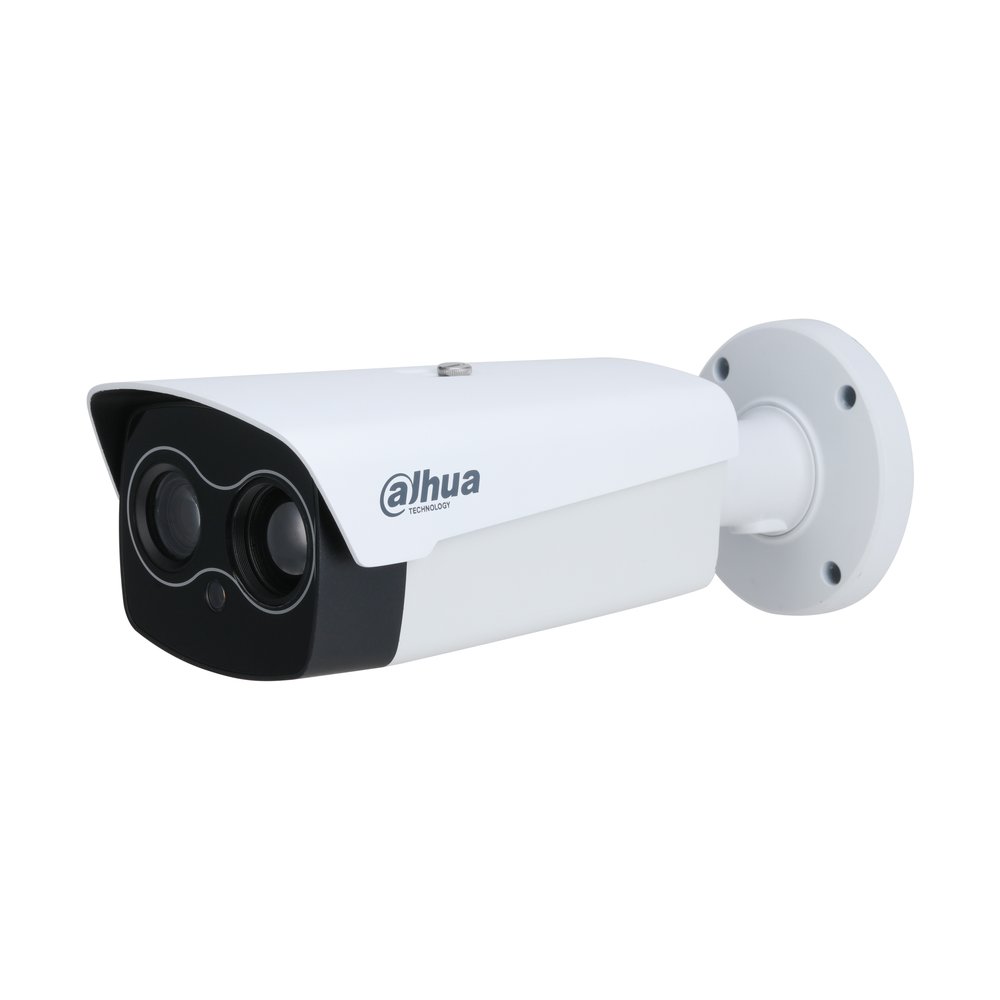

Bullet termica ibrida IP AI 400×300/4 MP 7.5/4 mm

Name: Bullet termica ibrida IP AI 400x300/4 MP 7.5/4 mm
Brand: Dahua
SKU: TPC-BF5441-B7F4-J-S2
Price: 4609.77 EUR
Availability: BackOrder

Dahua

COD: TPC-BF5441-B7F4-J-S2 Categorie: Telecamere termiche, Videosorveglianza Tag: Termica

4.609,77 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 9.219,54 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera IP Bullet ibrida termica

Codice produttore: DHI-TPC-BF5441

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Effective Pixels	400 (H) × 300 (V)
Pixel Pitch	17 μm
Spectral Range	8 μm–14 μm
Sensitivity (NETD)	≤35 mK (@f/1.0) 7.5 mm: H:53.5°; V: 39.5° 13 mm: H:30.4°; V: 22.5°
Field of View	19 mm: H:20.3°; V: 15.3° 25 mm: H:15.5°; V: 11.6° 35 mm: H:11.1°; V: 8.3°
Thermal Focus Control	Fixed-focal 7.5 mm: 1.2 m (3.93 ft) 13 mm: 2.9 m (9.51 ft)
Close Focus Distance	19 mm: 5.5 m (18.04 ft) 25 mm: 9 m (29.53 ft) 35 mm: 36 m (118.10 ft)
Digital Detail Enhancement	Yes
Digital Zoom	19 levels
Thermal AGC	Auto/Manual
Thermal Noise Reduction	2D NR/3D NR
Image Flip	180°; Mirror
Color Palettes	painting/pomegranate/emerald /spring/summer/ autumn/winter)
Visible
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Pixel	4 MP
Horizontal Definition	≥1100 TVL Color: 0.01 lux
Min. Illumination	Black & white: 0.001 lux 0 lux (white light on)
Visible AGC	Auto/Manual
Visible Noise Reduction	2D NR/3D NR
S/N Ratio	>55 dB Auto; manual; indoor; outdoor; tracking; sodium lamp;
White Balance	street lamp; natural
Defog
Electronic Shutter Speed	1 s–1/30,000 s (auto/manual)
BLC	Yes
WDR	Yes
HLC	Yes
Day/Night	Auto (ICR); Color; B/W
Iris Control	Fixed
Image Flip	180°; Mirror
Exposure Compensation	Yes
Visible Focus Control	Fixed-focal 4 mm: H: 87.0°; V: 47.3° 6 mm: H: 55.3°; V: 30.0°
Field of View	12 mm: H:37.3°; V: 21.4° 10–30 mm: H: 42°–15°;V: 23°–8.4° 4 mm: 1.2 m (3.93 ft) 6 mm: 2.5 m (8.20 ft)
Close Focus Distance	12 mm: 7.4 m (24.27 ft) 10–30 mm: 9 m (29.53 ft) 4 mm: F1.6 6 mm: F1.6
Aperture	12 mm: F1.7 10–30 mm: F1.7
Illuminator On/Off Control	Auto; manual
Illumination Distance	80 m (262.47 ft)
Audio And Video
Video Compression	H.265; H.264M; H.264H; H.264B Thermal: Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default) Sub stream: 640 × 512; 640 × 480; 400 × 300;
Resolution	400 × 300 (default) Visible: Main stream: 2688 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 720); 704 × 576; 2560 × 1440 (default) Sub stream: 704 × 576; 352 × 288; 704 × 576 (default) Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default
Video Frame Rate	Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression	G.711a; G.711 mu
Image Encoding Format	JPEG
Function
Two-way Audio	Yes
Sound and Light Alarm	Local audio and white light alarm prompts IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP;
Network Protocol	SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
Region of Interest (RoI)	Yes (customizable)
Storage
Interoperability	ONVIF; CGI; DaHua SDK
Browser	IE; Firefox; Chrome; Safari
User/Host	Up to 20 (total bandwidth: 64 MB) Authorized username and password; attached MAC
Security	address; encrypted HTTPS; IEEE 802.1x; controlled network access Up to 20 users; supports multi-level user permissions (2
User Management	levels): management group and user group Network disconnection detection; IP conflict detection;
Malfunction Detection	memory card state detection; memory space detection
Fusion Mode	Yes. Off by default
PIP	Yes
Intelligence
Heat Detection	Yes
Cold/Hot Spot Trace	Yes
Perimeter Protection	Yes. Supports tripwire and intrusion.
Target Distinction	Human/Vehicle Classification
Smoke Detection	Yes
Port
Analog Output	device with a junction box)
Network Port	1 × RJ-45 (10/100 Base-T)
Alarm Input	2
Alarm Output	2
Audio Input	1
Audio Output	1
RS-485	1
Power
Power Supply	12 VDC ± 20%, PoE (802.3af), ePoE, PoE+ Basic: 5 W (12 VDC); 8.9 W (PoE)
Power Consumption	Max: 15 W (12 VDC); 18 W (PoE)
ePoE	Yes
Environment
Operating Temperature	–30 °C to +70 °C (–22 °F to +158 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection	IP67 Surge protection: 6 kV
Reliability	Air discharge: 15 kV Contact discharge: 8 kV
Structure
Product Dimensions	4.73") (L × W × H) 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01")
Packaging Dimensions	(L × W × H)
Net Weight	≤2.35 kg (5.18 lb)
Gross Weight	≤2.7 kg (5.95 lb)
Certifications
7.5 mm	75 m (246.06 ft)
13 mm	128 m (419.94 ft)
19 mm	186 m (610.23 ft)
25 mm	250 m (820.20 ft)
35 mm	350 m (1148.28 ft)
Certifications
7.5 mm	180 m (590.55 ft) 60 m (196.85 ft)
13 mm	312 m (1,023.62 ft) 104 m (341.21 ft)
19 mm	456 m (1,496.06 ft) 152 m (498.69 ft)
25 mm	600 m (1,968.50 ft) 200 m (656.17 ft)
35 mm	840 m (2,755.91 ft) 280 m (918.64 ft)
Dri Distance
Focal Length	Distance Distance Distance ① ② ③ Vehicle: 676 m Vehicle: 169 m Vehicle: 85 m (2,217.85 ft); (554.46 ft); (278.87 ft);
7.5 mm	Human: 221 m Human: 55 m Human: 28 m (725.07 ft) (180.45 ft) (91.86 ft) Vehicle: 1,173 m Vehicle: 293 m Vehicle: 147 m (3,848.43 ft); (961.29 ft); (482.28 ft);
13 mm	Human: 382 m Human: 96 m Human: 48 m (1,253.28 ft) (314.96 ft) (157.48 ft) Vehicle: 1,714 m Vehicle: 428 m Vehicle: 214 m (5,623.36 ft); (1,404.20 ft); (702.10 ft);
19 mm	Human: 559 m Human: 140 m Human: 70 m (1,833.99 ft) (314.96 ft) (229.66 ft) Vehicle: 2,255 m Vehicle: 564 m Vehicle: 282 m (7,398.29 ft); (1,850.39 ft); (925.20 ft);
25 mm	Human: 735 m Human: 184 m Human: 92 m (2,411.42 ft) (603.67 ft) (301.84 ft)
35 mm	Human: 1,029 m Human: 257 m Human: 129 m (3,375.98 ft) (843.18 ft) (423.23 ft)
Ordering Information
Type	Model Description DHI-TPC-BF5441-B7F4 Thermal: 7.5 mm; DHI-TPC-BF5441-B7F4-J Visible: 4 mm DHI-TPC-BF5441-B13F6 Thermal: 13 mm; DHI-TPC-BF5441-B13F6-J Visible: 6 mm DHI-TPC-BF5441-B19F12 Thermal: 19 mm;
Security	DHI-TPC-BF5441-B19F12-J Visible: 12 mm DHI-TPC-BF5441-B25F12 Thermal: 25 mm; DHI-TPC-BF5441-B25F12-J Visible: 12 mm DHI-TPC-BF5441-B35Z3 Thermal: 35 mm; DHI-TPC-BF5441-B35Z3-J Visible: 10mm-30 mm PFA151 + PFA121 Corner Mount Bracket PFA121 Junction Mount
Accessories
(Optional)	PFA150+PFA121 Vertical Pole Mount Bracket PFM320D Power Adapter
Accessories
-J model)	PFA154 Vertical Pole Mount Bracket
Optional:
PFA151 + PFA121	PFA121 PFA150 + PFA121
Corner Mount Bracket	Junction Mount Vertical Pole Mount Bracket
For Junction Box Model (-J):
Vertical Pole Mount Bracket	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
