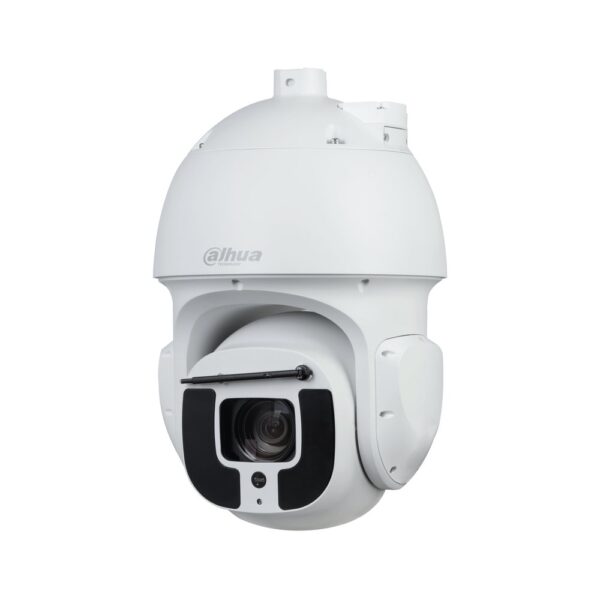

PTZ IP AI 5G 4 MP zoom 40x IR

Name: PTZ IP AI 5G 4 MP zoom 40x IR
Brand: Dahua
SKU: SD8A440PA-HNF-5G
Price: 5042.87 EUR
Availability: BackOrder

Dahua

COD: SD8A440PA-HNF-5G Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

5.042,87 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 10.085,74 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Speed dome IP AI WizMind 5G Starlight 8" da interno/esterno IP67, sensore CMOS Starvis progressivo 1/1.8", risoluzione 4 MP a 50fps, rotazione PAN 360° endless / TILT -30°~90°, auto flip 180°, H.265+, ICR, zoom ottico 40x (5.6~233 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.005 lux ƒ1.4 (0 con IR On), portata IR fino a 500 m, 1 porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 uscita BNC, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR 140 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati video, face recognition, auto tracking, micro SD card (512 GB), tergiottica smart, alimentazione 36 Vdc <53 W, alimentatore e staffa da parete PFB306W inclusi

Datasheet

Scheda Tecnica

Manuali

Camera
Image Sensor	1/1.8" CMOS
Pixel	4 MP
Max. Resolution	2560 (H) × 1440 (V)
Electronic Shutter Speed	1/1 s–1/30,000 s
ROM	8G
RAM	2G
Scanning System	Progressive Color: 0.005 lux@F1.4
Min. Illumination	B/W: 0.0005 lux@F1.4 0 lux(IR light on)
Illumination Distance	500 m (1640.42 ft) (IR)
Illuminator On/Off Control	Zoom Prio; Manual
Illuminator Number	10 (IR)
Lens
Focal Length	5.6 mm–223 mm
Max. Aperture	F1.4–F4.5
Field of View	H: 61.8°–2.2°; V: 36.3°–1.3°; D: 69.2°–2.4°
Optical Zoom	40×
Focus Control	Auto; semi-auto; manual
Close Focus Distance	0.5 m–2 m (1.64 ft–6.56 ft)
Iris Control	Auto; Manual Detect Observe Recognize Identify 3,034.5 m 1,198.6 m 606.9 m 303.4 m (9,955.71 ft) (3,932.48 ft) (1,991.14 ft) (995.41 ft) *DORI (Detect, Observe, Recognize, Identify) is a
DORI Distance	standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Tilt: –30° to +90°, auto flip 180° Pan: 0.1°/s–240°/s
Manual Control Speed	Tilt: 0.1°/s–75°/s
Preset Speed	Pan: 220°/s; Tilt: 100°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Pattern; Preset; Scan; Tour DH-SD
PTZ Protocol	Pelco-P/D (Auto recognition)
Intelligence
Video Metadata	and annual inspection sticker. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella. Face attributes: Gender, age, facial expressions, glasses, face mask, and mustache. Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving;
IVS (Perimeter Protection)	parking detection; people gathering; vehicle/human alarm classification; linkage tracking Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache;
Face Recognition	Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first Supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces.
Auto Tracking	Yes
Video
Video Compression	Stream); Smart H.264+; H.264M
Streaming Capability	3 streams 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 ×
Resolution	960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/1080p/1.3M/720p (1–50/60 fps)
Video Frame Rate	Sub stream 1: D1/CIF (1–50/60 fps) Sub stream 2: 1080p/1.3M/720p (1–50/60 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.265/H.264: 512 kbps–8192 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	140 dB
HLC	Yes Auto; indoor; outdoor; ATW; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Region of Interest (RoI)	Yes
Image Stabilization	Yes
Defog
Digital Zoom	16×
Image Rotation	180° Up to 24 areas can be set, with up to 8 areas in the
Privacy Masking	same view
S/N Ratio	≥55 dB
Audio
Audio Compression	G.711a; G.711Mu; G7221; G726; MP2L2; G729
Network
Network Port	RJ-45 (10/100 Base-T)
4G	Yes
Carrier Network System	4G;5G 5G NR: N1/2/3/5/7/8/25/38/40/41/48/66/77/78/79
Wireless Carrier Frequency	LTE-TDD: Band 34/38/39/40/41/42/48
Band	LTE-FDD: Band 1/2/3/4/5/7/19/25/30/32/66 UMTS: Band 1/2/3/4/5/8/19 5G: Power class2: 26 dBm +2/-3dB Power class3: 23 dBm ± 2 dB
Max Transmission Power	4G: Power class2: 26 dBm +2/-3 dB Power class3: 23 dBm ± 2 dB 3G: Power class3: 24 dBm +1/-3 dB TCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP;
Network Protocol	IGMP; HTTP; DHCP; SMTP; SNMPv1/v2c/v3(MIB-2); Qos; RTSP; ARP
Interoperability	ONVIF (ProfileS&G&T); CGI; Dahua SDK
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	Firefox 50 and later versions iOS 10 and later versions
Management Software	DMSS; DSS pro
Mobile Client	iOS; Android
Port
Analog Output	1 channel (CVBS output, BNC)
RS-485	1 (baud rate: 1200 bps–9600 bps)
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT,bare wire) Capture; preset; tour; pattern; recordings; alarm
Alarm Linkage	digital input; send email Motion/Tampering detection; audio detection; network disconnection detection; IP conflict
Alarm Event	detection; memory card state detection; memory space detection
Alarm I/O	7/2
Audio I/O	1/1
Power
Power Supply	36 VDC/3 A±25% Basic: 22 W
Power Consumption	Max.: 53 W (illuminator + PTZ + pulling stream in 5G)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity	≤95% IP67, TVS 8000 V lightning proof; surge protection;
Protection	voltage transient protection
Product Dimensions	415.9 mm × Φ262.0 mm (16.37" × Φ10.32")
Net Weight	8.5 kg (18.74 lb)
Gross Weight	13.3 kg (29.32 lb)
Ordering Information
Type	Model Description
4M	4MP 40x 5G Starlight WizMind Network PTZ
WizMind	DH-SD8A440PA-HNF-5G
Camera
PTZ Camera	DC36V/2.23A Power Adapter PFB306W Wall Mount Bracket PFA118 Mount Adapter PFB710C Ceiling Mount Bracket
Included:
DC36V/2.23A	PFB306W
Power Adapter	Wall Mount Bracket
Optional:
PFA118	PFB710C PFA150
Mount Adapter	Ceiling Mount Pole Mount Bracket Bracket PFA120 PFB301C
PFB301S-E	Junction Box Ceiling Mount
Plane Mount Bracket	Bracket
Bracket	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
