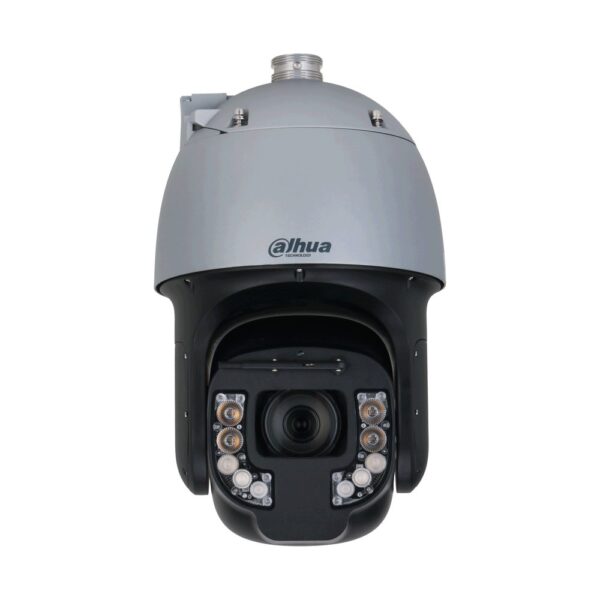

PTZ IP AI 2 MP zoom 60x IR

Name: PTZ IP AI 2 MP zoom 60x IR
Brand: Dahua
SKU: SD8C260PA1-HNF
Price: 5052.02 EUR
Availability: BackOrder

Dahua

COD: SD8C260PA1-HNF Categorie: Telecamere IP, Videosorveglianza Tag: 2MP

5.052,02 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 10.104,04 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Speed dome IP AI WizMind Starlight 8" da interno/esterno IP67, sensore CMOS Starvis progressivo 1/1.8", risoluzione 2 MP a 25fps, rotazione PAN 360° endless / TILT -20°~90°, H.265+, ICR, zoom ottico 60x (5.6~336 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.005 lux ƒ1.4~4.5 (0 con IR On), portata IR fino a 500 m, porta LAN 100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR 120 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati video, face recognition, auto tracking, micro SD card (512 GB), tergiottica smart, alimentazione 36 Vdc <33 W

Datasheet

Scheda Tecnica

Manuali

Camera
Image Sensor	1/1.8" CMOS
Pixel	2 MP
Max. Resolution	1920 (H) × 1080 (V)
ROM	8 GB
RAM	2 GB
Electronic Shutter Speed	1/1 s–1/30,000 s
Scanning System	Progressive Color: 0.005 lux@F1.4
Min. Illumination	B/W: 0.0005 lux@F1.4 0 lux (IR light on)
Illumination Distance	500 m (1,640.42 ft)
Illuminator On/Off Control	Zoom Prio; Manual; Smart IR; Off
Illuminator Number	10 (IR light)
Lens
Focal Length	5.6 mm–336 mm
Max. Aperture	F1.4–F4.5
Field of View	H: 56.4°–1.2°; V: 32.7°–0.7°; D: 63.6°–1.7°
Optical Zoom	60×
Focus Control	Auto; semi-auto; manual
Close Focus Distance	0.5 m–2 m (1.64 ft–6.56 ft) Detect Observe Recognize Identify
DORI Distance	6,720 m 2,666.7 m 1,344 m 672 m (22,047.24 ft) (8,749.02 ft) (4,409.45 ft) (2,204.72 ft)
Ptz
Pan/Tilt Range	Tilt: –20° to +90° Pan: 0.1°/s–240°/s
Manual Control Speed	Tilt: 0.1°/s–100°/s
Preset Speed	Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–60°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Pattern; Preset; Scan; Tour DH-SD
PTZ Protocol	Pelco-P/D (auto recognition)
Intelligence
Video Metadata	and non-motor vehicle image capture and attributes extraction.
IVS (Perimeter Protection)	detection; people gathering; vehicle/human alarm classification
Face Recognition	Yes
Auto Tracking	Yes
Video
Video Compression	Stream 1); Smart H.264+
Streaming Capability	3 streams 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 ×
Resolution	720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 1080p/960p/720p (1–25/30 fps)
Video Frame Rate	Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/960p/720p (1–25/30 fps)
Bit Rate Control	CBR; VBR
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	120 dB
HLC	Yes Auto; indoor; outdoor; tracking; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Image Stabilization	Electronic Image Stabilization (EIS)
Defog
Digital Zoom	16×
Image Rotation	180° Up to 24 areas can be set, with up to 8 areas in the
Privacy Masking	same view; multiple colors available
S/N Ratio	≥55 dB
Audio
Audio Compression	G729; G723
Network
Network Port	RJ-45 (10/100 Base-T) FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP;
Network Protocol	NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP
Interoperability	CGI; SDK; ONVIF (Profile S&G&T)
Streaming Method	Unicast; Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	Firefox 50 and later versions Safari 10 and later versions
Mobile Client	iOS; Android
Port
Analog Output	1 channel (CVBS output, BNC)
RS-485	1 (baud rate: 1,200 bps–115,200 bps)
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT, bare wire)
Alarm I/O	7/2
Audio I/O	1/1 Capture; preset; tour; pattern; recordings; alarm digital
Alarm Linkage	input; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection;
Alarm Event	memory card state detection; memory space detection; power exception detection
Power
Power Supply	36 VDC, 2.23 A (± 25%), Hi-PoE Basic: 18 W
Power Consumption	Max.: 33 W (illuminator + PTZ)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95% IP67; TVS 8000 V lightning proof; surge protection;
Protection	voltage transient protection
Structure
Product Dimensions	442 mm × Φ262 mm (17.40" × Φ10.31")
Net Weight	10.3 kg (22.71 lb)
Gross Weight	12.5 kg (27.56 lb)
Ordering Information
Type	Model Description 2MP 60x Starlight IR Network PTZ DH-SD8C260PA1-HNF
Camera
2M Camera	2MP 60x Starlight IR Network PTZ SD8C260PA1-HNF
Included:
DC36V/2.23A	PFB306W-S
Power Adapter	Wall Mount Bracket
:
PFB718C-SG	PFB711C-SG PFA5500 + PFB306W-S
Ceiling Mount Bracket	Ceiling Mount Bracket Vertical Pole Mount Bracket PFA151 + PFB306W-S
PFA5500 + PFB718C-SG	Corner Mount Bracket
