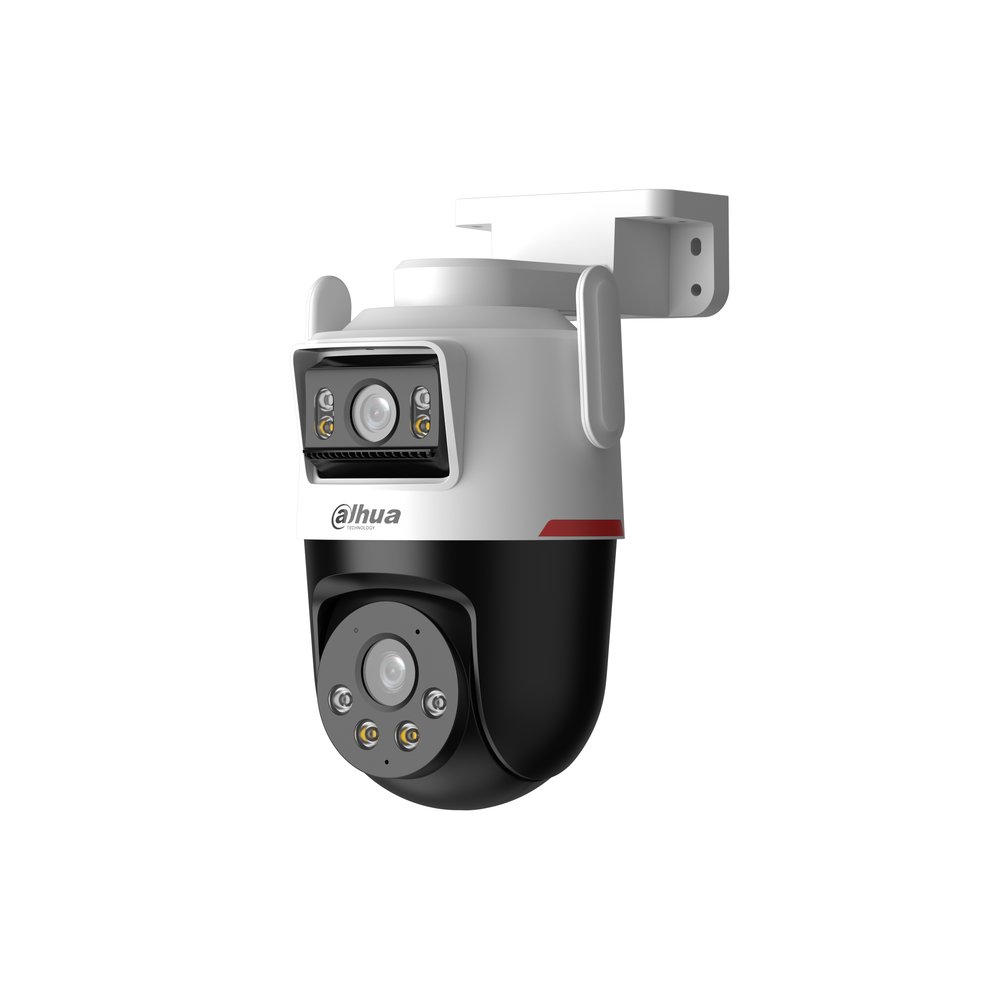

PT IP/Wi-Fi WizColor deterrenza 3+3 MP 6/2.8 mm LED audio

Name: PT IP/Wi-Fi WizColor deterrenza 3+3 MP 6/2.8 mm LED audio
Brand: Dahua
SKU: IPC-PTS2349B3-SW-E2-PV
Price: 214.72 EUR
Availability: BackOrder

Dahua

COD: IPC-PTS2349B3-SW-E2-PV Categorie: Telecamere IP, Videosorveglianza

214,72 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 429,44 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera PT IP/Wi-Fi WizColor con doppia ottica e deterrenza attiva da interno/esterno IP66, sensori CMOS progressivi 1/2.9", risoluzione 2×3 MP a 20fps, H.265, rotazione PAN 352° / TILT 0°~90°, ottica fissa 6 mm F1.6 (PT) / 2.8 mm F1.6, portata warm light 40 m, 1 porta RJ-45 10/100 Mbps, connessione Wi-Fi 6 2.4 G, Bluetooth pairing, microfono e speaker integrati (comunicazione bidirezionale), allarme luminoso e sonoro, AI human/vehicle detection, motion detection, auto tracking, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc/PoE <11.1 W, alimentatore incluso

Datasheet

Scheda Tecnica

Manuali

Ai Isp
Clear images with sharp details	image under low-light conditions
Ip66 Protection
Guards the places that matter to you	Withstands harsh environments
One Camera For 360° View
Provides instant alarms to deter	360° monitoring without blind spots
Bluetooth Pairing
Fast pairing with Bluetooth	anti-interference
Camera
Image Sensor	Channel 2 (Fixed Lens): 1/2.9" CMOS
Max. Resolution	Channel 1-2: 2304 (H) × 1296 (V)
Illumination Distance	Up to 40 m (131.23 ft) (Warm light)
Illuminator Number	4 (Warm light) Pan: 0° to 352°
Angle Adjustment	Tilt: 0° to 90°
Lens Type	Fixed-focal Channel 1 (PT Lens): 6 mm
Focal Length	Channel 2 (Fixed Lens): 2.8 mm
Max. Aperture	F1.0 Channel 1 (PT Lens): H: 52°; V: 29°; D: 60°
Field of View	Channel 2 (Fixed Lens): H: 89°; V: 48°; D: 105°
Intelligence
Human Detection	Yes
Vehicle Detection	Yes
Audio And Video
Video Compression	supported by sub stream) Main stream: 2304 × 1296@(1–20 fps) sub stream: 640 × 360@(1–25/30 fps)
Video Frame Rate	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Video Bit Rate	H.265: 512 kbps–4096 kbps
Day/Night	Color/B/W
WDR	120 dB
Motion Detection	OFF/ON (4 areas, rectangular)
Image Rotation	0°/180°
Built-in MIC	Yes, built-in Mic
Built-in Speaker	Yes, built-in speaker Tools: Documents: Power: Installation Position QR Code × 1 Power Adapter × 1 Map × 1 Quick Start Guide × 1 Screw Package × 1 Legal and regulation Waterproof Connector information × 1 × 1 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Audio Compression	G.711a; G.711Mu; PCM; G.726
Network
Network Port	RJ-45 (10/100 Base-T) IEEE 802.11b/g/n 2.4 G, EIRP≤20 dBm@2400–2483.5
Wi-Fi	MHz (CE)
Wi-Fi Pairing	Bluetooth pairing
Storage
Management Software	Smart PSS Lite; DSS; DMSS
Mobile Client	Android;iOS
Function
Abnormal Sound Alarm	Yes
Certifications
Power Supply	12 VDC (±30%); PoE (802.3af) Basic: 2.3 W (12 VDC); 3.1 W (PoE);
Power Consumption	Max.: 9.8 W (12 VDC); 11.1W (PoE) (intelligence on + WDR + illuminator on + PT rotation + speaker on)
Operating Temperature	–30 °C to +50 °C (–22 °F to +122 °F)
Operating Humidity	≤95%
Protection	IP66
Camera Button	Reset button
Casing Material	Plastic 159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" ×
Product Dimensions	8.27") (L × W × H)
Net Weight	585 g (1.29 lb)
