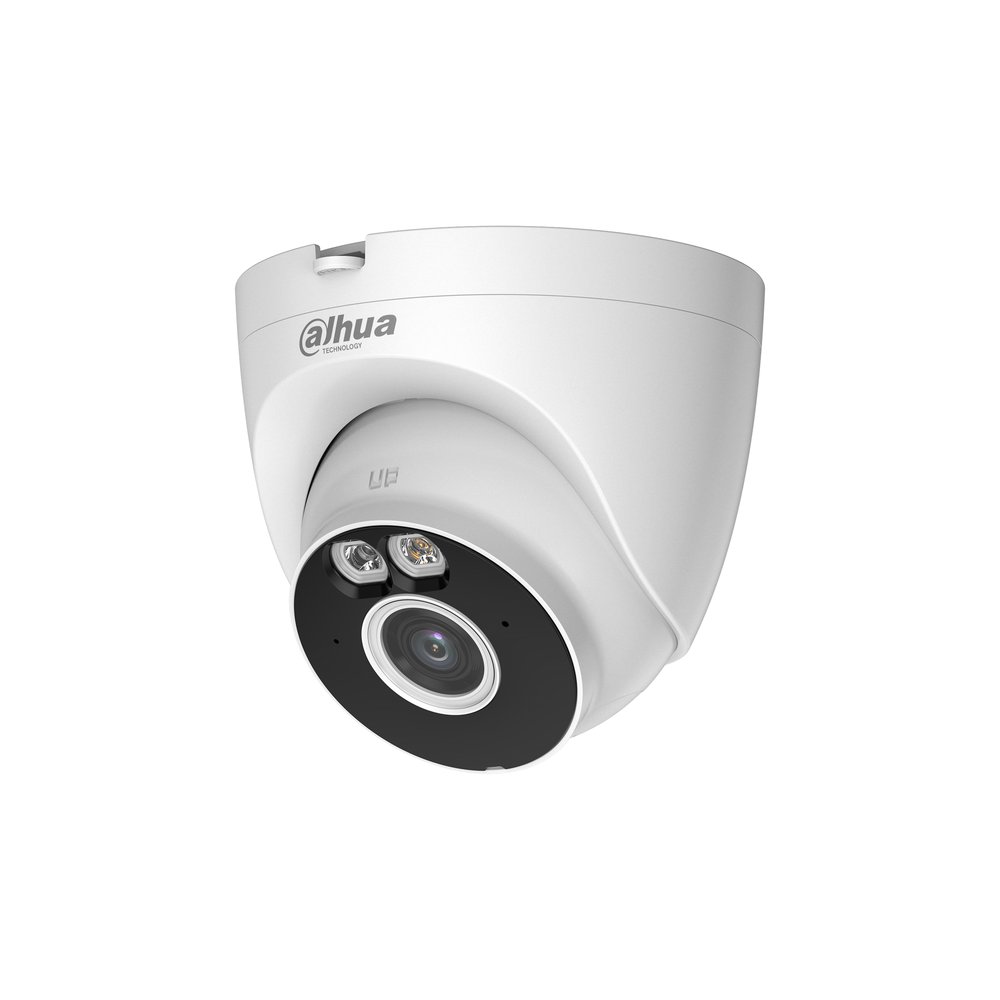

Eyeball IP/Wi-Fi Smart Dual Light 5 MP 2.8 mm IR/LED mic

Name: Eyeball IP/Wi-Fi Smart Dual Light 5 MP 2.8 mm IR/LED mic
Brand: Dahua
SKU: IPC-HDW1539DA-SAW-IL
Price: 103.09 EUR
Availability: BackOrder

Dahua

COD: IPC-HDW1539DA-SAW-IL Categorie: Telecamere IP, Videosorveglianza Tag: 5MP

103,09 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 206,18 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera eyeball IP/Wi-Fi Smart Dual Light da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps, H.265, ICR, ottica fissa 2.8 mm F1.6, luminosità 0.007 lux F1.6, portata IR/white light fino a 30 m, 1 porta RJ-45 10/100 Mbps, connessione Wi-Fi 6 2.4 G, microfono integrato, AI human/vehicle detection, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc <5.1 W, alimentatore incluso, case in metallo + plastica

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Ai Human Detection
Clear images with sharp details	Focuses on what matters and reduces false alarms
Smart Dual Light
Provides traceable audio details	Captures color details for post-event review
H.265
Seamless integration of speed and	Advanced H.265 compression
anti-interference	technology
Camera
Image Sensor	1/2.7" CMOS
Max. Resolution	2880 (H) × 1620 (V) 0.007 lux@F1.6 (Color, 30 IRE)
Min. Illumination	0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) Up to 30 m (98.43 ft) (IR)
Illumination Distance	Up to 30 m (98.43 ft) (Warm light)
Illuminator Number	1 (IR LED); 1 (Warm light) Pan: 0°–360°
Angle Adjustment	Tilt: 0°–78° Rotation: 0°–360°
Lens Type	Fixed-focal
Focal Length	2.8 mm;3.6 mm
Max. Aperture	F1.6 2.8 mm: H: 108°; V: 57°; D: 129°
Field of View	3.6 mm: H: 89°; V: 48°; D: 104°
Intelligence
Human Detection	Yes
Vehicle Detection	Yes
Audio And Video
Video Compression	supported by sub stream) Main stream: 2880 × 1620@(1–25/30 fps) sub stream: 640 × 360@(1–25/30 fps)
Video Frame Rate	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. H.264: 32 kbps–6144 kbps
Video Bit Rate	H.265: 32 kbps–6144 kbps
Day/Night	Auto(ICR)/Color/B/W
WDR	DWDR Tools: Documents: Power: Position Map × 1 QR Code × 1 Power Adapter × 1 Screw Package × 1 Quick Start Guide × 1 Waterproof Connector Legal and regulation × 1 information × 1 Mounting Plate × 1 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Image Rotation	0°/180°
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM
Network
Network Port	RJ-45 (10/100 Base-T) IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G,
Wi-Fi	EIRP≤20 dBm
Wi-Fi Pairing	Bluetooth pairing
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI
Storage
Management Software	Smart PSS Lite; DSS; DMSS
Mobile Client	iOS;Android
Certifications
Power Supply	12 VDC Basic: 2.1 W (12 VDC);
Power Consumption	Max.: 5.1 W (12 VDC) (H.265 + warm light on)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Protection	IP67
Camera Button	Reset button
Casing Material	Metal + plastic
Product Dimensions	102.2 mm × Φ109.9 mm (4.02" × Φ4.33")
Net Weight	0.32 kg (0.71 lb)
