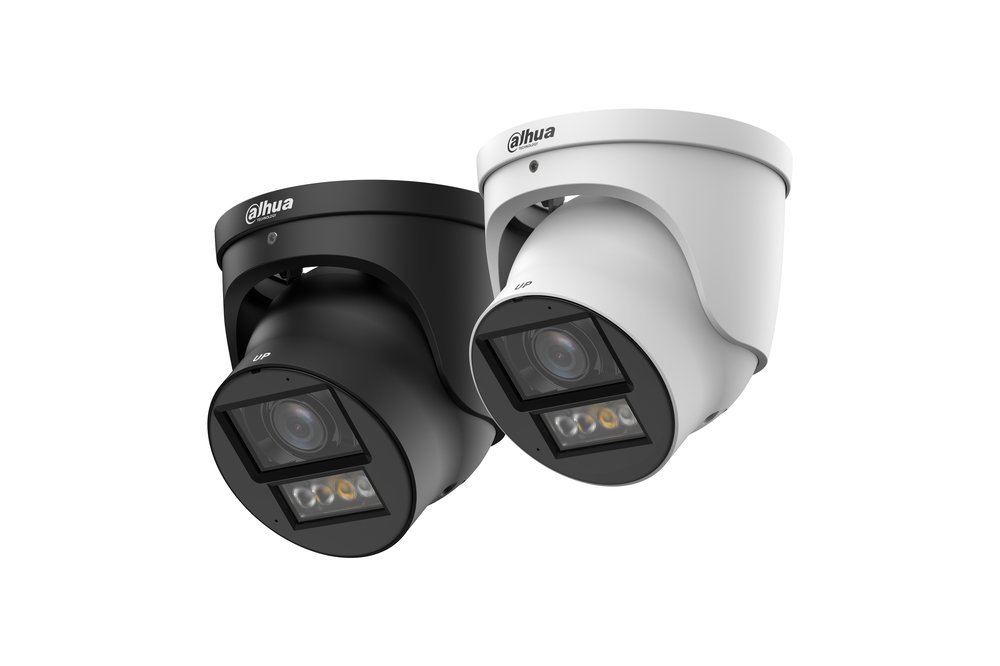

Eyeball IP AI WizColor Smart Dual Light 4 MP 2.7~12 mm IR/LED mic

Name: Eyeball IP AI WizColor Smart Dual Light 4 MP 2.7~12 mm IR/LED mic
Brand: Dahua
SKU: IPC-HDW5459H-ZE-PV-PRO
Price: 664.90 EUR
Availability: BackOrder

Dahua

COD: IPC-HDW5459H-ZE-PV-PRO Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

664,90 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.329,80 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera eyeball IP AI Xinghan WizMind WizColor con Smart Dual Light e deterrenza attiva da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/1.8", risoluzione 4 MP a 25fps, AI coding, H.265+, ICR, ottica motorizzata 2.7~12 mm F1.2, luminosità 0.0006 lux F1.2, portata IR/warm light fino a 60/50 m, 1 RS485, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con doppio microfono e speaker integrati, sirena e luci, 1 porta RJ-45 10/100 Mbps, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), face detection, people counting, heat map, metadati video, privacy mask 4 mosaici/8 blocchi, 3D NR, WDR 140 dB, slot micro SD card (fino a 1 TB), alimentazione 12 Vdc/PoE+/ePoE <21.1 W

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Camera
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	4 GB
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.0006 lux@F1.2 (Color, 30 IRE)
Min. Illumination	0.0003 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB Up to 60 m (196.85 ft) (IR)
Illumination Distance	Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control	Auto;Manual;Zoomprio
Illuminator Number	4 (Multi-core (IR + warm) light) Pan: 0°–360°
Angle Adjustment	Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Motorized vari-focal
Lens Mount	φ14
Focal Length	2.7 mm-12 mm
Max. Aperture	F1.2
Field of View	H: 114°–48°; V: 59°–27°; D: 143°–56°
Iris Control	Auto
Iris Control Type	P-Iris
Close Focus Distance	0.2 m (0.67 ft)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)	gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0
AcuPick	animal and motor vehicles, and search through live and recorded videos to quickly locate targets. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6
Face Detection	attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting
People Counting	report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map	Yes Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle
Video Metadata	attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos
Video
Video Compression	by the sub stream) AI H.265; AI H.264
AI Coding	*include smart codec technology, Smart H.265+ and Smart H.264+ Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Video Frame Rate	Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	4 streams 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p
Resolution	(1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	VBR;CBR H.264: 3 kbps–16384 kbps;
Video Bit Rate	H.265: 3 kbps–16384 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	140 dB
Scene Self-adaptation (SSA)	Yes Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Smart Illumination	Yes
Smart Dual Light	Yes
Defog
Image Rotation	1520) resolution and lower)
Mirror	Yes
Privacy Masking	4 mosaics or 8 color blocks
LDC	Yes
Audio
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network Port	RJ-45 (10/100 Enhancement Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host	20 (Total bandwidth: 80 M)
Storage
Browser	Chrome: Chrome 102 and later; Firefox: Firefox 88 and later
Management Software	DSS; DMSS; DoLynk Care
Mobile Client	iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509
Security	certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Light Warning	Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low Offers 11 sound alarms and supports importing 10 custom sound alarms.
Sound Warning	Sound: 0–100. Play times can be set from 1 to 10.
Port
RS-485	1 (baud rate range: 1200 bps–115200 bps)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: wet contact, 5 mA 3–5 VDC 1 channel out: dry contact, 1,000 mA 30 VDC/500 mA
Alarm Output	50 VAC 12 VDC power output, max. current 165 mA, peak
Power Output	current 700 mA
Power
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE When the power adapter and PoE provide power at
Dual Power Backup	the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 4.1 W (12 VDC); 4.8 W (PoE);
Power Consumption	Max.: 21.6 W (12 VDC); 24.2 W (PoE) (IR on + WDR + intelligence on + siren and light active deterrence)
ePoE	Yes
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Protection	IP67; IK10
Structure
Casing Material	Metal
Product Dimensions	127.6 mm × Φ122.0 mm (5.02" × Φ4.80")
Net Weight	0.92 kg (2.03 lb)
Gross Weight	1.15 kg (2.54 lb)
Ordering Information
Type	Model Description 4MP WizColor Vari-focal DH-IPC-HDW5459H-ZE-PV-
IP CAMERA	Eyeball WizMind Network PRO
Camera
Type	Model Description DH-PFB220C Ceiling Mount Bracket DH-PFA106 Mount Adapter DH-PFA151 Corner Mount Bracket DH-PFB305W Wall Mount Bracket DH-PFA150 Pole Mount Bracket
Accessories (Optional)	DH-PFA156 Pole Mount Bracket DH-PFB2203W Wall Mount Bracket DH-PFA137 Junction Box DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/1TB MicroSD Card
Accessories
DH-PFA106	DH-PFA137 DH-PFA150
Mount Adapter	Junction Box Pole Mount Bracket
DH-PFA151	DH-PFA156 DH-PFB2203W
Corner Mount Bracket	Pole Mount Bracket Wall Mount Bracket
DH-PFB220C	DH-PFB305W DH-PFM320D-EN
Ceiling Mount Bracket	Wall Mount Bracket DC12V2A power adapter
DHI-TF-P100/1TB	PFM900-E
MicroSD Card	Integrated Mount Tester 2025 Dahua. All rights reserved. Design and speciﬁcatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail.
