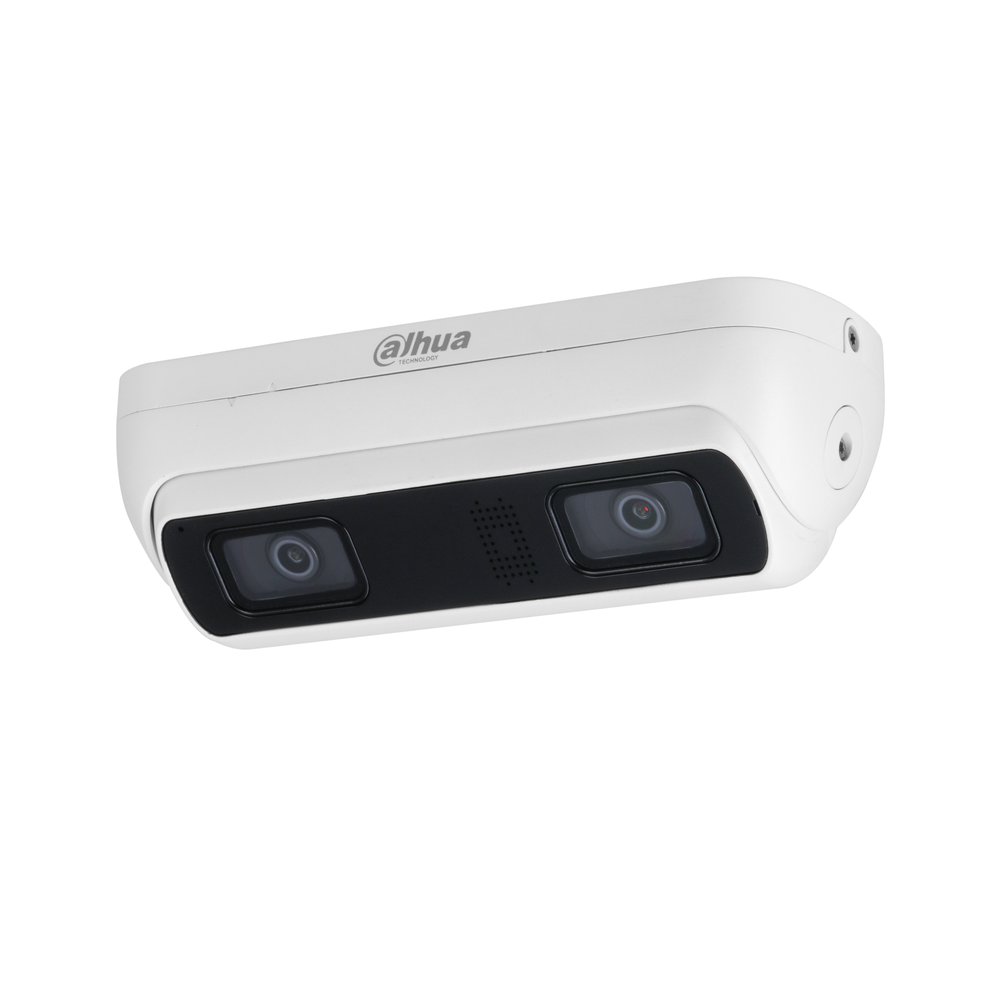

Dual camera IP AI 4 MP 2×2.0 mm IR mic analisi stereo

Name: Dual camera IP AI 4 MP 2x2.0 mm IR mic analisi stereo
Brand: Dahua
SKU: IPC-HDW8441X-BV-3D-0200B
Price: 747.25 EUR
Availability: BackOrder

Dahua

COD: IPC-HDW8441X-BV-3D-0200B Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

747,25 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.494,50 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera IP AI WizMind a doppia ottica con stereo analysis da interno/esterno IP67 antivandalo IK10, 2 sensori CMOS progressivi 1/2.8", risoluzione 4 MP a 25fps, AI Coding, H.265+, ICR, ottiche fisse M12 2.0 mm F2.0, luminosità 0.005 lux F2.0 (0 con IR on), portata IR fino a 20 m, 1 porta LAN 10/100/1000 Mbps, 2 ingressi e 2 uscite allarme, 2 ingressi e 1 uscita audio con microfono integrato, 1 RS485, 1 uscita CVBS, IVS (protezione perimetrale), oggetto abbandonato/mancante, stereo analysis, privacy mask 8 aree, 3D NR, micro SD card (512 GB), alimentazione 12 Vdc/PoE <12.9 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/2.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	4 GB
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 2.0 mm: 0.005 lux@F2.0 (Color,30 IRE) 0.0005 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on)
Min. Illumination	2.8 mm: 0.005 lux@F1.6(Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	Up to 20 m (65.62 ft) (IR)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	1 (IR LED)
Angle Adjustment	Tilt: -10° to 70°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm;2.0 mm 2.0 mm: F2.0
Max. Aperture	2.8 mm: F1.6 2.0 mm: H: 108°; V: 74°; D: 117°
Field of View	2.8 mm: H: 87°; V: 55°; D: 97°
Iris Control	Fixed 2.0 mm: 0.4 m (1.31 ft)
Close Focus Distance	2.8 mm: 1.1 m (3.61 ft)
Dori
Distance	(208.66 ft) ( 83.33 ft) (41.67 ft) (21.00 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Smart Event
IVS	Abandoned object; missing object
Intelligence
IVS (Perimeter Protection)	vehicle and human); parking detection; people gathering; loitering detection; privacy protection
Stereo Analysis	(including fighting and smashing); fall detection; abnormal number of people detection; people stay detection; privacy protection; height filtering Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos.
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
AI Coding	AI H.265; AI H.264 Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 1920 × 1080@(1–25/30 fps) third stream: 1920 × 1080@(1–25/30 fps)
Video Frame Rate	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p
Resolution	(1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	ABR;CBR;VBR H.264: 3 kbps–8192 kbps
Video Bit Rate	H.265: 3 kbps–8192 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Smart Illumination	Yes
Defog
Privacy Masking	8 areas
Audio
Built-in MIC	Yes, built-in Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	detection; people gathering; parking detection; crossing warning line; warning area intrusion; running detection; abnormal number of people detection; fall detection; people approaching detection; violence detection; people stay detection
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; auto registration
Interoperability	ONVIF (Profile S; Profile G; Profile T); P2P; CGI
User/Host	20
Storage
Browser	Firefox: Firefox 50 and later Safari: Safari 10 and later
Management Software	Smart PSS Lite; DSS; DMSS
Mobile Client	iOS;Android Configuration encryption;Trusted execution;Session security;Digest;Security logs;WSSE;Account lockout;Security warning;syslog;Video
Cyber Security	encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification
Port
RS-485	1 (baud rate range: 1200 bps–115200 bps)
Audio Input	2 channels (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	2 channels in: wet contact, 5 mA 3–5 VDC
Alarm Output	2 channels out: wet contact, 300 mA 12VDC
Analog Output	1 channel (CVBS output: BNC) 12 VDC power output, max. current 165 mA, peak
Power Output	current 700 mA
Power
Power Supply	12 VDC/PoE (802.3af)/ePoE Basic: 5.9 W (12 VDC), 7 W (PoE);
Power Consumption	Max. (intelligence on + IR intensity + turn on the speaker+ power output): 10.8 W (12 VDC), 12.9 W (PoE)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Protection	IP67; IK10
Structure
Casing Material	Metal 204.0 mm × 78.0 mm × 61.6 mm (8.03" × 3.07" × 2.43")
Product Dimensions	(L × W × H)
Net Weight	0.82 kg (1.81 lb)
Gross Weight	1.14 kg (2.51 lb)
Ordering Information
Type	Model Description 4MP WizMind Dual-Lens Stereo DH-IPC-HDW8441X-BV-3D Analysis Network Camera
4MP Camera	4MP WizMind Dual-Lens Stereo IPC-HDW8441X-BV-3D Analysis Network Camera PFA156 Pole Mount Bracket
Accessories
(Optional)	PFB110W Ceiling Mount Bracket
Optional:
PFA156	PFB110W
Pole Mount Bracket	Ceiling Mount Bracket
