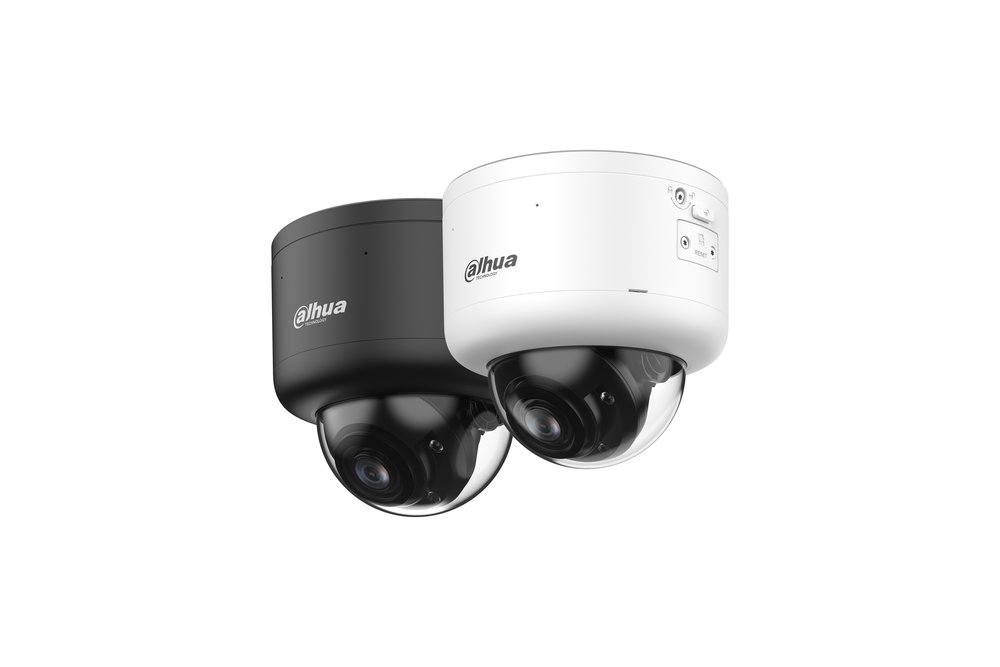

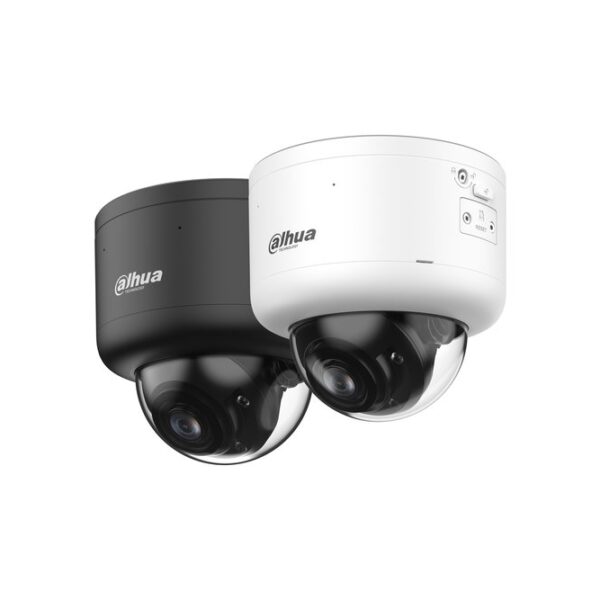

Telecamera dome IP AI PTRZ Xinghan WizMind WizColor con Smart Dual Light, deterrenza attiva e heater da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 25fps, AI coding, H.265+, ICR, ottica motorizzata 2.7~12 mm F1.2, luminosità 0.0006 lux F1.2, portata IR/warm light fino a 60/50 m, 1 RS485, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio con doppio microfono e speaker integrati, sirena e luci, 1 porta RJ-45 10/100 Mbps, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), face detection, people counting, heat map, metadati video, privacy mask 4 mosaici/8 blocchi, 3D NR, WDR 120 dB, slot micro SD card (fino a 1 TB), alimentazione 12 Vdc/PoE+/ePoE <24.2 W
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.0006 lux@F1.2(Color,30IRE) |
| Min. Illumination | 0.0003 lux@F1.2(B/W,30IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB Up to 60 m (196.85 ft) (IR) |
| Illumination Distance | Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) Pan: 0°–355° Tilt: 0°–80° |
| Angle Adjustment | Rotation: 0°–355° *Remote adjustment (Max. 1000 cycles) |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ16 |
| Focal Length | 2.7 mm-12 mm |
| Max. Aperture | F1.2 |
| Field of View | H: 98°–48°; V: 52°–27°; D: 117°–55° |
| Iris Control | Auto |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.16 m (0.53 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard syste m (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | animal and motor vehicles, and search through live and recorded videos to quickly locate targets. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 |
| Face Detection | attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting |
| People Counting | report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle |
| Video Metadata | attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) AI H.265; AI H.264 |
| AI Coding | *Includes smart codec technology, Smart H.265+ and Smart H.264+ Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) |
| Video Frame Rate | Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 4 streams 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960× 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR H.264: 3 kbps–16384 kbps |
| Video Bit Rate | H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | |
| Image Rotation | 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | |
| Browser | Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Heater (Window Heating) | window to keep images clear Warm light warning |
| Light Warning | Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low Offers 11 sound alarms and supports importing 10 custom sound alarms. |
| Sound Warning | Sound: 0–100 Play times can be set from 1 to 10. |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) 2 channels in: supports wet contact connection (max |
| Alarm Input | load 5 mA 3–5 VDC); supports dry contact connection 2 channels out: dry contact, max load 1,000 mA 30 |
| Alarm Output | VDC/500 mA 50 VAC 12 VDC power output, max. current 165 mA, peak |
| Power Output | current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 5.3 W (12 VDC); 6.4 W (PoE) Max. (IR on + siren and light active deterrence + |
| Power Consumption | intelliegece on + window heating): 21.3 W (12 VDC); 24.2 W (PoE) Heating: 2.1 W (12 VDC); 2.4 W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 Basic Protection *The products are designed for general use and are |
| Anti-corrosion Level | applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 150 mm × Φ159 mm (5.91" × Φ6.27") |
| Net Weight | 1.4 kg (3.09 lb) |
| Gross Weight | 1.9 kg (4.19 lb) |
| Ordering Information | |
| Type | Model Description 8MP WizColor Vari-focal DH-IPC-HDBW5859Z-ZHE- |
| IP CAMERA | Dome WizMind Network PV-PRO |
| Camera | |
| Accessories (Optional) | DH-PFA150 Pole Mount Bracket DH-PFA156 Pole Mount Bracket DH-PFB211W Wall Mount Bracket DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/1TB MicroSD Card |
| Accessories | |
| Optional: | DH-PFA101 DH-PFB302S |
| Ceiling Mount Bracket | Mount Adapter Wall Mount Bracket |
| DH-PFA151 | G3416GW DH-PFA150 |
| Corner Mount Bracket | G3/4" Water Joint Pole Mount Bracket |
| DH-PFA156 | DH-PFB211W DH-PFM320D-EN |
| Pole Mount Bracket | Wall Mount Bracket DC12V2A power adapter |
| PFM900-E | DHI-TF-P100/1TB |
| Integrated Mount Tester | MicroSD Card 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
