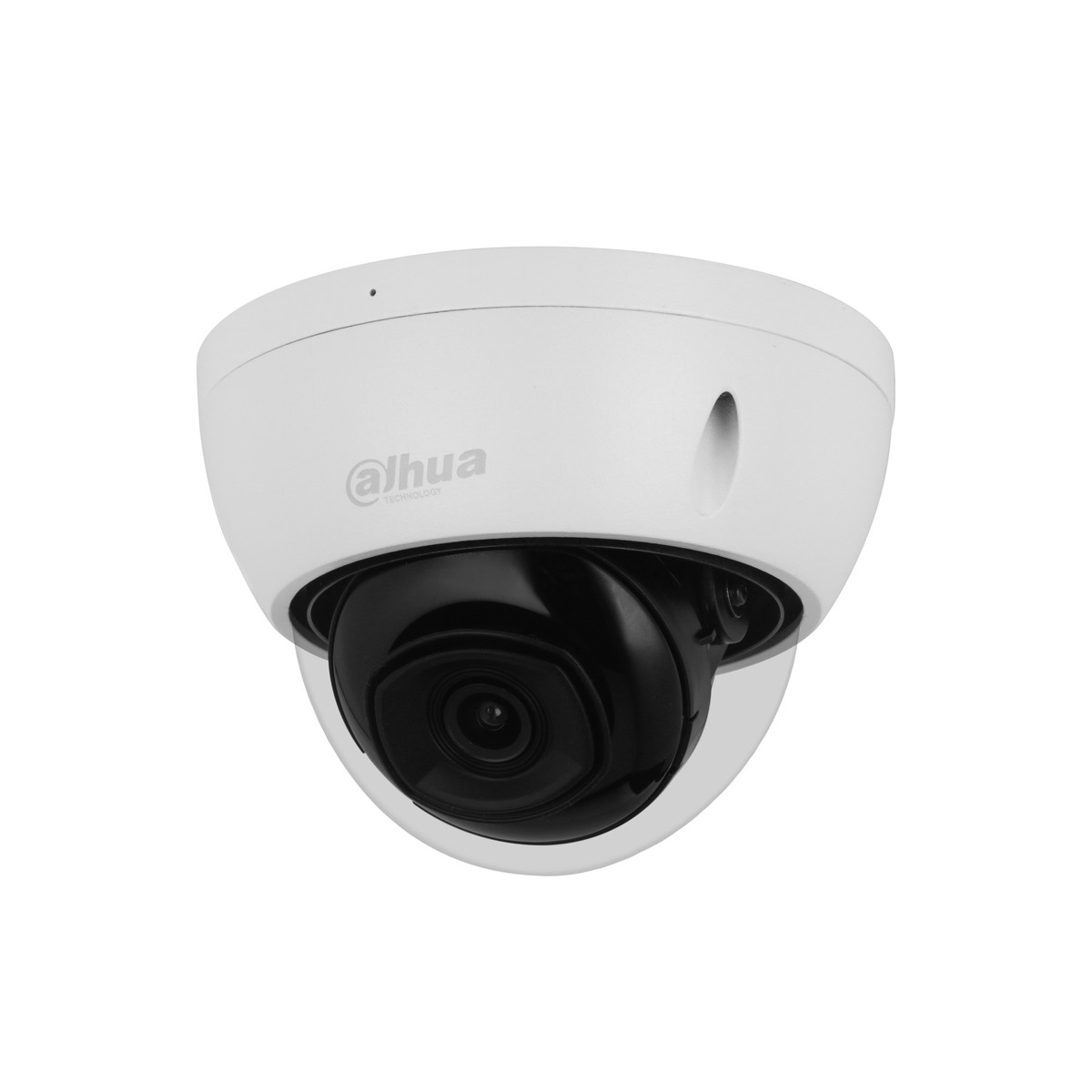

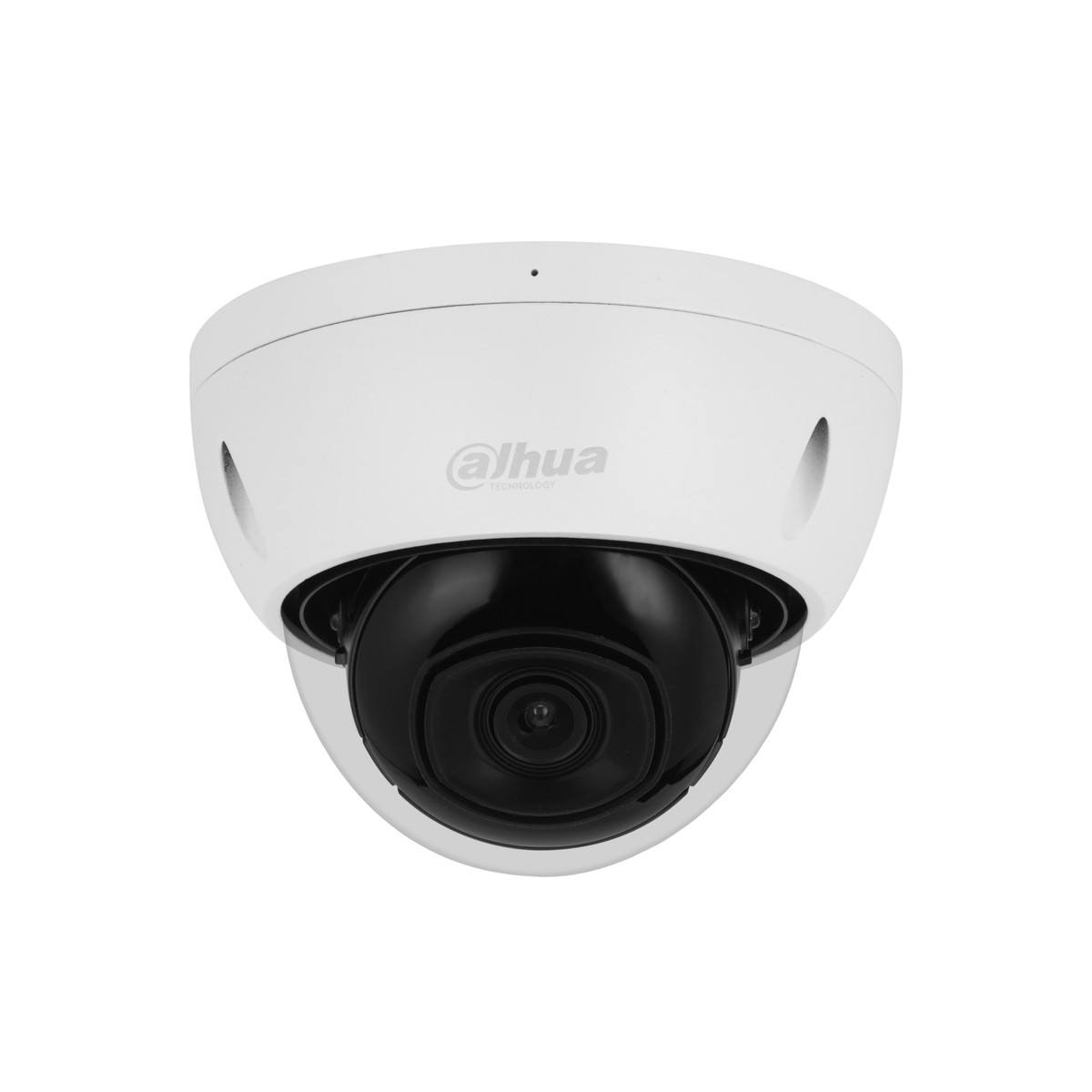

Telecamera dome IP AI WizSense da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/2.9″, risoluzione 4 MP a 20fps (2560×1440 a 25/30fps), H.265+, ottica fissa 3.6 mm F1.6 (H 84°), luminosità 0.006 lux F1.6 (0 lux con IR acceso), portata IR fino a 30 m, microfono integrato, IVS (protezione perimetrale con classificazione persone/veicoli), SMD Plus, ROI, WDR, 3D NR, HLC, BLC, micro SD card (256 GB), alimentazione 12 Vdc/PoE
| Functions | |
| Smart Codec | WDR |
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.006 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | up to 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 3 (IR LED) Pan: 0°–355° |
| Pan/Tilt/Rotation Range | Tilt: 0°–65° Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8 mm: H: 102°; V: 54°; D: 121° |
| Field of View | 3.6 mm: H: 84°; V: 42°; D: 101° |
| Iris Control | Fixed 2.8 mm: 1.1 m (2.30 ft) |
| Close Focus Distance | 3.6 mm: 1.7 m (4.27 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human) Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 |
| Resolution | × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–6144 kbps |
| Video Bit Rate | H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Manual;Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm | |
| Alarm Event | detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | |
| Browser | IE; Chrome; Firefox |
| Management Software | DSS; DMSS |
| Mobile Client | iOS; Android Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; |
| Security | syslog; HTTPS;802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Power | |
| Power Supply | 12 VDC/PoE Basic: 2.3 W (12 VDC); 2.9 W (PoE) |
| Power Consumption | Max. (ICR + H.265 + WDR + max. Illumination + intelligence on): 5 W (12 VDC); 6 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67; IK10 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 81.0 mm × Φ109.9 mm (3.19"× Φ4.33") |
| Net Weight | 0.34 kg (0.75 lb) |
| Gross Weight | 0.49 kg (1.08 lb) |
| Ordering Information | |
| Type | Model Description 4MP IR Fixed-focal Dome |
| 4MP Camera | DH-IPC-HDBW2441E-S WizSense Network Camera PFA136 Junction Box PFB203W Wall Mount Bracket PFA109 Mount Adapter PFB220C Ceiling Mount Bracket PFA152-E Pole Mount Bracket |
| Accessories | |
| (Optional) | PFB305W Wall Mount Bracket PFA151 Corner Mount Bracket PFM321D 12 VDC 1 A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFA136 | PFB203W PFA109 |
| Junction | Wall Mount Mount |
| Box | Bracket Adapter PFA152-E |
| PFB220C | PFA150 Pole Mount |
| Ceiling Mount | Pole Mount Bracket |
| Bracket | Bracket |
| PFB305W | PFA151 PFM321D |
| Wall Mount | Corner Mount 12 VDC 1A |
| Bracket | Bracket Power Adapter TF-P100 |
| PFM900-E | MicroSD |
| Integrated | Memory Card |
