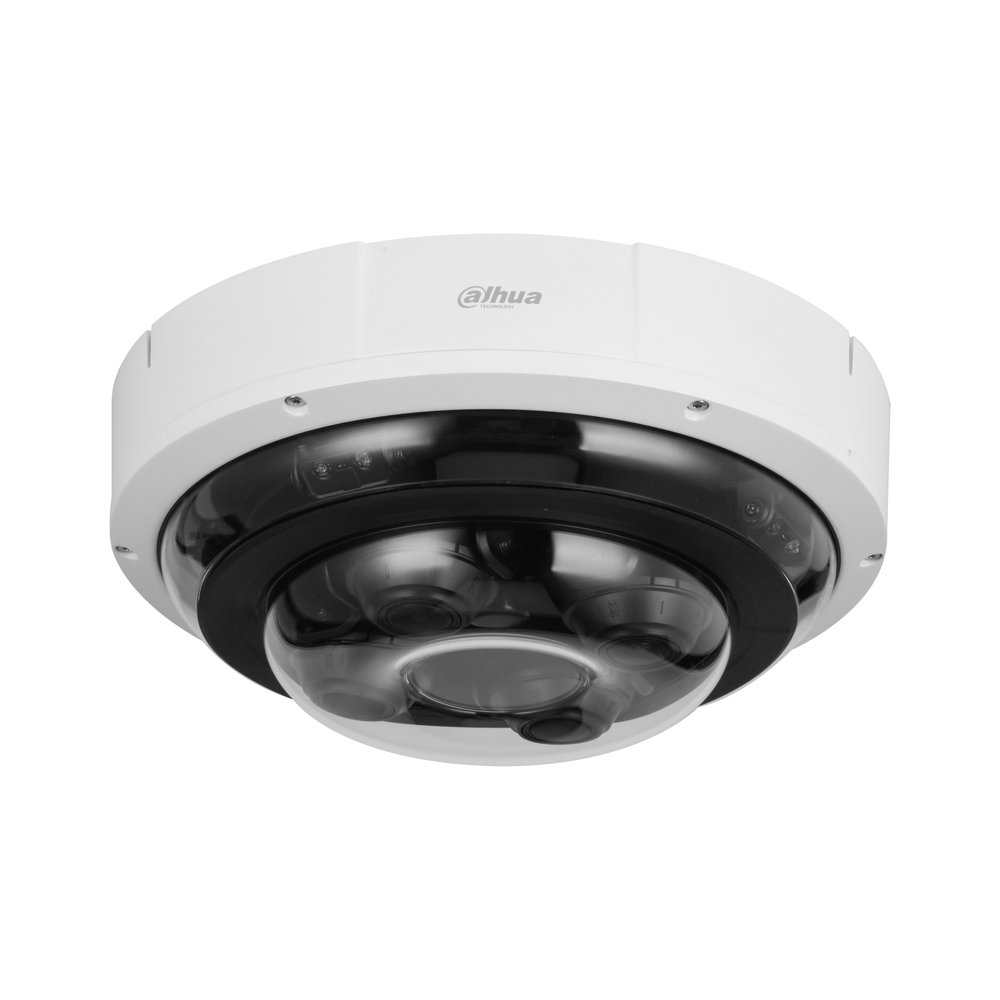

Dome IP AI 360° 4×5 MP zoom 4x IR

Name: Dome IP AI 360° 4x5 MP zoom 4x IR
Brand: Dahua
SKU: IPC-PDBW82041-B360-S2
Price: 1606.74 EUR
Availability: BackOrder

Dahua

COD: IPC-PDBW82041-B360-S2 Categorie: Telecamere IP, Videosorveglianza Tag: 5MP

1.606,74 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 3.213,48 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera dome panoramica multi-sensore no-splicing IP AI WizMind da interno/esterno IP67 antivandalo IK10, 4 sensori CMOS progressivi 1/2.7", risoluzione 5 MP a 25fps, H.265+, ICR, ottica motorizzata f14 2.8~12 mm ƒ1.7, luminosità 0.005 lux ƒ1.7 (0 con IR On), portata IR fino a 30 m, 1 porta LAN 10/100/1000 Mbps, 3 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta RS485, privacy mask 8 aree, 3D NR, oggetto abbandonato/mancante, IVS (protezione perimetrale), face detection, people counting, micro SD card (256 GB), alimentazione 12 Vdc/PoE+ <24.7 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	Channel 1–4: 1/2.7" CMOS
Max. Resolution	Channel 1–4: 2592 (H) × 1944 (V)
ROM	8 GB
RAM	4 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s Channel 1–4: 0.005 lux@F1.7 (Color,30 IRE);
Min. Illumination	0.0005 lux@F1.7 (B/W,30 IRE); 0 lux (Illuminator on)
S/N Ratio	>56dB
Illumination Distance	30 m (98.43 ft) (IR LED)
Illuminator On/Off	Auto;Manual
Illuminator Number	8 (IR LED) Channel 1–4: Pan: 0°–360°
Pan/Tilt/Rotation Range	Tilt: 0°–75° Rotation: 0°–355°
Lens
Lens Type	Channel 1–4: Motorized vari-focal
Lens Mount	Channel 1–4: φ14
Focal Length	Channel 1–4: 2.8 mm–12 mm
Max. Aperture	Channel 1–4: F1.7
Field of View	Channel 1–4: H: 100°–42°; V: 74°–32°; D: 133°–53°
Iris Control	Fixed
Close Focus Distance	Channel 1–4: 0.8 m (2.62 ft) Detect Observe Recognize Identify 66 m–140.4 26.4 m–56.1 13.2 m–28.8 6.6 m–14 m m m m (21.65 (216.54 (86.61 ft– (43.31 ft–45.93 ft) ft–460.63 ft) 184.06 ft) ft–94.49 ft)
DORI Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool.
Smart Event
IVS	Abandoned object; missing object
Intelligence
IVS (Perimeter	the classification and accurate detection of vehicle and
Protection)	human); loitering detection; people gathering; parking detection
Face Detection	expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue
People Counting	management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management. Work together with Smart NVR to perform refine intelligent
Smart Search	search, event extraction and merging to event videos.
Video
Video Compression	the sub stream)
Smart Codec	Smart H.265+; Smart H.264+ Channel 1: Main stream: 2592 × 1944@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: Single Stream mode:1920 × 1080@(1–25/30 fps)
Video Frame Rate	Flex Stream mode:3296 × 2472@(1–25/30 fps) Channel 2-4: Main stream: 2592 × 1944@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream:1920 × 1080@(1–25/30 fps)
Stream Capability	3 streams Single Stream: 5M (2592 × 1944); 2560 × 1440; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240);
Resolution	Flex Stream: 8M (3296 × 2472); 5M (2592 × 1944); UXGA (1600 × 1200); 1080p (1920 × 1080); 1.3M (1280 × 960); D1 (704 × 576/704 × 480); VGA (640 × 480; CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR H.264: 32 kbps–17152kbps
Video Bit Rate	H.265: 12 kbps–10240 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto;Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Defog
Image Rotation	Yes
Mirror	Yes
Privacy Masking	8 areas
Audio
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event	people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay detection; abnormal number of people detection; people counting; people stay detection; security exception
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
Network Protocol	SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host	20
Storage
Browser	Chrome: Chrome 42 and later Firefox: Firefox 48.0.2 and later
Management Software	Smart PSS; DSS; DMSS Trusted execution; Digest; security logs; WSSE; Account lockout; syslog; 802.1x; IP/MAC filtering; HTTPS; trusted
Security	upgrade; trusted boot; generation and importing of X.509 certification
Port
RS-485	1 (baud rate range:1200 bps–115200 bps)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	3 channels in: 5 mA 3–5 VDC
Alarm Output	2 channels out: 300 mA 12 VDC
Power
Power Supply	12 VDC/PoE+( 802.3at ) Basic power consumption: 7.4 W (12 VDC); 9.3W (PoE)
Power Consumption	Max. power consumption (basic + WDR + IR intensity+ lens switch+ power output): 21.3W (12 VDC); 24.7 W (PoE+)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Protection	IP67; IK10; anti-corrosion protection (optional)
Anti-corrosion Level	with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure.
Structure
Casing Material	Metal + plastic
Product Dimensions	111.3 mm × Φ286.1 mm (4.38"× Φ11.26")
Net Weight	2.75 kg (6.06 lb)
Gross Weight	4.5 kg (9.92 lb)
Ordering Information
Type	Model Description 4 × 5 MP 4-Directional Panoramic DH-IPC-PDBW82041-B360-S2 Dome Wizmind Network Camera
Accessories
(Optional)	PFM320D 12 VDC 2 A Power Adapter PFM900-E Integrated Mount Tester TF-P100 Memory Card
Optional:
PFB303W	Mount Ceiling Mount
Wall Mount	Adapter Bracket
Bracket	PFM320D
PFA108	PFM900-E 12 VDC 2 A
Adapter Plate	Integrated Power Adapter Mount Tester
